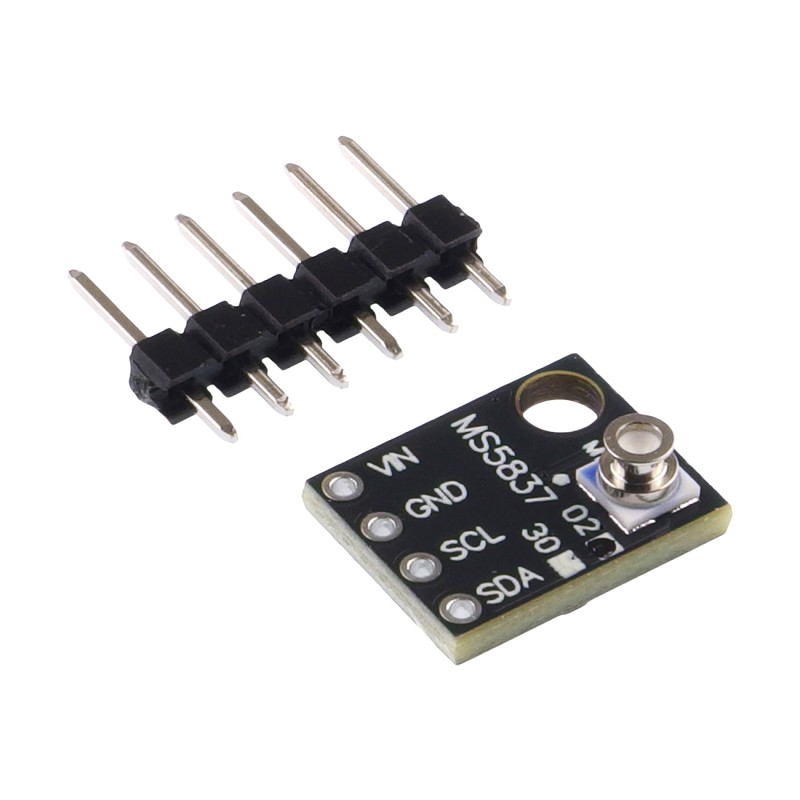

GY-MS5837 - module with MS5837 pressure sensor
ID: 587688
5906623464708
zł49.90
Tax included
zł40.57 tax excl.
Module with waterproof barometer and MS5837 temperature sensor. It enables pressure measurement in the range from 300 to 1200 hPa and communicates via I2C
Description
Module with waterproof barometer MS5837. It enables pressure measurement in the range from 300 to 1200 hPa with an accuracy of ± 0.5 hPa and temperature in the range from -20 to 85°C with an accuracy of ± 2°C. The sensing element is housed in a ceramic package and encased in a waterproof gel that prevents water from interfering with the readings. The MS5837 has 24-bit resolution. It can cooperate with systems with a working voltage of 3.3 V, and communication is via the I2C interface.
Features
- Absolute pressure measuring range from 300 to 1200 hPa
- Pressure measurement accuracy: ± 0.5 hPa
- 24 bit pressure data output
- Temperature measurement in the range from -20 to 85°C
- Temperature measurement accuracy ± 2°C
- I2C interface
- Waterproof sensor (connector is not protected against moisture)
- Voltage: 3.3V
Kit contains
- GY-MS5837 module
- Male goldpin straight 4-pin connector
587688
Data sheet
- Interface
- I2C
- Type of sensor
- inny
- Power supply voltage
- 3,3 V
- Sensor type
- Ciśnienia atmosferycznego
