New products
New products
zł125.30 tax excl.
LPS28DFW absolute pressure sensor module. The chip features a wide measurement range of 260 to 1260 hPa or 260 to 4060 hPa and a high accuracy of 0.5 hPa. It communicates via an I2C interface. SparkFun SEN-21222
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description

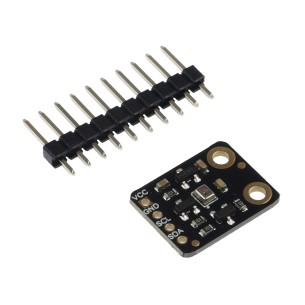

LPS28DFW absolute pressure sensor module. The chip features a wide measurement range of 260 to 1260 hPa or 260 to 4060 hPa and a high accuracy of 0.5 hPa. It communicates via the I2C bus (Qwiic connector) and is powered by 1.7 V to 3.6 V. The measurement element has a waterproof housing, making it ideal for pressure measurement applications where the sensor is exposed to or immersed in water. Full documentation is available on the product page.
Features
- LPS28DFW sensor in waterproof housing
- Measurement range of absolute pressure from 260 to 1260 hPa or from 260 to 4060 hPa
- Measurement accuracy: 0.5 hPa
- Internal 16-bit temperature sensor
- Measurement frequency: 1 to 200 Hz
- I2C communication
- I2C address: 0x5D, 0x5C (default)
- 2 x Qwiic connector
- FIFO queue, data-ready flag, configurable threshold
- Power supply: 1.7V to 3.6V
- Current consumption: up to 32.2 uA (single measurement mode), 783.8 uA (continuous measurement mode)
- Dimensions: 19,05 x 7,62 mm
Data sheet
- Interface
- I2C
- Type of sensor
- LPS28DFW
- Power supply voltage
- 1.7..3.6V
- Sensor type
- Ciśnienia atmosferycznego
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
