Qwiic Absolute Digital Barometer - LPS28DFW pressure sensor module
ID: 1183278
5906623418480
zł152.13
Tax included
zł123.68 tax excl.
LPS28DFW absolute pressure sensor module. The chip features a wide measurement range of 260 to 1260 hPa or 260 to 4060 hPa and a high accuracy of 0.5 hPa. It communicates via an I2C interface. SparkFun SEN-21221
Description
LPS28DFW absolute pressure sensor module. The chip features a wide measurement range of 260 to 1260 hPa or 260 to 4060 hPa and a high accuracy of 0.5 hPa. It communicates via the I2C bus (Qwiic connector) and is powered by 1.7 V to 3.6 V. The measurement element has a waterproof housing, making it ideal for pressure measurement applications where the sensor is exposed to or immersed in water. Full documentation is available on the product page.
Features
- LPS28DFW sensor in waterproof housing
- Measurement range of absolute pressure from 260 to 1260 hPa or from 260 to 4060 hPa
- Measurement accuracy: 0.5 hPa
- Internal 16-bit temperature sensor
- Measurement frequency: 1 to 200 Hz
- I2C communication
- I2C address: 0x5D, 0x5C (default)
- 2 x Qwiic connector
- FIFO queue, data-ready flag, configurable threshold
- Power supply: 1.7V to 3.6V
- Current consumption: up to 32.2 uA (single measurement mode), 783.8 uA (continuous measurement mode)
1183278
Data sheet
- Interface
- I2C
- Type of sensor
- LPS28DFW
- Power supply voltage
- 1.7..3.6V
- Sensor type
- Ciśnienia atmosferycznego
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
No product available!
Available
Flexible 4-core cable, 50 mm long, terminated on both sides with a Qwiic plug. Sparkfun PRT-17260
zł9.02
24h
Available quantity: 6
Available
Flexible 4-core cable, 200 mm long, terminated on both sides with a Qwiic plug. Sparkfun PRT-17258
zł12.96
24h
Available quantity: 10
Available
Other products in the same category (16)
Atmospheric pressure sensor, capable of measuring up to 4060 hPa, which allows it to be used even in underwater projects to a depth of about 40 meters. Thanks to high precision (±0.5 hPa) and a sampling rate of up to 200 Hz, it is also ideal for dynamic measurements of altitude and pressure in atmospheric conditions. The built-in metal port allows remote pressure measurement through a tube, and compatibility with the STEMMA QT system and ready-made libraries for Arduino and CircuitPython make integration with microcontrollers quick and easy. Adafruit 6067
zł65.69
24h
Available quantity: 2
Available
Module with pressure and temperature sensor BMP280. The board is equipped with a Grove connector and communicates via the I2C or SPI interface. Seeed Studio 101020192
zł60.63
24h
Available quantity: 2
Available
Module with digital barometer BMP581. It enables pressure measurement in the range from 300 to 1250 hPa with an accuracy of ± 5 Pa and communicates via I2C. SparkFun SEN-20171
zł120.95
24h
Available quantity: 1
Available
Module with BME280 environmental sensor. It allows you to measure temperature, humidity and pressure. The sensor is equipped with two communication interfaces: SPI and I2C. SparkFun SEN-13905
zł112.74
24h
Available quantity: 2
Available
Pressure sensor module with I2C interface (MPL115A2)
zł44.90
24h
Available quantity: 19
Available
KAmodMPL3115A2 is a module with an atmospheric pressure sensor MPL3115A2 from NXP. Sensor allows to make a measurement in the range of 200...1100hPa (20...110kPa). Communication with the sensor is realized via the I2C interface. The board is equipped with the Pmod I2C standard connector and the KAMAMI connector. Kamami KAmodMPL3115A2
zł27.90
24h
Available quantity: 202
Available

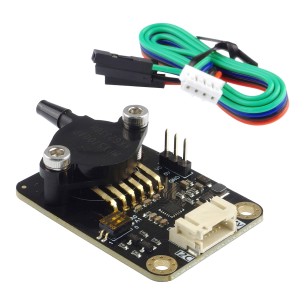

The MPX5700AP air pressure sensor with a measuring range from 15 to 700 kPa. It communicates via the I2C interface. DFRobot SEN0456
