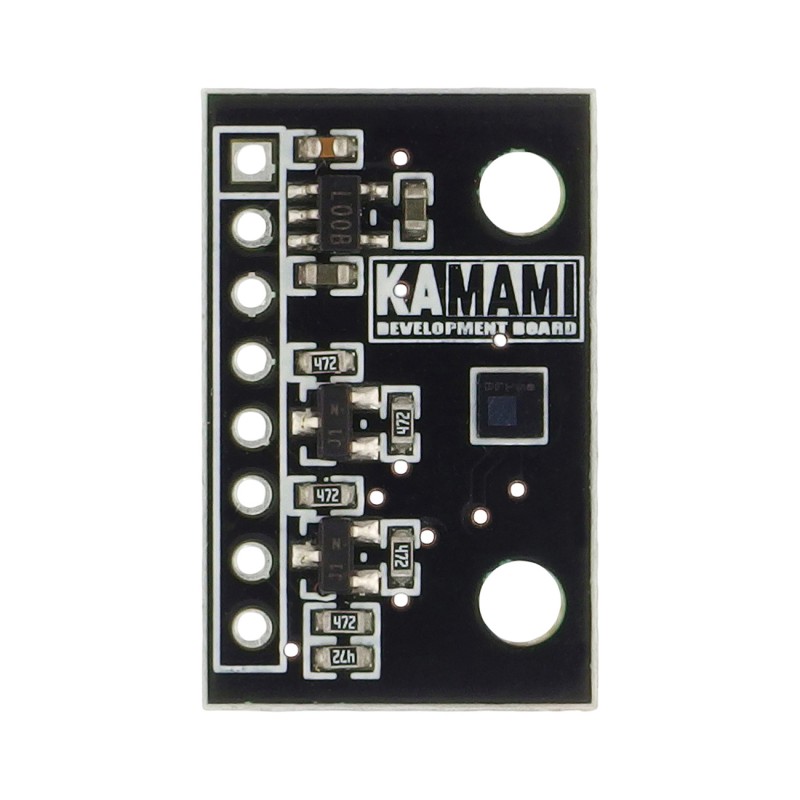

KAmodLPS25HB - an atmospheric pressure sensor module with LPS25HB chip
ID: 557728
5906623432493
zł40.90
Tax included
zł33.25 tax excl.
KAmodLPS25HB is a module that allows the measurement of atmospheric pressure in the range of 260-1260hPa with a resolution of 0.01hPa, and thanks to the embedded regulator and voltage translator levels, it can be successfully used in systems supplied with a voltage of 2.5 - 5.5 V.
Description
KAmodLPS25HB is a module that bases on absolute pressure sensors LPS25HB. It is characterized by i.a. wide range and high resolution of measurement. Communication with module can be realized by I2C or SPI interfaces. Thanks to embedded voltage regulator and logic level translator on SDA and SCL lines, module can be used in system with variousof bus voltage standard.
Features
- LPS25HB chip (MEMS pressure sensor) from STMicroelectronics
- Measurement range: from 260 to 1260mbar of absolute pressure (260 - 1260hPa)
- Measurement resolution: 0,01hPa
- Power supply voltage: 2.5V - 5.5V
- Power consumption: 2.5mA
- Measurement data rate (ODR): 1-25[Hz]
- ADC converter resolution: 24 bits
- Communication interface: SPI / I2C
- Embedded voltage regulator and logic level translator (SDA and SCL lines)
- Interrupt output / data ready output
- Place for soldering of pin header
- Mounting holes 3mm
- Module size (without connector): 24mm x 15mm x 3mm
Application example
Kit content
- Assembled module board
- Male straight pin connector (8 pin) for soldering
- Male goldpin connector angled (8 pin) for soldering
557728
Data sheet
- Interface
- SPI/I2C
- Type of sensor
- LPS25
- Power supply voltage
- 2,5 - 5,5 V
- Sensor type
- Ciśnienia atmosferycznego
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
