BME280 sensor module (pressure, temperature, humidity) - Waveshare 15231
ID: 1180746
5906623422913
zł42.00
Tax included
zł34.15 tax excl.
Module with pressure, temperature and humidity sensor BME280. It allows to read the atmospheric pressure in the range from 300 to 1100 hPa and communicates via the I2C or SPI interface. Waveshare BME280 Environmental Sensor
Description
Module with pressure, temperature and humidity sensor BME280. It allows you to read atmospheric pressure in the range from 300 to 1100 hPa with an accuracy of ± 1 hPa, temperature in the range from -40 to 85℃ with an accuracy of ± 1°C and humidity with an accuracy of ± 3%. The module communicates via the I2C or SPI interface. It has a built-in voltage level converter, so it can work with 3.3V or 5V systems. It is an ideal solution for home temperature measurement, as well as for measuring altitude when flying at high altitudes. Documentation with examples is available on the product page.
Features
- Pressure measurement: from 300 to 1100 hPa (resolution 0.18 Pa, accuracy ± 1hPa)
- Temperature measurement: -40 to 85℃ (resolution 0.01°C, accuracy ± 1°C)
- Humidity measuring range: 0 to 100% RH (resolution 0.008% RH, accuracy ± 2% RH)
- Converter of voltage levels 3.3/5V
- Supply voltage: from 3.3 V to 5 V
- I2C or SPI interface
- Dimensions: 27 x 20 mm
Kit contains
- BME280 Environmental Sensor module
- JST PH2.0 6-pin cable, 20 cm
1180746
Data sheet
- Interface
- SPI/I2C
- Type of sensor
- BME280
- Power supply voltage
- 3,3 V/5 V
- Sensor type
- Ciśnienia atmosferycznego
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
Arduino Uno Rev3 is a popular board with Atmel ATmega328 microcontroller from the AVR family, there are 14 I / O lines, 6 PWM channels and 6 analog inputs. The additional ATmega16U4 microcontroller realizes communication via the USB interface. Arduino A000066
zł108.42
24h
Available quantity: 55
Available
STM32 Nucleo development board for STM32 F4 series - with STM32F401RE MCU, 512KB flash memory, STM, RoHS
zł74.60
24h
Available quantity: 1
Available

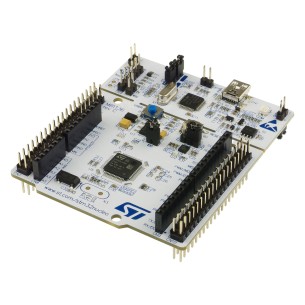

STM32 Nucleo-64 development board with STM32L476RGT6 MCU, supports Arduino and ST morpho connectivity
