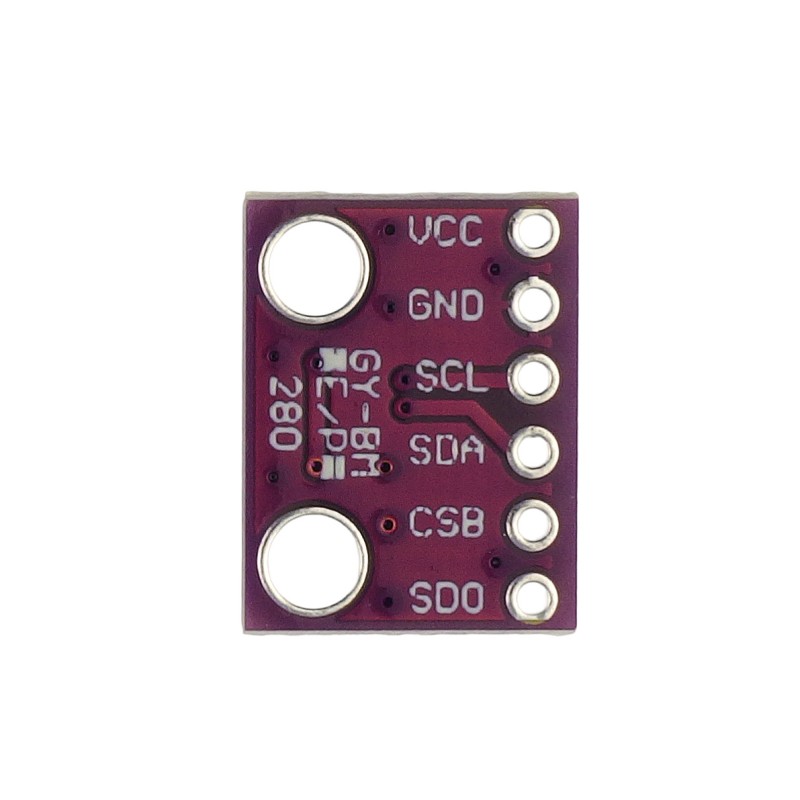

GY-BMP280 - module with Bosch MEMS BMP280 pressure sensor
zł4.80 tax excl.
The GY-BMP280 is an atmospheric pressure sensor module. It allows measurement in the range of 300 ... 1100 hPa with an accuracy of 1 hPa. The sensor uses I2C or SPI bus
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
The GY-BMP280 is an atmospheric pressure sensor module. It allows measurement in the range of 300-1100 hPa with an accuracy of 1 hPa. The sensor uses I2C or SPI bus.
properties
- Atmospheric pressure sensor BMP280
- Pressure measurement range: 300-1100hPa
- Measurement accuracy (in the range of 950-1050 hPa): 1hPa
- Signals led to the 1x6 connector (2.54mm pitch)
- Interface: SPI or I2C
- Two mounting holes with a diameter of 3mm
- Power supply: 3.3V
- Power consumption: <2mA
- Working temperature range: -40 ~ 85 ° C
- Module dimensions: 16 x 12 x 3 mm
Included
- The GY-BMP280 module
- 6-pin connectors (male straight) for self-soldering
Data sheet
- Interface
- SPI/I2C
- Type of sensor
- BMP280
- Power supply voltage
- 3,3 V
- Sensor type
- Ciśnienia atmosferycznego
