Qwiic Micro Pressure Sensor - module with BMP384 pressure sensor
ID: 1181127
5906623419364
zł91.00
Tax included
zł73.98 tax excl.
Module with digital barometer BMP384. It enables pressure measurement in the range from 300 to 1250 hPa with 24-bit resolution and communicates via I2C. SparkFun SEN-19833
Description
Module with digital barometer BMP384. It enables pressure measurement in the range from 300 to 1250 hPa with an accuracy of ±9 Pa, which in relation to height gives an accuracy of 0.75 m. The system also allows temperature measurement in the range from -40 ℃ to 85 ℃. The BMP384 uses Bosch's piezo resistive pressure sensor technology with high accuracy, low power consumption and high resistance to electromagnetic interference. It can work with systems with a working voltage of 3.3 V, and communication is via the I2C interface (Qwiic connector). Full documentation with examples is available on the product page.
Features
- Pressure measurement range: 300 to 1250 hPa
- Relative accuracy: ± 9 Pa (± 0.75 m at 900-1100 hPa, 25 ℃ -40 ℃)
- Absolute accuracy: ± 50 Pa (0 ℃ -65 ℃ at 300-1100 hPa）
- Temperature coefficient: ± 1 Pa/K (25 ℃ -40 ℃ at 900 hPa)
- Temperature measurement range: -40 ℃ to 85 ℃
- Interface: I2C
- I2C address: 0x77 (default), 0x76
- Voltage: 1.65 V to 3.6 V
- Current consumption: 700 uA (measurement), 3.4 uA (Ultra Power Mode), 2 uA (Sleep Mode)
- Qwiic connector
1181127
Data sheet
- Interface
- I2C
- Type of sensor
- BMP384
- Power supply voltage
- 1.65..3.6V
- Sensor type
- Ciśnienia atmosferycznego
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
No product available!
Flexible 4-core cable, 50 mm long, terminated on both sides with a Qwiic plug. Sparkfun PRT-17260
zł8.99
Delivery date unknown
No product available!
Flexible 4-core cable, 100 mm long, terminated on both sides with a Qwiic plug. Sparkfun PRT-17259
zł10.81
24h
Available quantity: 2
Available
Module with digital barometer BMP384. It enables pressure measurement in the range from 300 to 1250 hPa with 24-bit resolution and communicates via I2C or SPI. SparkFun SEN-19662
zł72.07
24h
Available quantity: 1
Available
Module with digital barometer BMP581. It enables pressure measurement in the range from 300 to 1250 hPa with an accuracy of ± 5 Pa and communicates via I2C or SPI. SparkFun SEN-20170
zł96.35
24h
Available quantity: 2
Available
Other products in the same category (16)
Module with a BME680 sensor that allows you to measure temperature, humidity, pressure and gas detection. The board is equipped with a Grove connector and communicates via I2C and SPI. Seeed Studio 101020513
zł110.07
24h
Available quantity: 3
Available

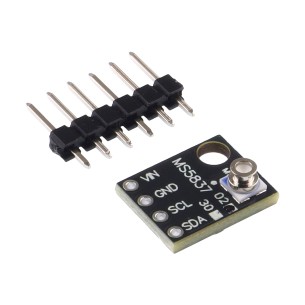

Module with waterproof barometer and MS5837 temperature sensor. It enables pressure measurement in the range from 300 to 1200 hPa and communicates via I2C
