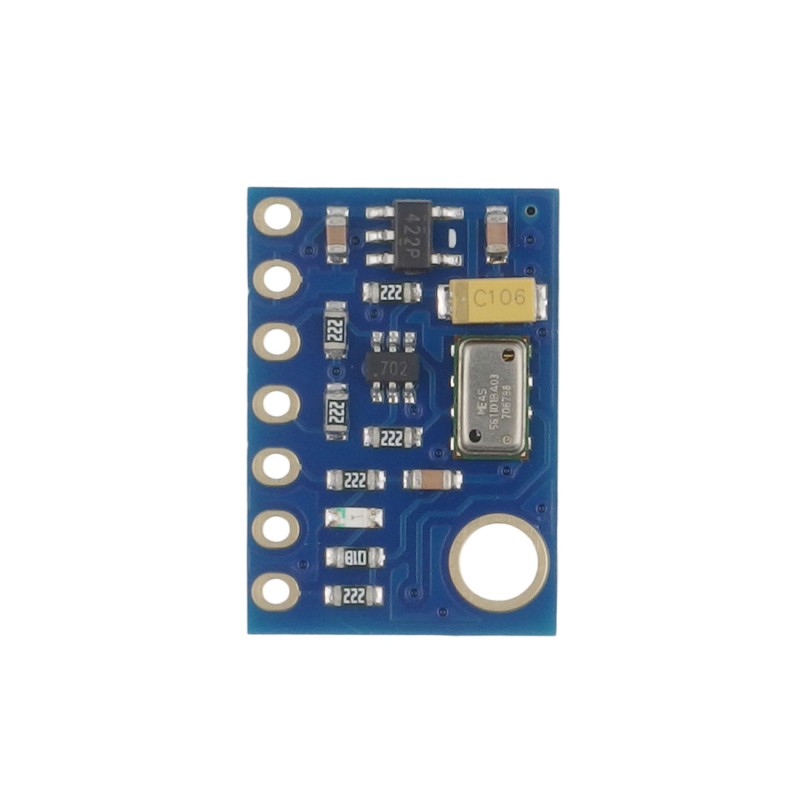

GY-63 - module with MS5611 atmospheric pressure sensor
ID: 1188494
5906623454136
zł28.71
Tax included
zł23.34 tax excl.
Module with the MS5611 sensor, allowing measurement of atmospheric pressure. The module has a built-in 3.3 V voltage stabilizer. It comes with a connector for self-assembly. modGY-63
Description
The GY-63 module with the MS5611 sensor is a solution enabling precise measurement of atmospheric pressure. Equipped with a built-in 3.3V voltage stabilizer, this module offers not only measurement accuracy but also operational stability, making it an ideal tool for applications requiring precise atmospheric data. The MS5611 sensor enables communication with the target device via the I2C or SPI bus. Thanks to this versatility, the GY-63 module can be easily integrated with various microcontroller platforms or DSP systems, which makes it suitable for projects in the fields of meteorology, navigation and automation. The GY-63 model also includes practical pin connectors, which facilitates independent assembly and integration with other elements of the system.
Features
- MS5611 pressure sensor
- Communication bus: I2C or SPI
- Dimensions: 19 x 13 mm
- Weight: 5 g
Kit contains
- modGY-63 module
- Straight male connector 1x7
1188494
Data sheet
- Interface
- SPI/I2C
- Type of sensor
- MS5611
- Power supply voltage
- 3,3 - 5 V
- Sensor type
- Ciśnienia atmosferycznego
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
