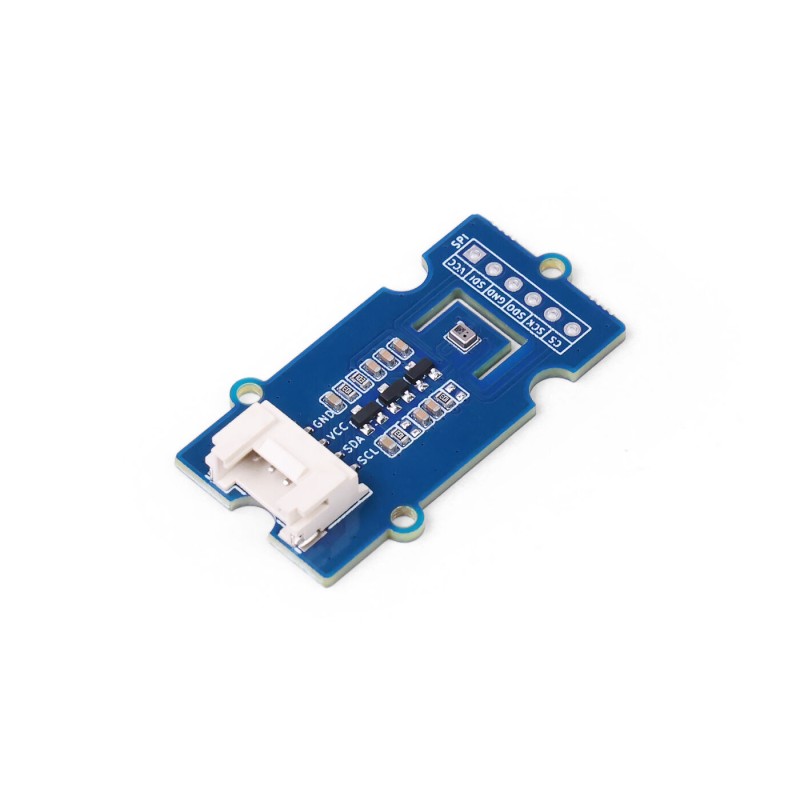

Grove Temperature and Barometer Sensor - module with temperature and pressure sensor SPA06-003
ID: 1198707
5902186305632
zł22.09
Tax included
zł17.96 tax excl.
Energy-saving environmental sensor, enabling precise measurement of temperature in the range from -40℃ to +85℃ and atmospheric pressure from 300 to 1100 hPa. Supports I2C and SPI interfaces, and thanks to the FIFO function allows to minimize energy consumption - even to 0.5 μA in standby mode. Compatible with Arduino, Raspberry Pi and Micro:bit, it is ideal for use in DIY projects, educational projects and weather stations. Seeed Studio 110992164
Description
The Grove – Temperature and Barometer Sensor (SPA06-003) is a precise and energy-efficient solution for measuring temperature and atmospheric pressure. The device supports both I2C and SPI interfaces, providing flexibility for integration with various platforms. With a pressure measurement accuracy of ±0.3 hPa and temperature accuracy of ±1℃, this sensor is well-suited for applications that require reliable environmental data. Its wide measurement ranges – -40℃ to +85℃ for temperature and 300 hPa to 1100 hPa for pressure – make it ideal for a variety of projects, from weather stations to environmental monitoring systems.
Thanks to the FIFO function, the processor can remain in sleep mode longer, significantly reducing power consumption and enabling a standby current as low as 0.5 μA. The module features a standard 4-pin Grove connector, ensuring convenient connection to popular platforms like Arduino, Raspberry Pi, or Micro:bit. The kit also includes a Grove cable, allowing for full plug-and-play installation. Additionally, the manufacturer provides a ready-to-use Arduino library, which simplifies quick startup and integration into DIY and educational projects.
Features
- Supply voltage: 3.3V
- Communication interfaces: I2C and SPI
- Default I2C address: 0x77 (optional 0x76)
- Pressure measurement range: 300–1100 hPa
- Absolute pressure measurement accuracy: ±0.3 hPa
- Temperature measurement range: -40℃ to +85℃
- Temperature accuracy: ±1℃
- Standby current: up to 0.5 μA (with FIFO)

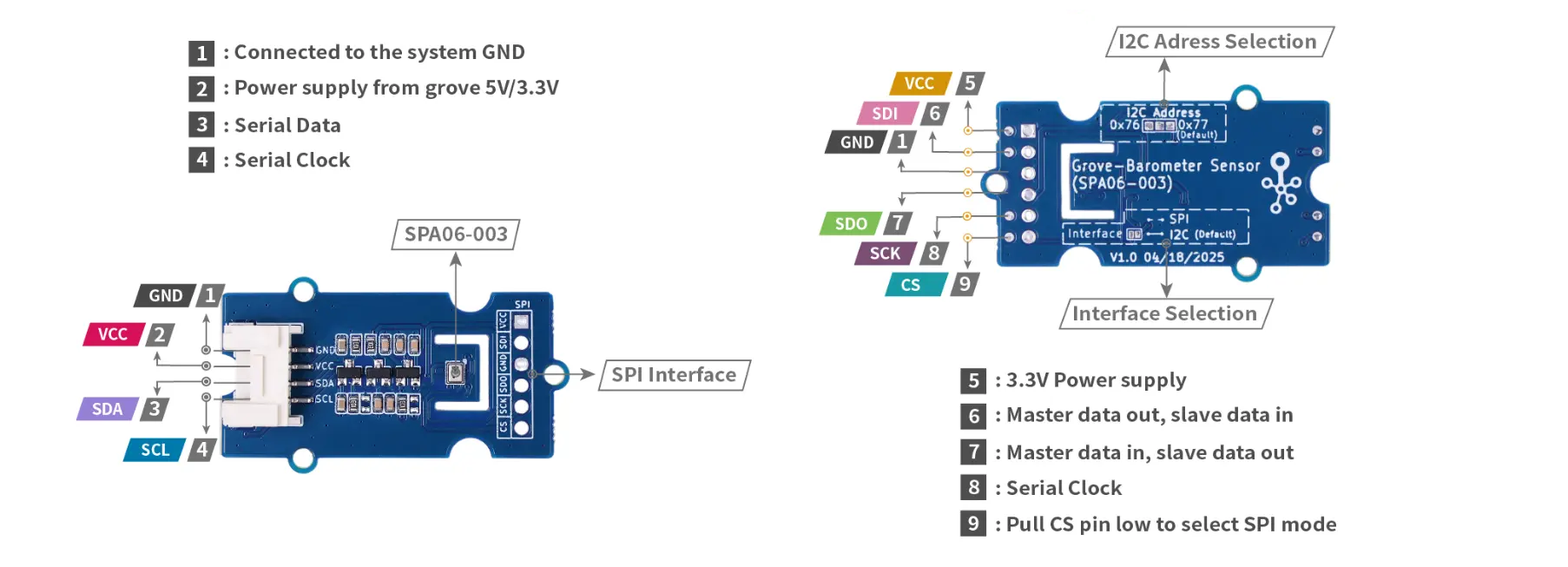

- 4-pin Grove connector
- Dimensions: 40 x 20 x 6.5 mm
Kit contains
- Grove – Temperature and Barometer Sensor (SPA06-003)
- Grove cable – 20 cm
1198707
Data sheet
- Interface
- SPI/I2C
- Type of sensor
- SHT45
- Power supply voltage
- 3,3 V
- Sensor type
- Pressures and temperatures
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
