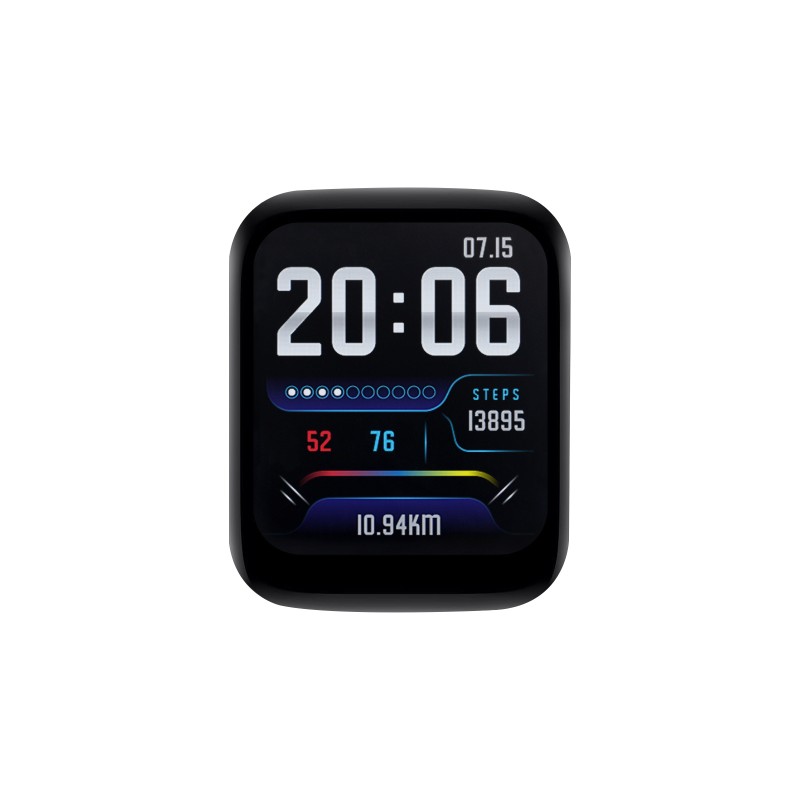

RP2040 development board with 1.69″ touch LCD 240×280 - Waveshare 28161
ID: 1197419
5902186307230
zł96.83
Tax included
zł78.72 tax excl.
RP2040-Touch-LCD-1.69 is a high-performance, integrated MCU board designed for interactive device developers. With a touch display, 6-axis sensor, RTC, and power management, it is suitable for HMI systems, mobile devices, data loggers, and IoT solutions. Support for MicroPython and Arduino facilitates rapid prototyping and deployment.
Description
RP2040-Touch-LCD-1.69 is a compact development board based on the Raspberry Pi RP2040 microcontroller, integrated with a 1.69-inch capacitive touch display with a resolution of 240×280. It includes a lithium battery charging management chip, a 6-axis sensor (accelerometer and gyroscope), an RTC, and a buzzer, making it an ideal platform for designing portable devices and HMI interfaces.
Features
- Dual-core Arm Cortex-M0+ processor up to 133 MHz
- 264 KB SRAM and 16 MB Flash memory (W25Q128JVSIQ)
- 1.69" color LCD with rounded corners, 240×280, 65K colors
- Capacitive touch support
- QMI8658 – 6-axis IMU sensor (accelerometer + gyroscope)
- RTC (PCF85063) with battery backup connector (supports rechargeable batteries only)
- 3.7 V lithium battery charging management (ETA6098) with MX1.25 2PIN connector
- USB Type-C connector with USB 1.1 support (host and device)
- Low-power modes supported
- Buzzer for audio output
- PWM button supporting multiple press types
- Programmable BOOT button and reset button (RST)
- Programming via drag-and-drop, and support for C/C++, MicroPython, Arduino
1197419
Data sheet
- Microcontroller
- RP2350
- Flash memory
- 16 MB
- Number of I/O
- None
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- MicroSD slot
- No
- Length
- 41,1 mm
- Width
- 33,1 mm
- USB connector type
- USB type C
