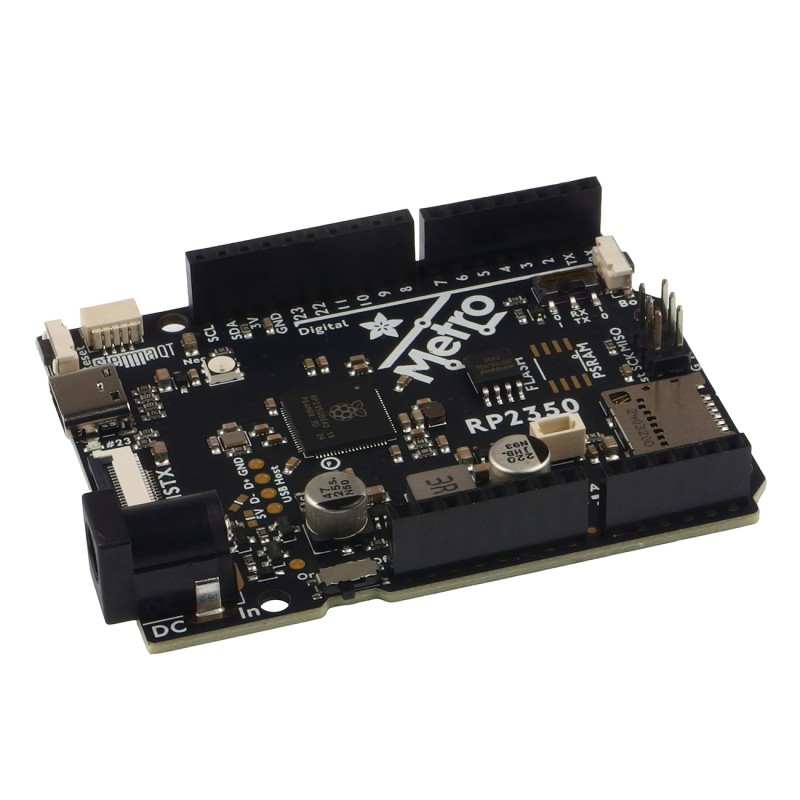

Metro RP2350 - development board with RP2350 microcontroller
ID: 1196824
5902186300859
zł132.86
Tax included
zł108.02 tax excl.
A powerful development board based on the Raspberry Pi RP2350 chip with a dual-core Cortex M33 150 MHz processor and 528 KB RAM, offering 37 GPIO pins and 16 MB of QSPI Flash memory. It supports power supply via USB-C or DC, has a DVI connector, microSD slot, Pico Probe debug port and programmable UF2 bootloader. Thanks to the wide support of programming languages (C/C++, MicroPython, CircuitPython, Arduino), it will be suitable for both educational projects and advanced embedded solutions. Adafruit 6003
Description
RP2350 Metro Line is an advanced development board based on the Raspberry Pi RP2350 chip, ideal for projects requiring Arduino form-factor compatibility or additional space and debugging ports. Onboard, it features a dual-core Cortex M33 processor running at 150 MHz and 528 KB RAM, providing high computing performance. Additionally, it includes 16 MB of QSPI Flash memory for storing programs and user files. The board offers up to 37 available GPIO pins, including analog pins, an HSTX connector for high-speed DVI video output, and USB host outputs. With a built-in microSD card slot, it supports SPI and advanced SDIO interface (for advanced users). Power can be supplied via a USB-C port or a 5.5/2.1 mm DC jack with a buck converter supporting 6 to 17 V input. The PCB includes RESET and BOOT buttons, an onboard RGB NeoPixel, and a Pico Probe debug port. Users will appreciate the RX/TX switch that allows UART pin order to be set either to the classic Arduino standard or to the physical RP2350 pin mapping. Programming the board is simple thanks to the built-in UF2 bootloader, which allows firmware files to be dragged and dropped without additional hardware. The board supports programming in C/C++, MicroPython, CircuitPython, and unofficially with Arduino, making it suitable for both beginners and advanced developers.
Features
- Main chip: RP2350, Dual Cortex M33, 150 MHz, 3.3V logic
- Memory: 528 KB RAM, 16 MB QSPI Flash
- Available GPIO: 37 pins (23 on header/SPI, 12 on HSTX, 2 for USB host)
- 6 GPIO pins with analog input capability
- microSD slot supporting SPI and SDIO (no SDIO support in Arduino/Python)
- Power: 6 to 17V DC (5.5/2.1 mm DC jack), TPS563201 buck converter up to 2A
- USB-C port for power and data
- RGB NeoPixel, LED #23, RESET and BOOT buttons
- 22-pin HSTX port compatible with Raspberry Pi 5, DVI output or extra GPIO
- Pico Probe debug port (compatible with JST SH 3-pin)
- Stemma QT port for I2C devices
- USB Host outputs with switchable 5V power and D+/D- lines
- Built-in USB UF2 bootloader (activated via BOOTSEL)
- Supported environments: C/C++, CircuitPython, MicroPython, Arduino (unofficial)
- RX/TX switch to change UART pin order (D0/D1)
1196824
Data sheet
- Microcontroller
- RP2350
- Flash memory
- 16 MB
- Number of I/O
- 37
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- MicroSD slot
- Yes
- Length
- 68 mm
- Width
- 53 mm
- USB connector type
- USB type C
