modHC-05 (Compactible) płytka z modułem Bluetooth odpowiednikiem HC-05
ID: 1183586
5902186300019
zł39.90
Tax included
zł32.44 tax excl.
The module with the HC-05 compatible transceiver makes it easy to add Bluetooth communication to an existing project. The system is controlled by exchanging AT commands (UART bus)
Description

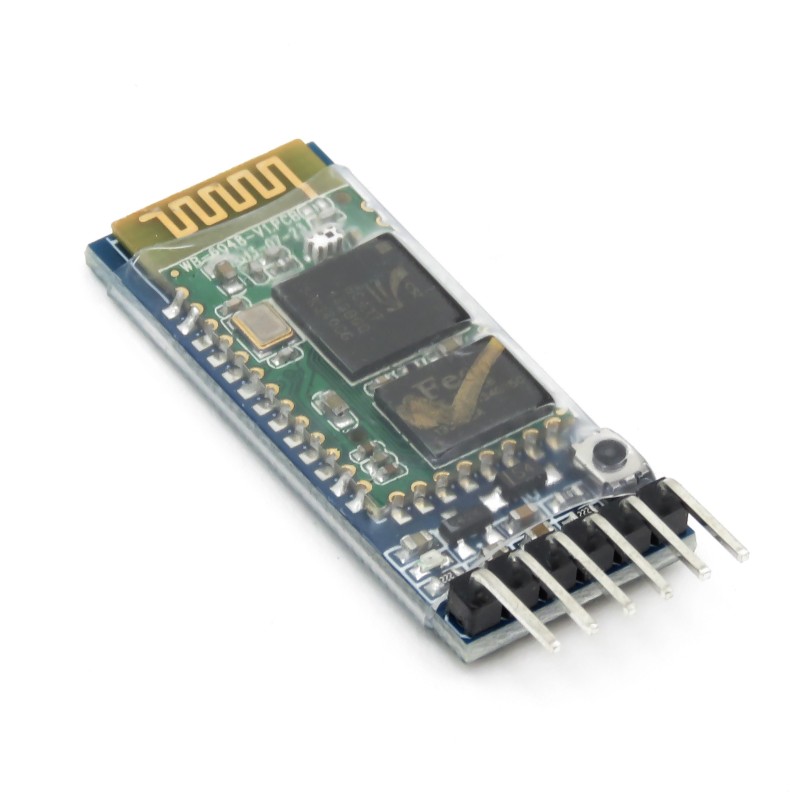

The board with the HC-05 module allows for easy and safe implementation of Bluetooth transmission to the project - thanks to the built-in stabilizer, it is possible to supply the PCB with 5V voltage (maximum voltage of signals: 3.3V). The module has a built-in button and a diode signaling the connection status.
Features
- Bluetooth v2.0 + EDR specification
- Current: 80 mA (pairing) 8 mA (transmission)
- Frequency 2.4 GHz ISM
- Modulation: GFSK (Gaussian Frequency Shift Keying)
- Transmission power: 4 dBm, class 2
- Security: Authentication and encryption
- Speed:
- asynchronous: up to 2.1 Mbps (Max) / 160 kbps
- synchronous 1 Mbps / 1 Mbps
- Working temperature: from -25 to 75 degrees Celsius
- Integrated PCB antenna
- The module is placed in a rubber casing
- Bus voltage: 3.3 V max
- Power supply: 3.6-6V
