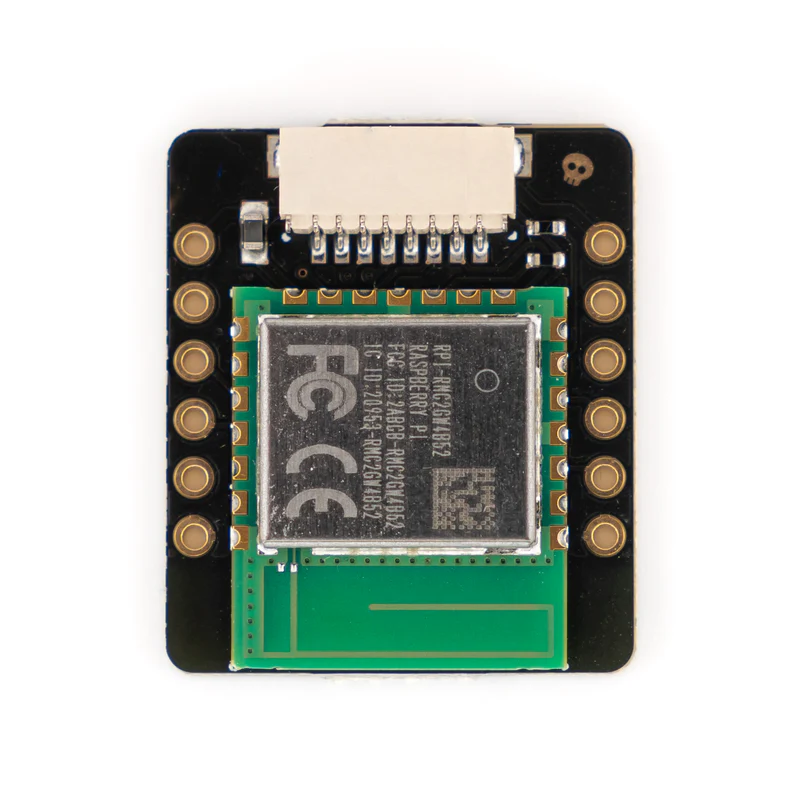

RM2 Wireless & Bluetooth Breakout - CYW43439 WiFi and Bluetooth module
ID: 1198993
zł72.23
Tax included
zł58.72 tax excl.
Wireless connectivity module based on the CYW43439, providing Wi-Fi and Bluetooth for projects with RP2040 or RP2350 microcontrollers. Equipped with an SP/CE (JST-SH 8-pin) connector, it allows for quick, solderless connection, and optional pads allow for permanent wired connections. It is fully compatible with Pico W and ideal for IoT, automation, and mobile applications. Pimoroni PIM730
Description
The RM2 module is a compact and convenient way to add Wi-Fi and Bluetooth connectivity to projects based on RP2040 or RP2350 microcontrollers. It uses the same communication module, the CYW43439, as the popular Raspberry Pi Pico W, ensuring excellent compatibility and easy integration with existing projects. Featuring a built-in SP/CE connector (8-pin JST-SH), the module can be quickly connected to any host or extension supporting this standard, such as the Pimoroni Pico Plus 2. For more advanced users, solder pads are also available, allowing direct wire connections. The module supports both Wi-Fi IEEE 802.11 b/g/n and Bluetooth, making it a perfect choice for IoT projects, home automation, or mobile devices. Its compact design and breadboard-friendly pin spacing make RM2 extremely versatile and user-friendly.
Features
- Raspberry Pi RM2 communication module (CYW43439)
- Supports Wi-Fi IEEE 802.11 b/g/n
- Supports Bluetooth

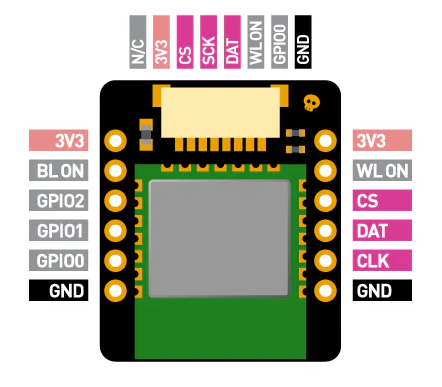

- SP/CE connector (8-pin JST-SH)
- 2.54 mm pitch headers, breadboard compatible
- Compatible with Raspberry Pi Pico, Pico 2, RP2040, RP2350
- Input voltage: 3.0 to 3.3V
- Dimensions: 23.8 x 20.4 x 4.7 mm
1198993
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
