IMX462-99 2MP Starlight Camera - 2MP IMX462 camera module for Raspberry Pi and Jetson Nano
ID: 1181297
5906623426751
€95.57
Tax included
€77.70 tax excl.
Module with IMX462 sensor working with Raspberry Pi and Jetson Nano. It has a 2 MP matrix and a lens with a 99° angle of view. Waveshare IMX462-99 2MP Starlight Camera
Description
Module with IMX462 sensor that works with all versions of Raspberry Pi and NVIDIA Jetson Nano. The sensor used has a 2 MP matrix and allows you to record video in a resolution of 1920×1080/60fps. Uses ISP hardware features for better performance. The camera is equipped with a lens with a viewing angle of 99° and allows you to obtain good image quality in low light conditions. Perfect for applications such as UAVs, drones, robotics, IoT or face recognition applications. Full documentation is available on the product page.
Features
- Sensor type: 2MP IMX462
- Pixel size: 2.9um x 2.9um
- Optical Size: 1/2.8"
- Resolution: 1920H × 1080V
- Lens Specs: Focal Length: 4mm, F.NO: F1.0, FOV: 99.1 degrees
- Shutter Type: Rolling Shutter
- IR sensitivity: Integrated IR-CUT filter
- Focus type: fixed focus
- Frame rate/sec: adjustable, 1080p @ 5-60fps
- Output format: JPG, YUV420, RAW, DNG output image format; MJPEG, H.264 output video format
- Sensor output format: RAW10
- ISP: picture format: JPG, YUV420, RAW, DNG; MJPEG, H.264 video format
- Interface type: 2-line MIPI
- Dimensions: 38 x 38 mm
Kit contains
- IMX462-99 2MP Starlight Camera
- FPC tape
- Connecting cable
1181297
Data sheet
- Resolution
- 2Mpx
- Interface
- MIPI CSI-2
- Sensor
- IMX462
- IR filter
- Yes
- Lens assembly
- none
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
The latest version of the Raspberry Pi series: Raspberry Pi 4 model B with quad-core SoC (Broadcom BCM2711, Cortex-A72) working at 1.5GHz, 1GB RAM LPDDR4, Broadcom VideoCore VI layout.
€42.42 24hAvailable quantity: 146 AvailableThe latest version of the Raspberry Pi series: Raspberry Pi 4 model B with quad-core SoC (Broadcom BCM2711, Cortex-A72) working at 1.5GHz, 2GB RAM LPDDR4, Broadcom VideoCore VI.
€53.26 Delivery date unknown No product available!
The long-awaited Raspberry Pi 4 model B with the SoC Broadcom BCM2711 SoC (4 x Cortex-A72) running at 1.5GHz, 4 GB LPDDR4 RAM and the Broadcom VideoCore VI graphics chip
€66.76 24hAvailable quantity: 166 AvailableModule with IMX462 sensor working with Raspberry Pi and Jetson Nano. It has a 2 MP matrix and a lens with a 127° angle of view. Waveshare IMX462-127 2MP Starlight Camera
€81.22 Delivery date unknown No product available!
Other products in the same category (16)
Official camera module set to work with Raspberry Pi minicomputers. Equipped with a Sony IMX708 sensor with a resolution of 12 Mpx and a lens with a viewing angle of 120 ° with autofocus. Raspberry Pi SC0874
€42.18 24hAvailable quantity: 23 AvailableCamera with a resolution of 2 MPx with a USB interface. Equipped with a CMOS IMX291 sensor with an ultra-wide lens with a viewing angle of 120°, a microphone and a case. ArduCAM UB020101
€74.38 24hAvailable quantity: 2 Available0.31 Mpx camera module with OV7251 sensor compatible with all versions of Raspberry Pi. The maximum video resolution is 640×480 pixels. ArduCAM B0161
€36.35 24hAvailable quantity: 1 AvailableThe camera set with the Sony IMX477 sensor allows you to remotely rotate the camera, control the angle of inclination and zoom. Works with all versions of the Raspberry Pi. The camera is equipped with a matrix with a resolution of 12 MPx. ArduCAM B016712MP
€168.48 24hAvailable quantity: 2 AvailableCamera module with a Sony Starvis IMX462 sensor compatible with Raspberry Pi minicomputers. It has a 2 MP matrix and a lens with a 141° viewing angle and supports the HDR function. ArduCAM B0444
€47.05 24hAvailable quantity: 4 AvailableCamera with a resolution of 1 MPx with a USB interface. Equipped with a GC1024 sensor with a lens with a 128° angle of view and LED lighting. ArduCAM U6060
€47.52 4 weeks No product available!
Camera module with a two-degree-of-freedom (2 DoF) platform. It uses the OV5647 sensor with a resolution of 5 MP and provides a 360° camera rotation angle thanks to the built-in servo. It is dedicated to the Raspberry Pi 4B and Raspberry Pi 5 minicomputers. 2-Axis Pan-Tilt Camera Module (EU)
€135.16 24hAvailable quantity: 2 AvailableSet with HQ camera, HDMI adapter, 6 mm wide-angle lens and tripod. It works with all versions of Raspberry Pi with a CSI socket. ArduCAM B0241
€177.49 4 weeks No product available!
Camera module with OV5647 sensor and movable lens with software-controlled focus. Works with Raspberry Pi. The camera is equipped with a matrix with a resolution of 5 MPx. ArduCAM B0176
€17.43 24hAvailable quantity: 1 AvailableRaspberry Pi Camera Module, Fisheye Lens, Wider Field of View. Waveshare RPi Camera (J)
€30.61 24hAvailable quantity: 7 AvailableCamera module with IMX219 sensor with a resolution of 8 MP equipped with programmable focus. Designed for NVIDIA Jetson Nano and Raspberry Pi Compute Module. ArduCAM B0181
€27.54 24hAvailable quantity: 2 AvailableSet with a monochrome camera with a resolution of 0.3 MPx with an OV7251 sensor and a USB 2.0 adapter. Without IR filter. ArduCAM EK027

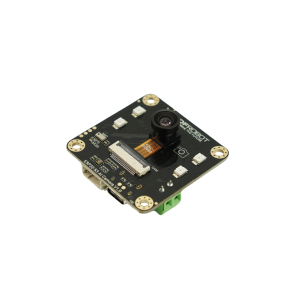

€124.11 24hAvailable quantity: 1 AvailableAdvanced camera module that combines powerful video processing, edge AI and voice interaction, ideal for monitoring and IoT applications. Equipped with a wide-angle infrared camera, microphone, speaker, image recognition and voice interaction capabilities, the module supports various applications such as smart peepholes, security monitoring, license plate recognition and voice assistants, providing excellent image and sound quality even in low light conditions. DFRobot DFR1154
