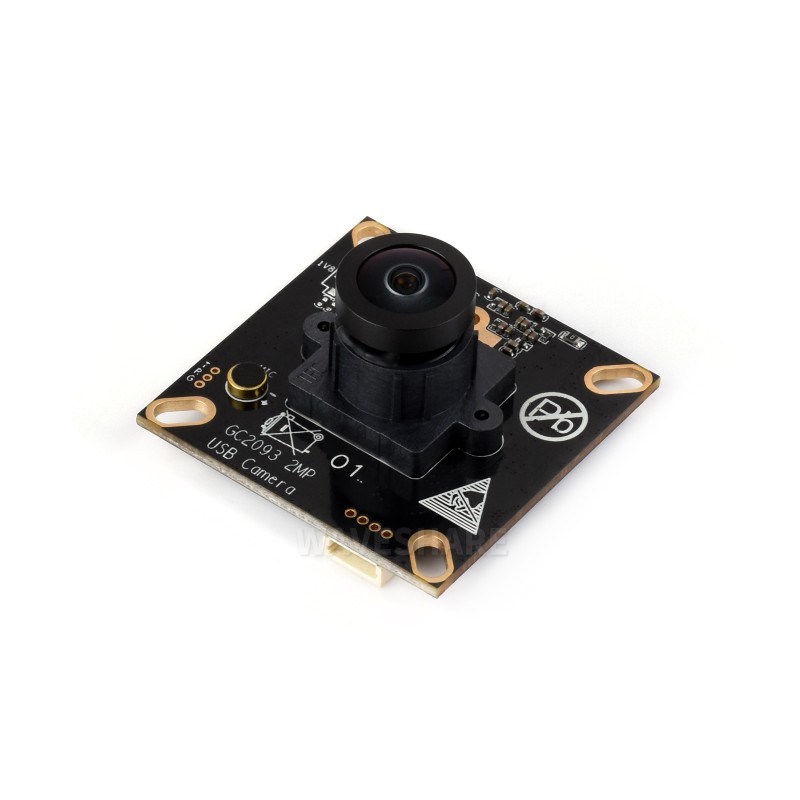

Waveshare GC2093 2MP USB camera module (A) with microphone - Waveshare 31328
ID: 1198968
zł124.57
Tax included
zł101.28 tax excl.
GC2093 2MP USB Camera (A) is a universal video module with a wide viewing angle, WDR support, and a built-in microphone, designed for use in vision systems, surveillance, interactive devices, and AI applications, delivering high image quality even in challenging lighting conditions.
Description
The GC2093 2MP USB Camera module is a compact solution featuring a 1/2.9″ CMOS sensor, WDR support, and a wide-angle lens, ideal for applications requiring high image quality under varying lighting conditions. The camera operates via a USB 2.0 interface and includes a built-in microphone. It supports plug-and-play functionality with no driver installation required. The fixed-focus M12 lens provides a diagonal field of view of 170.2° and low distortion. Image output is available in MJPG and YUY2 formats at resolutions up to 1920×1080 at 30 FPS. The high dynamic range (up to 105 dB HDR) allows for detailed image capture even in high-contrast lighting environments.
Features
- Sensor: GC2093, CMOS 1/2.9″
- Resolution: 2 MP (1920×1080)
- Interface: USB 2.0
- Lens: M12 mount, fixed-focus
- Aperture: f/2.2
- Effective focal length (EFL): 2.28 mm
- Field of view (FOV): 170.2° (D), 144° (H), 77.6° (V)
- Distortion: < -27°
- WDR: 81 dB (linear), 105 dB (HDR mode)
- IR filter: 650 nm
- Image formats: MJPG, YUY2
- MJPG: up to 30 FPS (1920×1080, 1280×720, 1024×576, 640×480, 640×360)
- YUY2: up to 25 FPS (640×480, 640×360), 20 FPS (1024×576), 15 FPS (1280×720)
- Audio: built-in microphone
- Power supply: 5 V ±5%
- Current consumption: 180 mA
- Dimensions: 38.00 × 38.00 × 19.01 mm
- Mounting: M2, M2.5, M4 holes, 33.72 mm spacing
Included in the set
- GC2093 2MP USB Camera (A) ×1
- USB-A to 5PIN cable ×1
1198968
Data sheet
- Resolution
- 1920 x 1080 px
- Interface
- USB 2.0
- Sensor
- GC2093
- IR filter
- Yes
- Lens assembly
- none
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
