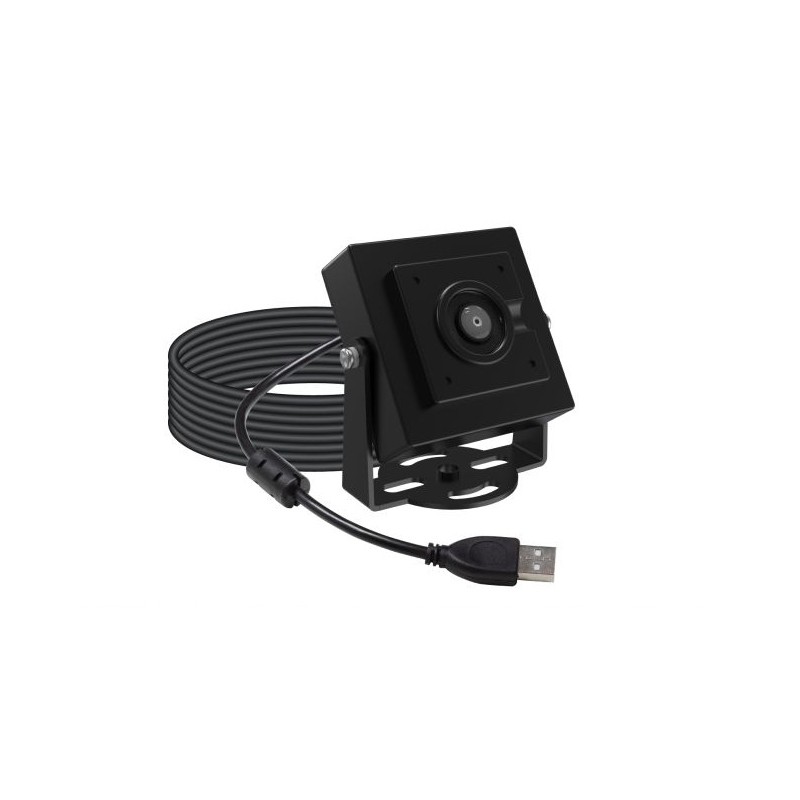

ArduCAM Global Shutter USB2 UVC - USB camera with a 640x480 color sensor

Description

Arducam ezBOX GS B0633 is a compact industrial USB camera equipped with a color global shutter sensor, designed for applications that require very fast image capture and accurate color reproduction. Thanks to the global shutter technology, the camera eliminates motion distortion typical of rolling shutter sensors, enabling precise recording of fast-moving objects. The device supports recording at up to 160 frames per second at QQVGA resolution, making it ideal for motion analysis, machine vision systems, and industrial automation. The integrated wide-angle lens provides an exceptionally large field of view, allowing monitoring of a wider area without the need to install multiple cameras.

The camera features a built-in image signal processor (ISP) responsible for real-time image processing, including color, contrast, and exposure optimization. This ensures stable and consistent image output without requiring intensive processing on the host computer. The device operates using the USB2 UVC (USB Video Class) standard, providing full compatibility with popular operating systems without the need to install additional drivers.

The robust metal enclosure ensures durability in industrial environments and mechanical stability during installation. The camera also supports external triggering, allowing synchronization of image capture with other devices in automation systems or laboratory measurement setups. Additionally, support for ROI (Region of Interest) enables capturing only a selected part of the image to increase processing efficiency.

Features

• Product series: ezBOX-VGA GS
• Sensor type: color
• Maximum image resolution: VGA
• Active sensor area: 640(H) × 480(V)
• Optical sensor size: 1/7.5″
• Pixel size: 3 µm × 3 µm
• Output format: MJPG / YUV
• Shutter type: Global Shutter
• Color filter: Color
• MJPG video resolution:
  • 640 × 480 @ 120 fps
  • 320 × 240 @ 160 fps
  • 160 × 120 @ 160 fps
• YUV video resolution:
  • 640 × 480 @ 60 fps
  • 320 × 240 @ 100 fps
  • 160 × 120 @ 100 fps
• Lens: wide-angle
• Field of view (FOV): 166° (D) × 130° (H) × 100° (V)
• Focus type: fixed focus
• External trigger mode support
• Fstrobe support (customizable)
• Supported operating systems: Windows, Linux
• Infrared filter: integrated IR filter 650 nm
• Communication interface: USB 2.0
• Connector: B4B-ZR JST
• UVC standard: Plug & Play, no driver installation required
• Operating voltage: 5 V
• Power consumption: 0.8 W
• Operating temperature: 0 °C to 70 °C
• Dimensions: 32 × 32 × 1.6 mm

Kit contains

• Arducam ezBOX VGA GS Color Wide Angle USB2 UVC camera
• USB2 to B4B-ZR JST cable, 1 m
