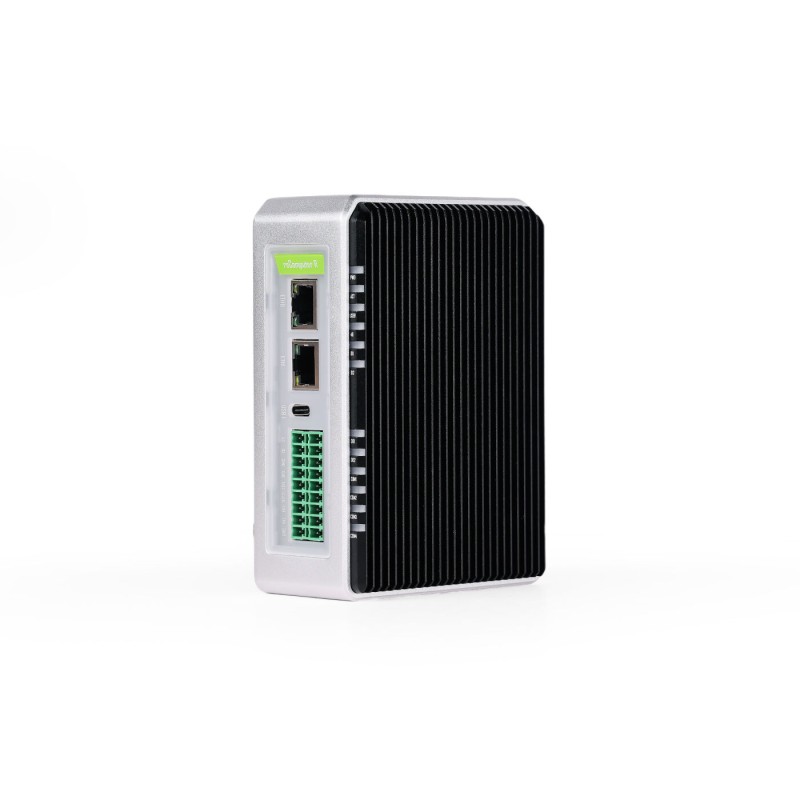

Main view
search
  • Main view
  • Angled rear view
  • Front panel (antenna / service)
  • Power and I/O panel (USB / HDMI)
  • Communication and I/O panel (Ethernet / RS / DI/DO)
  • Full kit
ID: 1196937
5902186336858
zł1,173.64
Tax included

zł954.18 tax excl.

Industrial IoT gateway and controller with integrated Raspberry Pi CM4 module (4 GB RAM, 32 GB eMMC), featuring a quad-core Cortex-A72 1.5 GHz processor and support for Raspbian, Ubuntu and Debian. Design supports 9–36 V DC power input and PoE (IEEE 802.3af), providing a wide range of interfaces including Gigabit Ethernet, USB 2.0, HDMI 2.0, isolated RS485 and RS232, digital inputs/outputs, as well as M.2 NVMe and microSD slots. Expansion options include wireless connectivity (Wi-Fi, BLE, 4G, LoRa, Zigbee) and additional modules such as TPM 2.0 or UPS, with operation in -30°C to 70°C range in a fanless IP40 enclosure for DIN rail mounting. Seeed Studio 113991334

24h
Available
Available quantity: 1
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

Industrial IoT gateway and controller from the reComputer R1100 series designed for edge computing, industrial automation, monitoring systems and control applications. The design integrates a Raspberry Pi CM4 module with a quad-core Cortex-A72 processor clocked at 1.5 GHz, enabling data processing, communication handling and AI workloads at the network edge.

Version R1125-10 includes a built-in CM4 module with 4 GB RAM and 32 GB eMMC, eliminating the need for an external compute module. The platform supports Raspbian, Ubuntu and Debian, allowing integration with existing industrial and development environments.



The enclosure supports operation in industrial conditions with fanless cooling and an operating temperature range from -30°C to 70°C. Interfaces include Gigabit Ethernet with PoE (IEEE 802.3af), 2x USB 2.0, HDMI 2.0, isolated RS485 and RS232, digital inputs and outputs, as well as an M.2 NVMe slot for SSD expansion.

The system supports expansion with wireless communication including 4G LTE, LoRa, Zigbee and Wi-Fi/BLE, along with additional functional modules such as TPM 2.0, UPS or GPS. Wide 9–36 V DC power input enables integration with industrial power systems and control cabinets.

Features

  • Series: reComputer R1100
  • Processor: Raspberry Pi CM4, Quad-core Cortex-A72 1.5 GHz
  • RAM: 4 GB
  • eMMC: 32 GB
  • Operating system: Raspbian, Ubuntu, Debian
  • Power supply: 9 - 36 V DC (terminal block)
  • PoE support: IEEE 802.3af (12.95 W)
  • Power consumption: 2.88 W (idle), 5.52 W (full load)
  • Ethernet: 1 x Gigabit Ethernet
  • USB: 2 x USB-A 2.0, 1 x USB-C (OS flashing)
  • HDMI: 1 x HDMI 2.0
  • RS485: 2 x isolated
  • RS232: 2 x isolated
  • DI: 2 x isolated inputs (5 - 24 V DC)
  • DO: 2 x isolated outputs (<60 V DC)
  • SIM slot: Nano SIM (internal)
  • microSD slot: 1
  • SSD slot: M.2 NVMe 2280 (M-Key)
  • LED: 12 indicators
  • Buzzer: 1
  • RTC: yes
  • Watchdog: 1 - 255 s
  • Security: TPM 2.0 / ATECC608A (optional)
  • Wireless connectivity: Wi-Fi 2.4/5 GHz, BLE 5.0 (optional 4G, LoRa, Zigbee)
  • Protection rating: IP40
  • Operating temperature: -30°C ~ 70°C
  • Operating humidity: 10 - 95% RH
  • Cooling: passive (fanless)
  • Mounting: DIN rail
  • Certifications: CE, FCC, TELEC, RoHS

Kit includes

  • reComputer R1100
  • DIN rail clip
  • screw pack
  • DC power female jack to screw terminal adapter
  • terminal block connectors (9 x 2-pin)
  • 120 Ω resistors (5 pcs)
  • user manual
