375 RPM 12V JGY370 - Motor with worm gear

Description

DC motor with a nominal supply voltage of 12 V with a metal worm gear with a ratio of 1: 16. The motor can be supplied with voltage in the range 6-15 V. The rotational speed of the drive without load is 375 rpm. The motor consumes a current of approx. 200 mA without load. At its maximum allowable load, the motor draws approximately 3.5 A and generates a torque of 0,13 kg-cm (0.013 Nm). Weight of the drive unit 165 g.

Features

• Nominal operating voltage of the motor: 12V (safe operating range: 6-15V)
• Nominal unloaded motor current: 200 mA
• Nominal load motor current: 3.5 A
• Metal gear with a gear ratio: 1: 16
• "D" shaped shaft
• Weight: 165 g

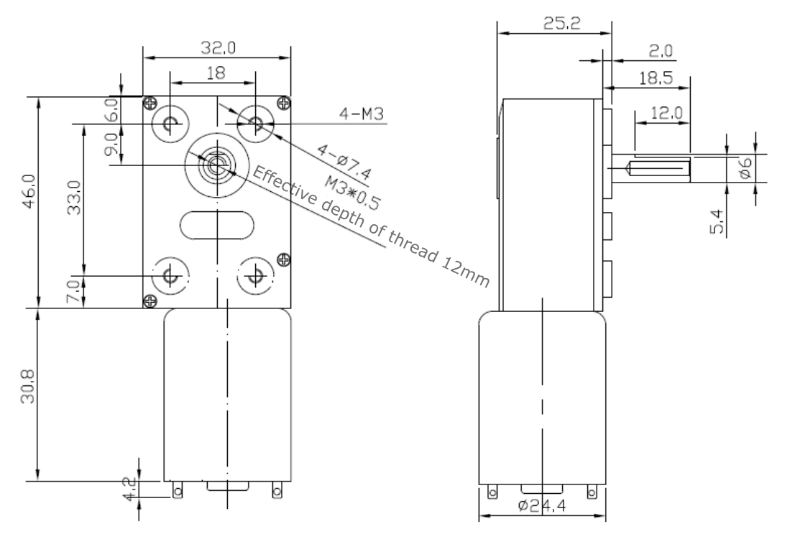

Technical drawing

Types and parameters of JGY370 engines:

Our offer includes JGY370 engines with gear ratios from 16: 1 to 3000: 1.
