Siglent SDS1104X-U - 4-channel 100MHz oscilloscope
ID: 1188922
5906623408825
zł1,864.05
Tax included
zł1,515.49 tax excl.
Digital oscilloscope equipped with a 7" TFT LCD display. It has four measurement channels with a bandwidth of 100 MHz, a sampling rate of 1 GSa/s and a memory buffer of 14 Mpts. Siglent SDS1104X-U
Description
The 4-channel digital oscilloscope is an essential tool for specialists in various industries that require precise signal analysis. The main advantage of this model is its advanced 7-inch TFT LCD display, which guarantees a clear and readable image, supported by a resolution of 800 x 480 pixels. Moreover, the user can adjust the backlight brightness, ensuring optimal working conditions even in difficult lighting conditions.
Modern oscilloscopes must meet growing technological requirements. Therefore, this model offers as many as four measurement channels that operate in the 100 MHz band. A sampling rate of 1 GSa/s and a memory buffer of 14 Mpts guarantee precise and accurate measurements, even in the case of complex signals. Additional functions such as the ability to measure 38 different voltage-time parameters provide full insight into the signal characteristics. Decoding popular serial buses such as UART, I2C, SPI, CAN, LIN makes it an indispensable tool in fields such as telecommunications and embedded systems. However, this is not the end of the advantages of this oscilloscope. Advanced functions, such as FFT analysis or the ability to record waveforms, give the user deeper insight and full control over the analyzed signal. Communication with a PC is extremely simple thanks to the built-in USB interface, which allows for fast data transfer and remote control using standard SCPI commands.
A 4-channel digital oscilloscope is not only an advanced measurement tool, but also an investment in precision, reliability and advanced signal analysis capabilities. It is ideal for a wide range of applications, from research to educational, providing invaluable support for professionals in many fields.
Features
- Number of channels: 4
- Frequency band: 100MHz
- Sampling rate: 1 GSa/s
- Waveform capture: 100000 wfm/s (Normal mode), 400000 wfm/s (sequential mode)
- Maximum recording length: 7 Mpts/CH (without interleave mode), 14 Mpts/CH (interleave mode)
- 7" TFT LCD display with a resolution of 800x480 pixels
- Smart trigger: edge, pulse width, window, interval, timeout (Dropout)
- Serial bus triggering and decoding: IIC, SPI, UART, CAN and LIN
- Video triggering and HDTV support
- Low background noise
- Vertical scale: 1 mV/div to 10 V/div
- Segment acquisition mode (Sequence), dividing the maximum record length into multiple segments (up to 80,000), according to user-set trigger conditions, with a very small dead time segment
- Historical waveform recording function (History), the maximum length of the recorded waveform is 80,000 frames
- 38 parameter automatic measurement function, supports statistics, mathematical measurement, historical measurement and reference measurement
- FFT analysis
- The preset key can be adjusted to user settings or "factory default" settings
- Secure erase mode
- Fast hardware Pass/Fail function
- Interfaces: USB Host, USB Device (USB-TMC), LAN (VXI-11), Pass/Fail, Trigger Out
- Support for SCPI remote control commands
- Dimensions: 312 x 132.6 x 151 mm
- Weight: 2.6kg
Kit contains
- Oscilloscope
- Test leads
- USB cable
- Power cord
1188922
Data sheet
- Type of oscilloscope
- Digital
- Bandwidth
- 100 MHz
- Sampling rate
- 1 Gsps
- Memory depth
- 14 Mpts
- Number of channels
- 4
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
BNC connector cable (adapter) to the "Alligator clip" connector. It allows you to conveniently connect the device, e.g. to an oscilloscope. Digilent (240-134)
zł52.64
24h
Available quantity: 3
Available
BNC connector adapter cable for mini-grabber clips. Connects to Analog Discovery 2 via a BNC adapter. Digilent 240-136
zł47.95
24h
Available quantity: 3
Available
A universal oscilloscope probe with a BNC connector and a 10:1 voltage divider. It has a frequency response of 100 MHz and allows measurements with a maximum voltage of up to 600 V. Hantek PP-150
zł30.58
Delivery date unknown
No product available!
Other products in the same category (16)

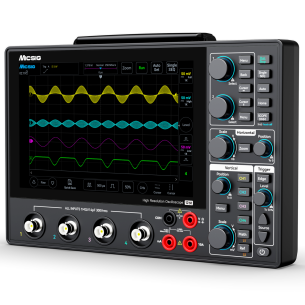

Micsig MHO14-200 is a four-channel, tablet-based 12-bit oscilloscope with a 200 MHz bandwidth, designed for mobile and advanced signal measurements. It supports remote control, serial bus decoding, and multimeter functions, making it a versatile tool for electronics technicians and service engineers.
