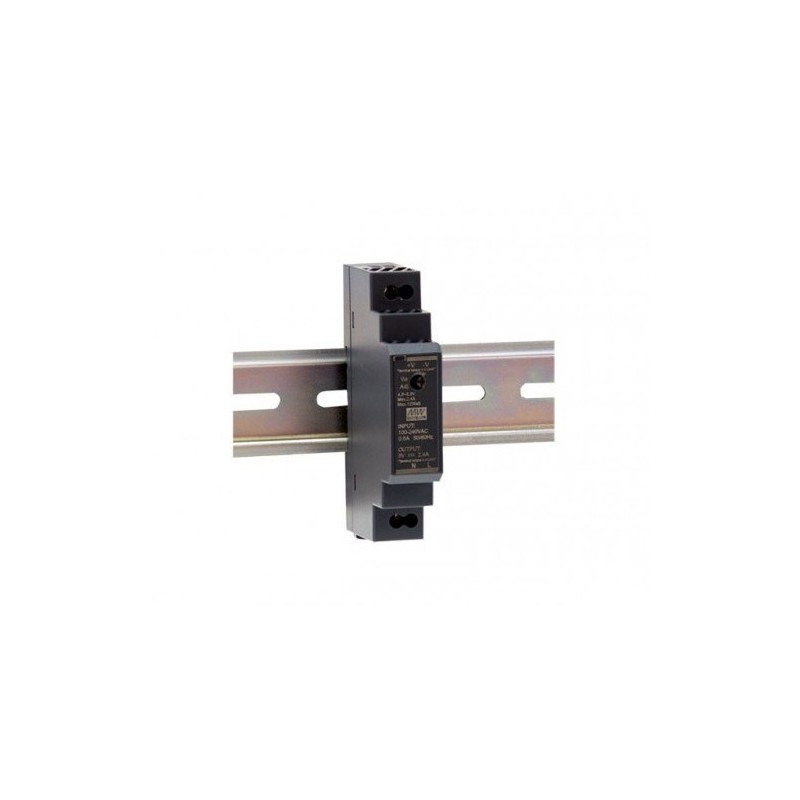

Mean Well HDR-15-24 – DIN rail power supply 15 W 24 V 0.63 A
search
  • Mean Well HDR-15-24 – DIN rail power supply 15 W 24 V 0.63 A
ID: 1201267
zł43.00
Tax included

zł34.96 tax excl.

Mean Well HDR-15-24 power supply with 15 W power and 24 V DC output mounted on a DIN rail offers high reliability and a wide range of input voltages. It is suitable for automation systems, industrial installations, and low-voltage distribution boards.

1 weeks
Awaiting delivery

Description

Switched-mode power supply with 15 W power designed for mounting on DIN rail TS35 / 7.5 or 15. Output voltage of 24 V and current up to 0.63 A, with adjustable voltage, allows matching the parameters to the requirements of end devices. The power supply accepts a wide input voltage range: 85–264 V AC or 120–370 V DC. The device is equipped with short-circuit, overload, and overvoltage protections, as well as operating status indication via LED. Cooling is passive, without a fan. The construction complies with UL, EN standards and insulation class II. Adapted to operate in a temperature range from -30°C to +70°C, with low no-load power consumption below 0.3 W.

Features

  • DIN rail mounting TS35 / 7.5 or 15
  • Input voltage range: 85–264 V AC or 120–370 V DC
  • Output voltage: 24 V DC
  • Output current range: 0–0.63 A
  • Output power: 15 W
  • Output voltage tolerance: ±1%
  • Ripple: 150 mV
  • Efficiency: 86%
  • No-load power consumption: <0.3 W
  • Short-circuit, overload, overvoltage protection
  • Convection cooling (free air circulation)
  • Adjustable output voltage
  • LED indicating operation
  • Insulation class II
  • Compliance with LPS
  • Operating temperature: -30°C to +70°C
  • Compliance with standards UL-60950-1, UL-508, UL-1310, EN60950-1, EN61558-2-16
  • Dimensions: 17.5 x 90 x 54.5 mm
1201267

Data sheet

Output voltage
24V
Output current
0,63 A
Power
15W
