A round DSI capacitive touch display with a 4-inch IPS panel, 720 × 720 resolution, and 10-point capacitive touch support, designed for embedded systems and development boards, including Raspberry Pi. Waveshare 4-DSI-TOUCH-C

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

Round DSI touch display designed for applications requiring a symmetrical display format and multi-touch interaction. The 4-inch IPS panel with a resolution of 720 × 720 pixels provides uniform image quality, natural color reproduction, and wide viewing angles of up to 170°, supporting clear and readable user interface designs.

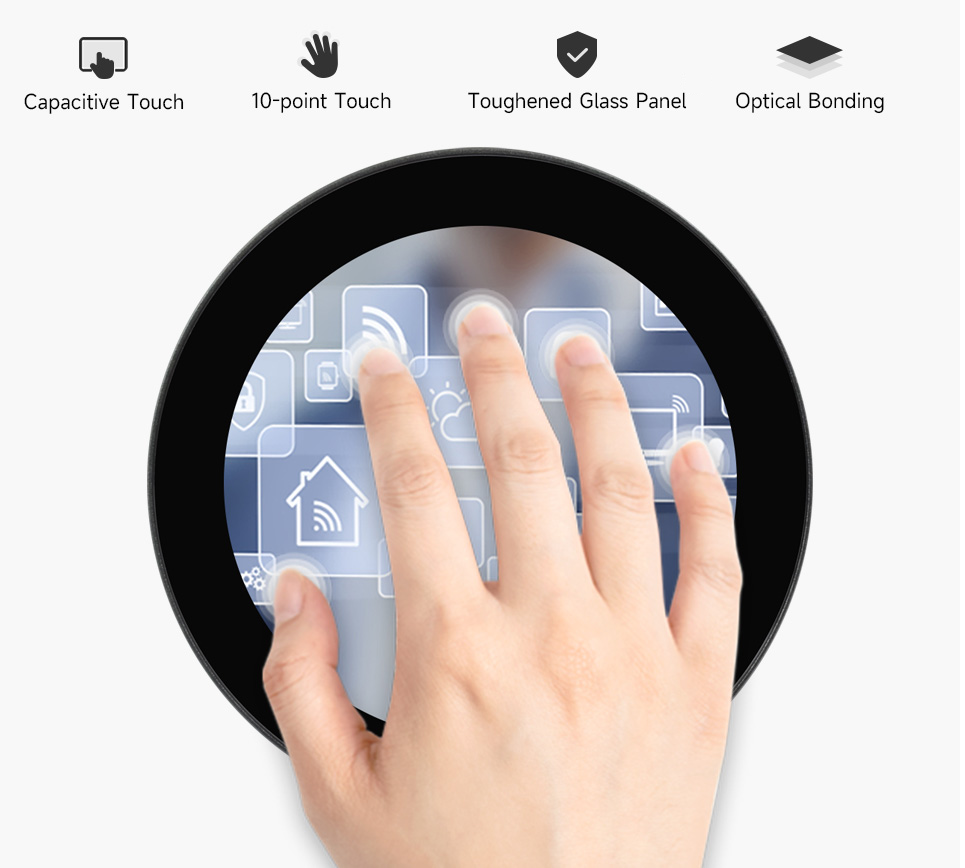

Image transmission is handled via a 2-lane MIPI DSI interface, allowing direct connection to a compatible connector without occupying GPIO pins. The integrated capacitive touch panel communicates over the I2C bus and supports up to 10 simultaneous touch points, depending on the operating system.


The front surface is protected by toughened glass with hardness up to 6H. Optical bonding technology reduces reflections, improves display clarity, and helps protect the internal structure from dust ingress. Screen brightness reaches up to 550 cd/m² and can be adjusted via software.

The display supports Raspberry Pi OS with full 10-point touch functionality, as well as RK3506, RK3576, and ESP32-P4 platforms, where multi-touch and graphical interface support are available. The solution is suitable for smart home systems, in-vehicle devices, consumer electronics, and industrial applications.

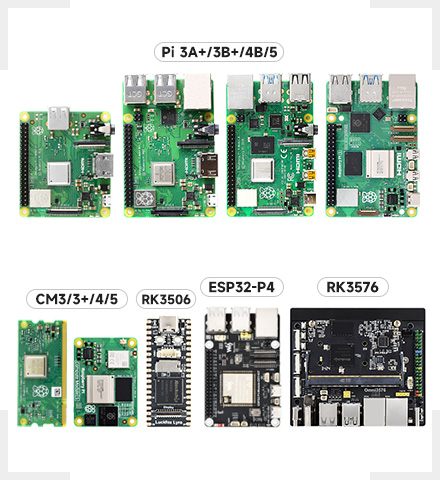

                                                                                                                                  Compatibile with



Features

  • Display
    • Diagonal size: 4 inches
    • Resolution: 720 × 720
    • Panel type: IPS
    • Color depth: full color
    • Color gamut: 60% NTSC
    • Contrast ratio: 1200:1
    • Brightness: up to 550 cd/m²
    • Viewing angle: 170°
    • Display interface: 2-lane MIPI DSI
    • Display controller: JD9365
  • Touch Panel
    • Touch type: capacitive
    • Touch points: up to 10
    • Touch interface: I2C
    • Touch controller: GT928
    • Protective glass: toughened, up to 6H hardness
    • Bonding technology: optical bonding
  • Mechanical Parameters
    • Overall dimensions: 126.00 × 126.00 mm
    • Active display area: 101.52 × 101.52 mm
  • Operating Conditions
    • Operating temperature: 0°C to 60°C
  • Compatibility
    • Raspberry Pi: Raspberry Pi OS support, 10-point touch
    • RK3506: Buildroot, Ubuntu, and other systems
    • RK3576: Buildroot, Debian, Ubuntu, Android
    • ESP32-P4: LVGL GUI application support

Kit includes

  • 1 × 4-DSI-TOUCH-C display
  • 1 × mounting screws pack
  • 1 × MX1.25 2-pin to MX1.25 4-pin cable, approx. 150 mm
  • 1 × MIPI DSI cable, 12 cm
  • 1 × MX1.25 2-pin to 2.54 mm 3-pin cable
  • 2 × 22-pin FFC cables, opposite-side contacts
1202652

Data sheet

Screen type
IPS
Diagonal (inch)
4
Resolution
720 x 720 px
Interface
DSI
Touch
Yes
