- New

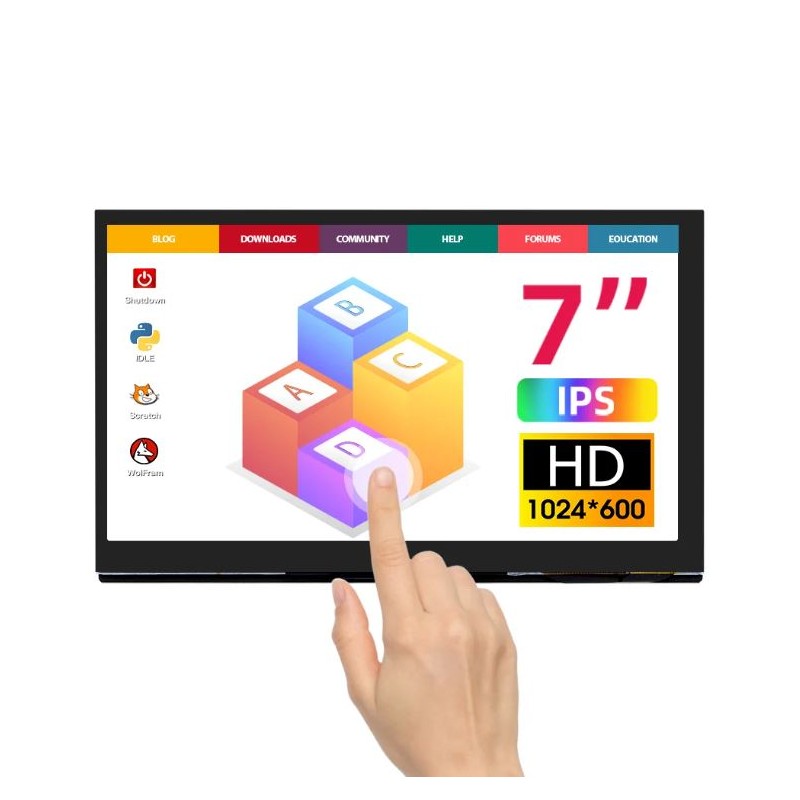

7-inch IPS Touch Monitor 1024x600 HDMI - display for Raspberry Pi
ID: 1203395
zł170.96
Tax included
zł138.99 tax excl.
7-inch IPS monitor with a 5-point capacitive touch panel, 1024x600 resolution and HDMI input, designed for use with Raspberry Pi and other SBC platforms. Elecrow DLH05170B
Description
The 7-inch IPS HD touch monitor is intended for use in projects based on SBC platforms, embedded systems, automation, and multimedia applications. The IPS panel with a native resolution of 1024x600 px provides wide viewing angles and stable color reproduction, making it suitable for graphical user interfaces, system diagnostics, and data visualization.
The capacitive touch panel supports up to five simultaneous touch points and communicates via USB, requiring no driver installation on popular operating systems. The monitor is compatible with Raspberry Pi, BeagleBone Black, Banana Pi, Jetson Nano, as well as PCs running Windows 7, 8, 10, and 11, and selected game consoles.
The device is equipped with an on-screen display (OSD) menu for adjusting brightness, contrast, and image parameters and also supports software-based brightness control via USB. The integrated design with a recessed interface and rear mounting holes allows direct installation of Raspberry Pi boards on the back of the monitor, enabling compact and visually clean project assemblies.
Compliance with CE and RoHS certifications confirms conformity with safety and quality standards, allowing the monitor to be used in educational, industrial, and laboratory environments.

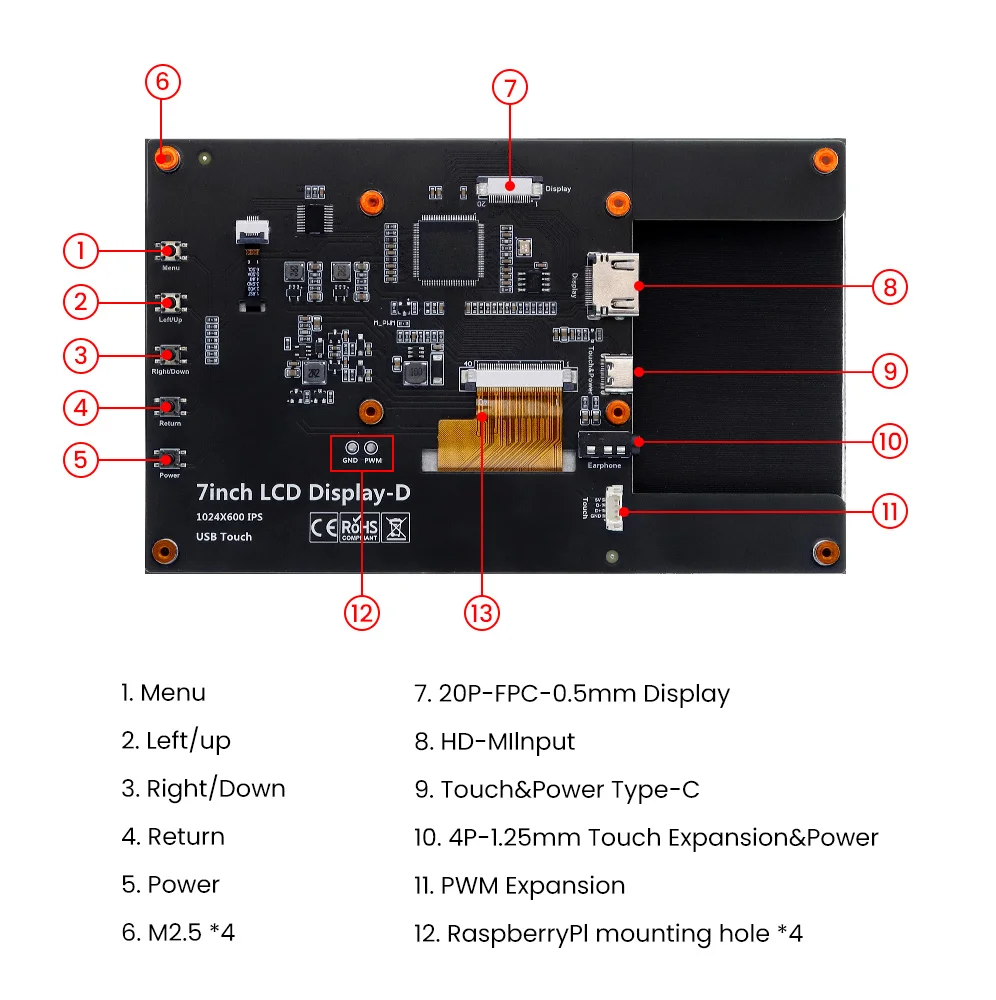

Hardware overview
Features
- Display type: IPS LCD
- Screen size: 7 inches
- Resolution: 1024 x 600 px
- Supported video signal: up to 1080p
- Viewing angle: 178°
- Touch type: Capacitive, 5-point
- Touch controller: GT911
- Video interface: HDMI / FPC
- Touch interface: USB, 4-pin 1.25 mm connector
- Backlight brightness: 320 cd/m²
- Refresh rate: 60 Hz
- Response time: 5 ms
- Backlight: White LED
- Power supply: 5 V via USB Type-C
- Power consumption: 2.55 W
- Audio output: 3.5 mm jack
- Image adjustment: OSD menu, USB software control
- Active area: 154.21 x 85.92 mm
- Dimensions: 164.90 x 102.00 x 15.15 mm
- Net weight: 223 g
- Compliance: CE, RoHS
Kit includes
- 7-inch touch monitor
- HDMI cable, 1 m
- USB-A to USB-C cable, 1 m
- Micro-HDMI to HDMI adapter
- Mounting stands
- M2.5 mounting screw set
- M2.5 spacer pillars
1203395
Data sheet
- Screen type
- IPS
- Diagonal (inch)
- 7
- Resolution
- 1024 x 600 px
- Interface
- HDMI
- Touch
- Yes
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
