Development board based on the ESP32-C6 microcontroller with a round 1.43 inch capacitive AMOLED display with 466 x 466 resolution, a 160 MHz RISC-V processor, QSPI interface and an onboard dual microphone. Version with a protective case. Waveshare ESP32-C6-Touch-AMOLED-1.43-B

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

The Waveshare 31905 development board is designed for wearable devices, compact HMI interfaces and AIoT applications where integration of modern wireless connectivity, touch input and multimedia functions is required. The ESP32-C6 microcontroller with a 32-bit RISC-V architecture and a clock frequency of up to 160 MHz enables the implementation of communication, control and interactive applications.

p1199749-ESP32-C6-Touch-AMOLED-1.43-details-7.jpgp1199749-ESP32-C6-Touch-AMOLED-1.43-details-3.jpg

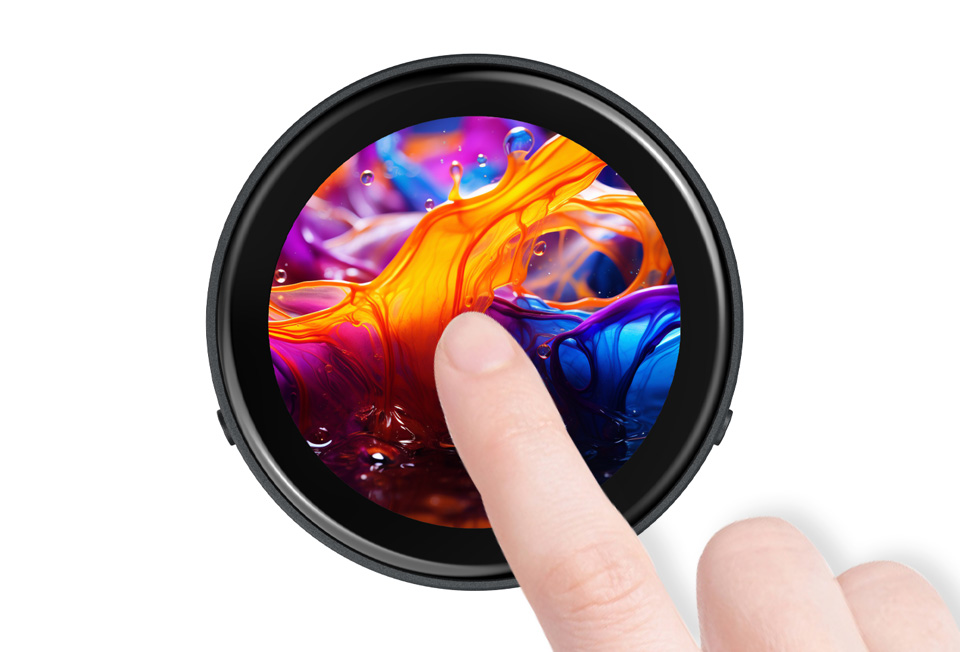

The board integrates a round 1.43 inch AMOLED display with a resolution of 466 x 466 and support for 16.7 million colors. The display is driven by the CO5300 controller via the QSPI interface, while touch input is handled by the FT6146 controller using I2C communication, allowing efficient use of the microcontroller I/O resources.

The development board supports AI voice command applications thanks to the onboard microphones and audio subsystem, and enables presentation of information, user interfaces and multimedia content on the round AMOLED display.

The design includes a QMI8658 6-axis IMU for motion and orientation detection and a PCF85063 RTC chip for real-time clock functionality. Onboard ES7210 and ES8311 audio chips together with the dual microphone support audio input and output in voice-based applications. The TF card slot allows storage expansion, while the MX1.25 battery connector enables battery-powered operation. The ESP32-C6-Touch-AMOLED-1.43-B version is equipped with a protective case, supporting mobile use and prototype testing.

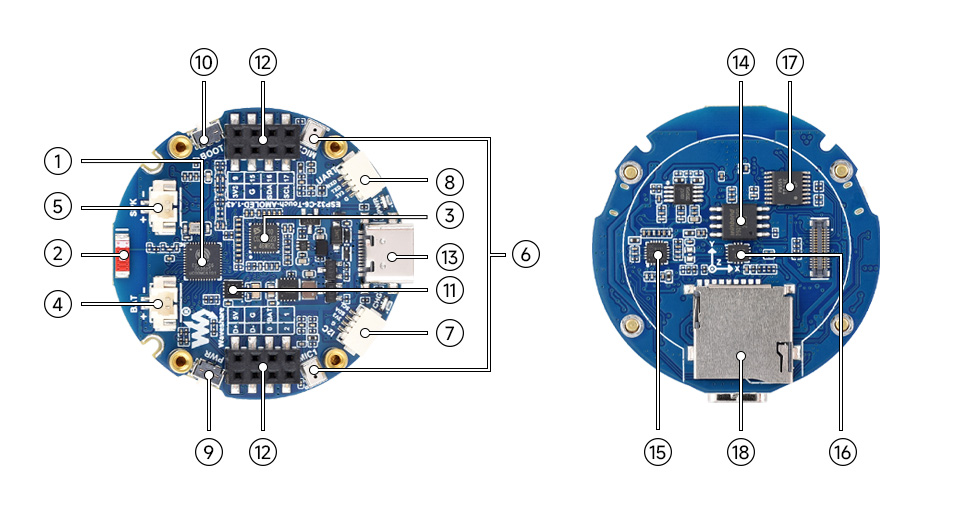

  1. ESP32-C6 - RISC-V 32-bit single-core processor, up to 160MHz operating frequency, with 2.4GHz Wi-Fi 8 and BLE 5 support
  2. Onboard antenna - Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
  3. ES7210 ADC audio decoding chip - High-performance and low-power audio ADC, supporting multi-channel microphone input
  4. MX1.25 2PIN Lithium battery header - for 3.7V Lithium battery, supports charging and discharging
  5. MX1.25 2PIN speaker header - Audiot signal output, supports connecting external speakers
  6. Dual microphones - Dual microphones array, supporting richer voice interaction functions
  7. SH1.0 4PIN 12C header - Standard 12C bus interface for easy expansion with sensors and other devices
  8. SH1.0 4PIN UART header - for debugging or data communication with other modules
  9. PWR button - for power supply ON/OFF when powered by Lithium battery, driver required
  10. BOOT button - Press and hold the BOOT button, then power up again to enter download mode
  11. PCF85063 - RTC chip
  12. Two 2 x 4PIN headers (2.54mm pitch) - for external module expansion
  13. Type-C port - for program burning and log printing
  14. W25Q128JV SI - 16MB Flash
  15. ES8311 DAC audio encoding chip - High-performance and low-power audio DAC
  16. QMI8658 - 6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
  17. TCA9554PWR - 8-bit 12C GPIO expander chip
  18. TF card slot - Supports FAT32-formatted TF cards for data expansion

Features

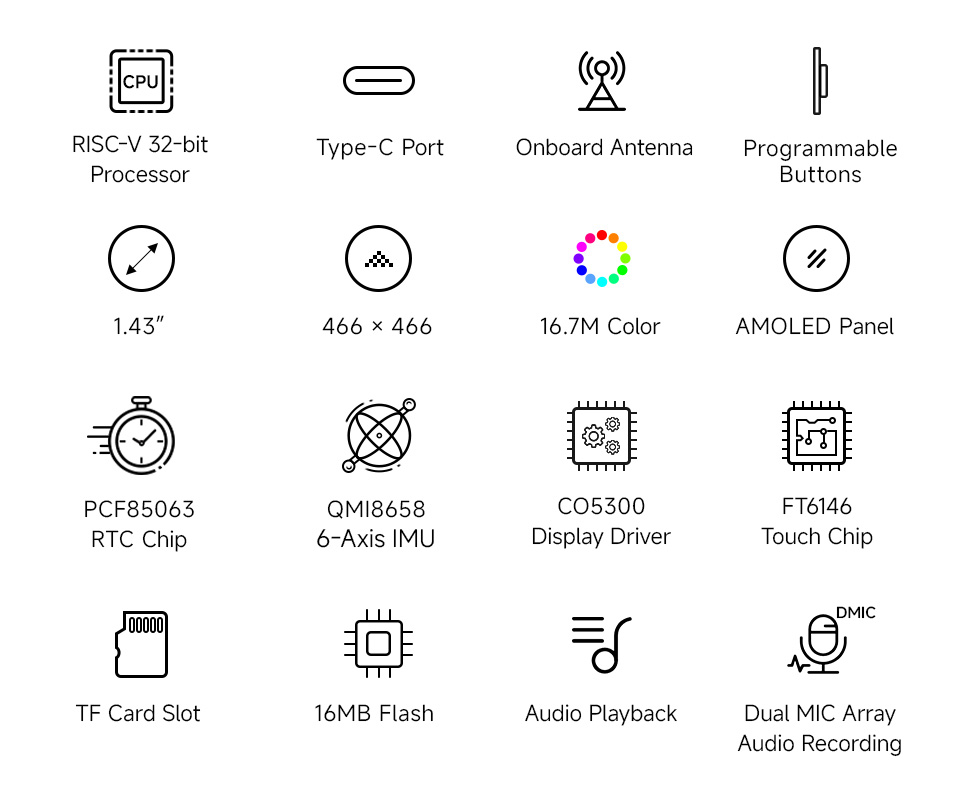

  • Microcontroller: ESP32-C6
  • Architecture: 32-bit RISC-V
  • Clock frequency: up to 160 MHz
  • Wireless connectivity: Wi-Fi 6 2.4 GHz, Bluetooth 5 LE, IEEE 802.15.4
  • SRAM: 512 kB HP, 16 kB LP
  • ROM: 320 kB
  • Flash memory: 16 MB
  • Display: AMOLED, round
  • Display size: 1.43 inch
  • Resolution: 466 x 466
  • Color depth: 16.7 M
  • Display interface: QSPI
  • Display driver: CO5300
  • Touch panel: capacitive
  • Touch controller: FT6146
  • IMU: QMI8658, 3-axis accelerometer, 3-axis gyroscope
  • RTC: PCF85063
  • Audio: ES7210 and ES8311 codecs, dual microphone
  • External storage: TF card slot
  • Battery connector: MX1.25, 3.7 V
  • Power supply: USB Type-C, lithium battery
  • Additional interfaces: I2C, UART, GPIO
  • Enclosure: protective case
  • Applications: wearable, HMI, AIoT

Kit includes

  • ESP32-C6-Touch-AMOLED-1.43-B development board with case - 1 pc
  • 8 Ω 2 W speaker - 1 pc
  • SH1.0 4-pin cable ~100 mm - 2 pcs
