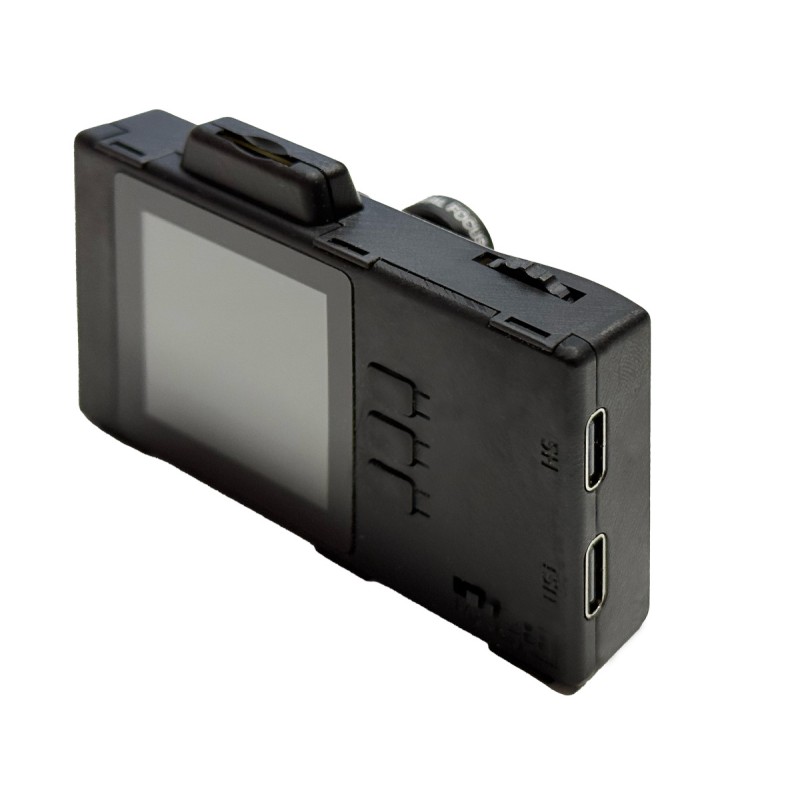

ESP32-P4-EYE – Development module for vision applications with ESP32-P4
search
  • ESP32-P4-EYE – Development module for vision applications with ESP32-P4
  • ESP32-P4-EYE – Development module for vision applications with ESP32-P4
ID: 1201324
zł199.91
Tax included

zł162.53 tax excl.

The ESP32-P4-EYE module enables the creation of wireless real-time image and audio processing systems. Its integrated camera, microphone, display, and wireless communication make it a versatile solution for projects in the fields of surveillance, machine vision, and edge AI. Espressif Systems ESP32-P4-EYE

24h
Available
Available quantity: 1

Description

The ESP32-P4-EYE module is an advanced development platform for real-time image and audio processing applications. It is based on the ESP32-P4 chip with a dual-core RISC-V processor and support for up to 32 MB of PSRAM. It supports USB 2.0, MIPI-CSI/DSI interfaces, a hardware H.264 encoder, and numerous peripherals, enabling the development of high-performance, low-power video and audio devices with network connectivity.

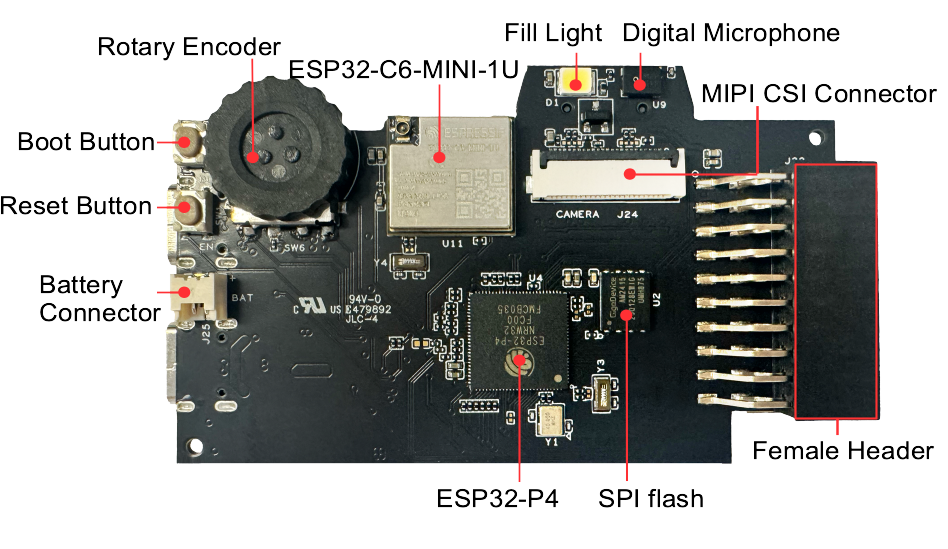

Equipped with the additional ESP32-C6-MINI-1U module, the board provides wireless communication via Wi-Fi and Bluetooth. Onboard components include a 2 MP camera with manual focus, a 1.54" LCD display with a resolution of 240 x 240 pixels, a digital microphone, a MicroSD card slot, and auxiliary lighting, enabling full image and audio acquisition without the need for external components.

The ESP32-P4-EYE supports a MIPI-CSI interface for connecting a camera, USB 2.0 in device mode, and an FPC connector for controlling an LCD display via SPI. A rotary encoder and user buttons enable the implementation of interactive functions. Goldpin connectors (2x10) facilitate the connection of external peripherals via jumper cables.

Power is available via a USB 2.0 port, a USB debug port, or a Li-Ion/Li-Po battery connector. The board offers battery charging and a charge status indicator.

Applications include intelligent monitoring, image and sound recognition, edge computing applications in IoT systems, and the implementation of AI models requiring local image processing with wireless communication.

Features

  • ESP32-P4 main chip with a dual-core RISC-V CPU and PSRAM support up to 32 MB
  • ESP32-C6-MINI-1U module for Wi-Fi and Bluetooth communication
  • 2 MP camera with adjustable focus, connected via MIPI-CSI
  • 1.54″ 240×240 px LCD display, SPI interface (ST7789 driver)
  • Digital microphone for recording and audio recognition
  • MicroSD card slot supporting SDIO or SPI mode
  • Rotary encoder and user buttons
  • Li-Ion/Li-Po battery connector with charging circuit and indicator
  • USB 2.0 connectors (communication and debug) and an FPC connector for the LCD
  • Dedicated goldpin connectors (2×10) for expansion
  • Support for MIPI-CSI/DSI, USB 2.0 HS, and H.264 encoder interfaces
  • Capacity 16 MB flash memory (SPI)
