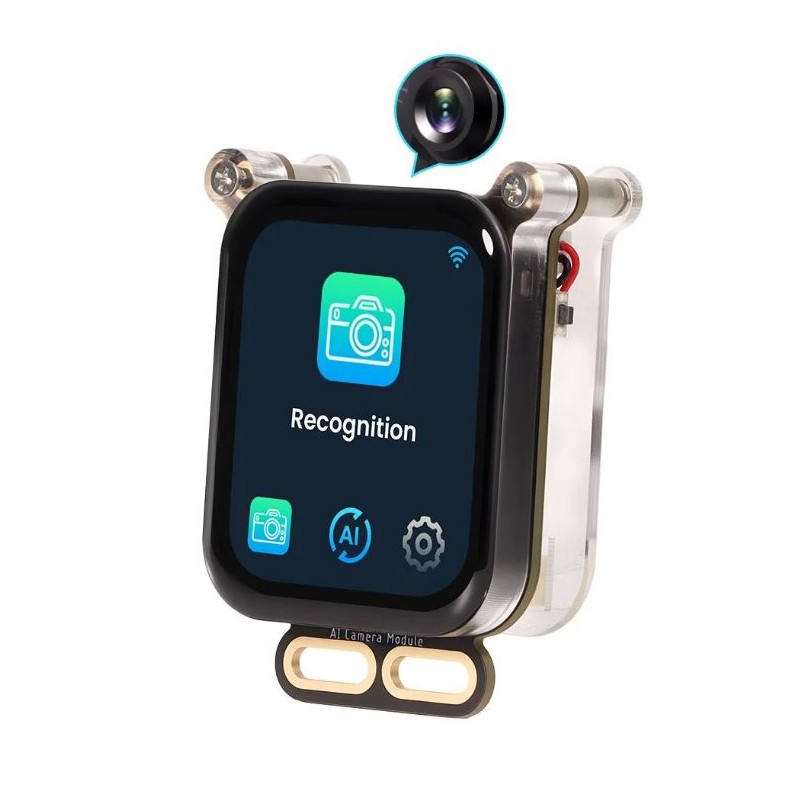

Main view
search
  • Main view
  • Top view
  • Assembled device – internal view
  • Control board with speaker
  • microSD (TF) card slot
  • Close-up of the camera module
  • Full kit
ID: 1203396
zł109.10
Tax included

zł88.70 tax excl.

AI vision development board based on the ESP32-S3 microcontroller, equipped with a 2 MP camera, capacitive TFT touchscreen, audio interfaces, and WiFi and Bluetooth connectivity, designed for local image, audio, and touch-based AI recognition. Elecrow SAD00006D

Delivery date unknown
Out-of-Stock

Description

The AI Camera Development Board is designed for developing and prototyping vision-based systems using artificial intelligence algorithms executed locally on the device. The board is based on the ESP32-S3 microcontroller featuring a dual-core Xtensa LX7 processor clocked up to 240 MHz, enabling tasks related to image analysis, audio processing, and user interface handling.

The integrated GC2145 image sensor with a resolution of 2 megapixels and a wide field of view enables face recognition, object recognition, and motion tracking applications. The built-in 1.83" TFT-LCD capacitive touchscreen allows local user interface operation and quick switching between recognition modes without the need for additional peripherals.


The module is equipped with a MEMS microphone and a speaker, enabling voice communication, intercom functionality, and custom voice commands. Integrated RGB LEDs and a white fill light allow operation in low-light environments.

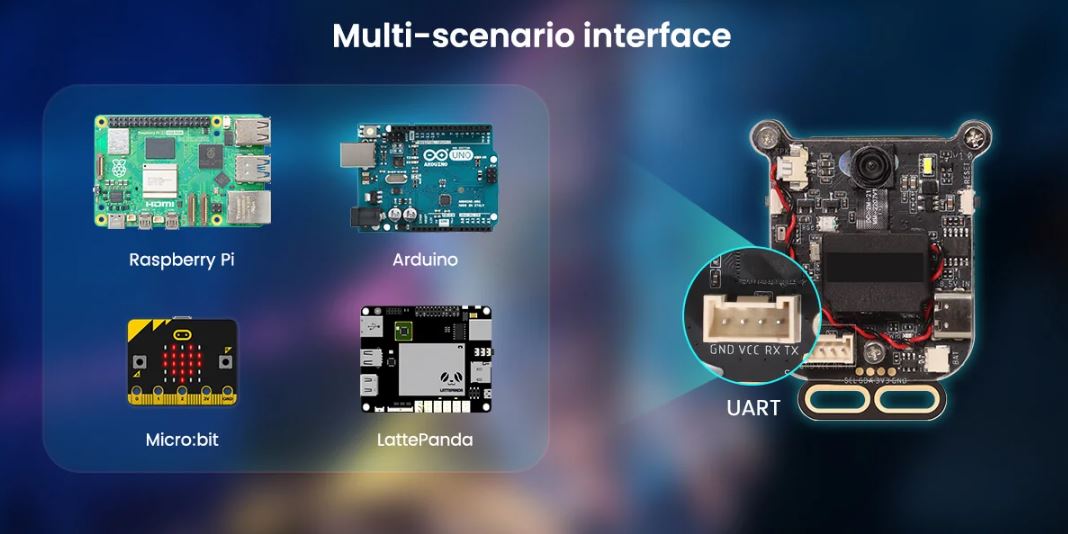

The board supports 2.4 GHz WiFi and Bluetooth 5 wireless connectivity, enabling real-time data transmission, remote control, and OTA firmware updates. Available UART interfaces and a battery connector allow integration with platforms such as Arduino and Raspberry Pi, as well as the development of battery-powered autonomous systems.


Built-in recognition models allow AI functions to run immediately after power-up, without requiring prior environment configuration.


Video showing the product.

Features

  • Microcontroller: ESP32-S3R8
  • Processor architecture: Dual-core Xtensa LX7
  • Clock frequency: up to 240 MHz
  • Flash memory: 16 MB
  • PSRAM: 8 MB
  • ROM: 384 kB
  • Wireless connectivity: WiFi 2.4 GHz, Bluetooth 5
  • Antennas: Built-in
  • Image sensor: GC2145
  • Camera resolution: 2 MP
  • Field of view: 120°
  • Supported camera sensors: OV2640, OV5640
  • Display: 1.83" TFT-LCD
  • Screen resolution: 320 × 240 px
  • Touch type: Capacitive
  • Audio:
    • Microphone: MEMS, sensitivity -26 dB ±1 dB, SNR 58 dB
    • Speaker: 8 Ω / 1 W

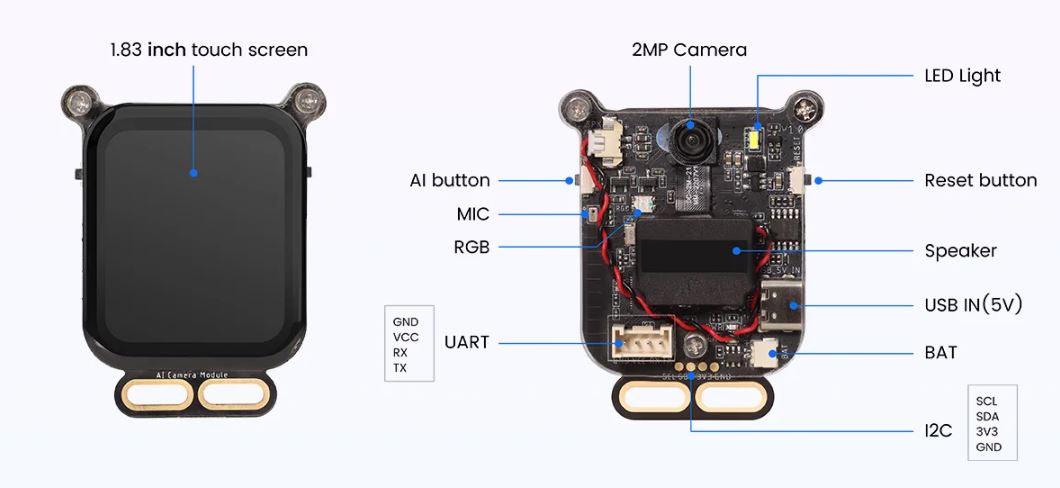

  • Interfaces:
    • UART: 4-pin connector, 2.0 mm pitch
    • Battery connector: 2-pin (battery not included)
    • USB: USB Type-C (power supply and programming)
  • Power supply: 5 V / 1 A
  • Buttons: RESET button, AI button
  • LED indicators: Power indicator, RGB LED, white fill light, battery indicator
  • Operating temperature range: -20°C ~ 70°C
  • Storage temperature range: -30°C ~ 80°C
  • Dimensions: 56 × 45 × 18.6 mm
  • Enclosure material: Acrylic
  • Net weight: 32 g

Kit includes

  • AI Camera Development Board
  • USB Type-C cable
  • UART cable
