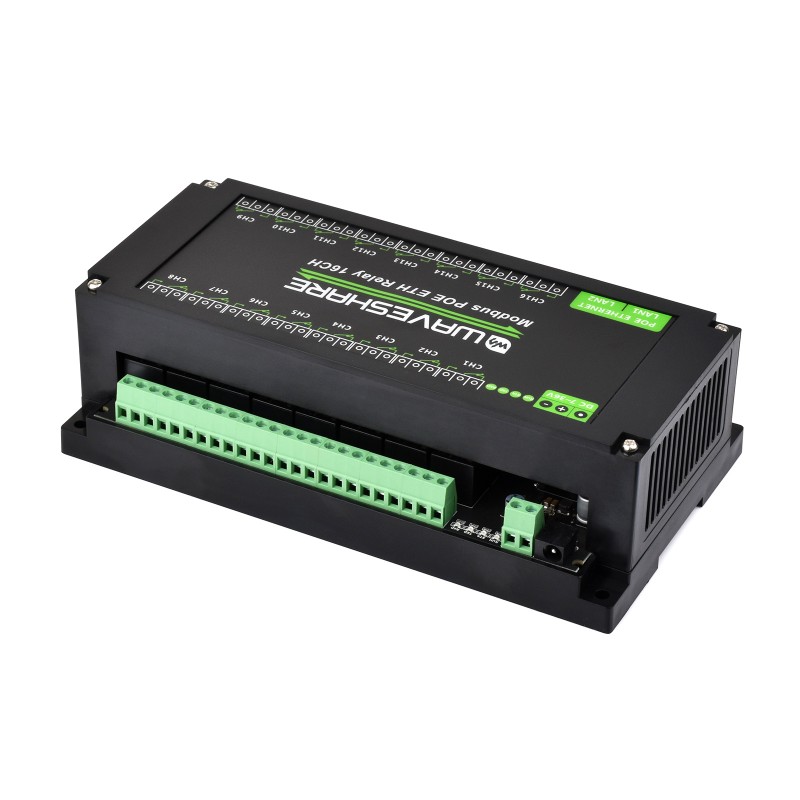

16-channel Ethernet relay module - Waveshare 30795
ID: 1197740
5902186305908
zł236.27
Tax included
zł192.09 tax excl.
Modbus POE ETH Relay 16CH is an industrial relay module enabling remote device control over Ethernet using Modbus TCP, RTU, and MQTT protocols. With dual RJ45 ports, PoE power supply, and a robust DIN rail-mountable enclosure, it is well-suited for automation installations, SCADA systems, lighting control, and other applications requiring reliable network communication and multi-channel load switching.
Description
Ethernet relay module with 16 independent channels, intended for industrial and automation applications, supporting Modbus TCP and Modbus RTU protocols. Equipped with two Ethernet ports enabling daisy-chain communication and PoE power supply (compliant with IEEE 802.3af). Also supports external power in the range of 7–36 V DC. Built-in optoisolation and surge protection ensure safe and stable operation in harsh industrial environments.
Relay control is performed over the Ethernet network using Modbus TCP/RTU or MQTT protocol commands. Configuration is possible via a web browser or dedicated software. The DIN rail-mountable enclosure is made of ABS plastic.
Features
- 16 relay channels, contact rating: up to 10 A 250 VAC / 30 VDC
- Ethernet communication: two RJ45 ports (daisy chain, redundancy, multi-module communication)
- Supported protocols: Modbus RTU, Modbus TCP, MQTT, TCP Server/Client, UDP, UDP Multicast, HTTP
- Configuration via web browser (Web) and software
- Supports DHCP and DNS
- Power supply: 7–36 V DC (screw terminal and DC jack), PoE (IEEE 802.3af)
- Optical isolation for relays and control logic
- Built-in relay driver circuit with protection diodes
- Reverse polarity protection
- ABS plastic housing for DIN rail mounting
- Status LEDs: power, transmission (TX/RX), Ethernet activity, MCU status
1197740
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
