A 2.4 GHz industrial wireless bridge designed for wireless Ethernet communication between PLC controllers, automation equipment, and monitoring systems. The device features two 10/100 Mbps Ethernet ports, supports DC or PoE power input, and delivers a theoretical wireless throughput of up to 300 Mbps with a communication range of up to 500 m. Factory-paired units, web-based configuration, DM Cloud remote management, and an industrial design rated for operation from -40°C to 70°C simplify deployment in demanding industrial environments. PUSR ST208S

24h
Available
Available quantity: 1
Kamami is the official distributor of USR converters. All products of this brand in our offer are original and come directly from the manufacturer.

Description

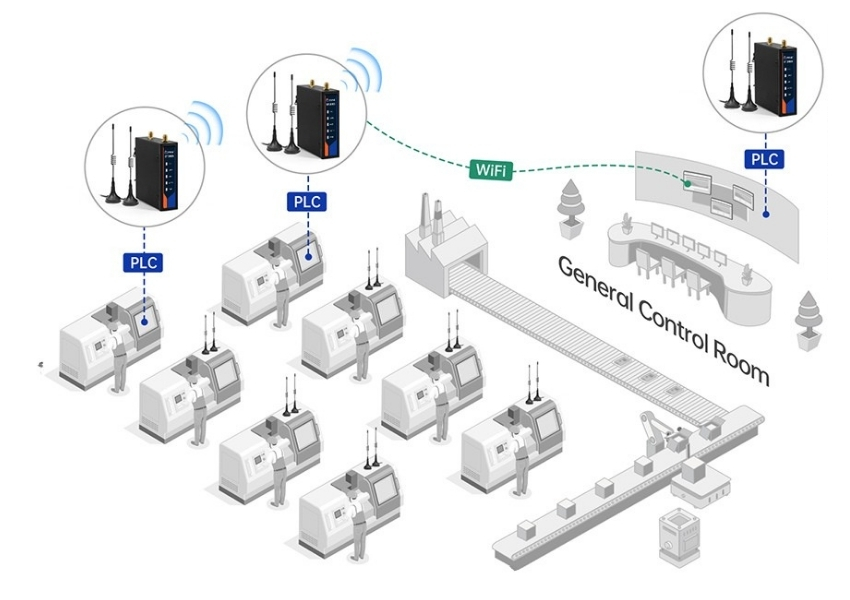

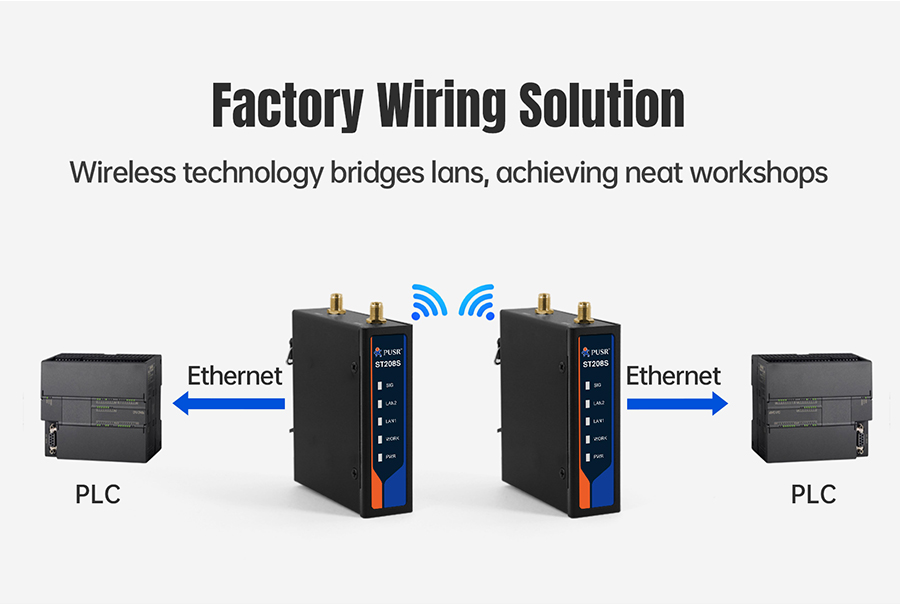

The PUSR ST208S is designed for wireless Ethernet communication in industrial applications. Operating in the 2.4 GHz band and based on a Qualcomm wireless solution, it replaces wired Ethernet connections with a stable wireless bridge between PLC controllers, HMI panels, IP cameras, NVR recorders, network switches, and other Ethernet-enabled devices. The external antenna design provides a theoretical wireless data rate of up to 300 Mbps and a communication range of up to 500 m in open environments, depending on operating conditions.

Wireless Ethernet Communication

The ST208S supports the IEEE 802.11b/g/n wireless standard with 2×2 MIMO technology and transmit power of up to 20 dBm. The device is equipped with two 10/100 Mbps RJ45 Ethernet ports, with LAN2 supporting PoE input. It supports both Point-to-Point and Point-to-Multipoint network topologies, enabling wireless communication between remote industrial network segments. Factory-paired devices allow immediate operation without manual wireless pairing or configuration.


Configuration and Remote Management

Configuration is performed through the integrated web interface. Available settings include static IP or DHCP addressing, wireless network parameters, transmit power, channel selection, channel bandwidth, and WPA/WPA2 security. The manufacturer also provides diagnostic tools such as Ping, Traceroute, and Nslookup, firmware updates, configuration import/export, scheduled automatic reboot, SSH support, and centralized device management through the PUSR DM Cloud platform.

Designed for Industrial Environments

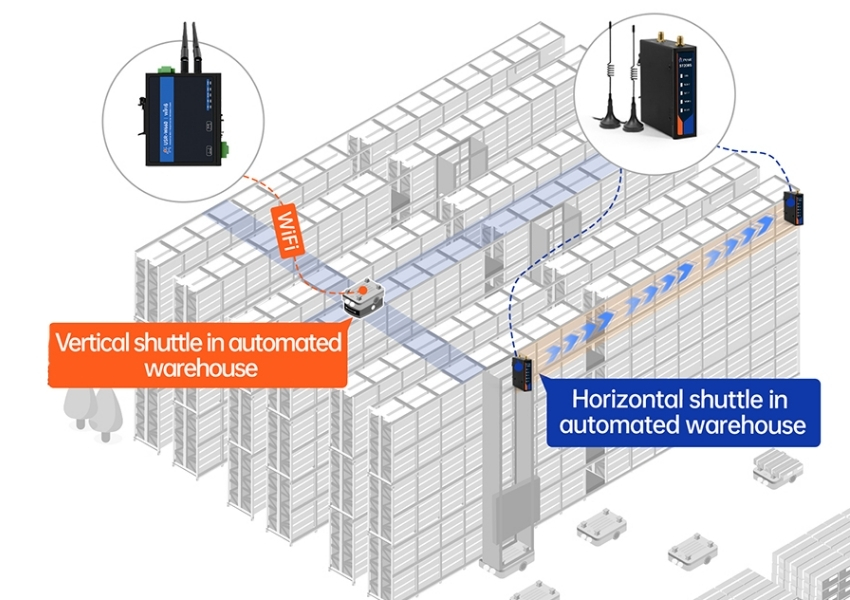

The device features a metal enclosure suitable for wall or DIN rail mounting. It operates within a temperature range of -40°C to 70°C and a humidity range of 10% to 95% RH (non-condensing). Power can be supplied via 9 V to 24 V DC or passive PoE. High resistance to electromagnetic interference together with the industrial-grade Qualcomm platform makes the bridge suitable for factory automation, warehouses, production facilities, and industrial monitoring systems.


Features

  • 2.4 GHz industrial wireless Ethernet bridge
  • Qualcomm wireless chipset
  • IEEE 802.11b/g/n support
  • Theoretical wireless throughput up to 300 Mbps
  • Wireless communication range up to 500 m
  • 2×2 MIMO technology
  • Transmit power up to 20 dBm
  • Two external 5 dBi antennas
  • Two 10/100 Mbps RJ45 Ethernet ports
  • LAN2 with PoE input support
  • 9 V to 24 V DC power input
  • Point-to-Point networking
  • Point-to-Multipoint networking
  • Factory-paired devices
  • Web-based configuration interface
  • Static IP and DHCP support
  • WPA/WPA2 wireless security
  • Adjustable transmit power
  • Adjustable wireless channel and bandwidth
  • Ping, Traceroute, and Nslookup diagnostic tools
  • Firmware upgrade support
  • Configuration import and export
  • Scheduled automatic reboot
  • SSH support
  • Centralized management via PUSR DM Cloud
  • Metal enclosure
  • Wall mounting
  • DIN rail mounting
  • Operating temperature: -40°C to 70°C
  • Operating humidity: 10% to 95% RH (non-condensing)

Kit includes

  • 2 × ST208S wireless bridge
  • 2 × PoE injector
  • 4 × WiFi antenna
  • 2 × Power adapter
  • Mounting accessories
  • Quick Start Guide
