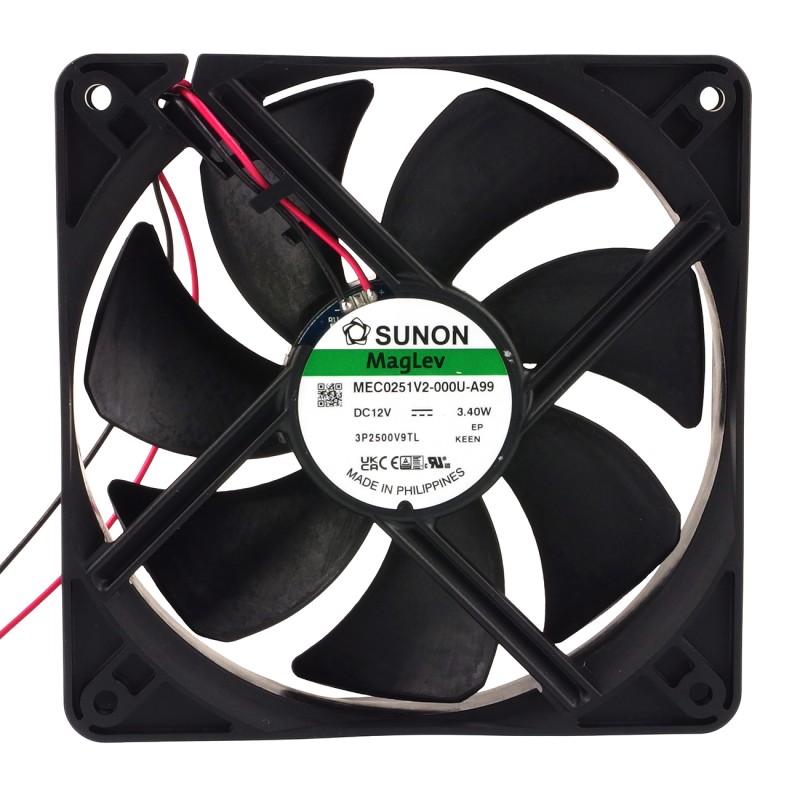

Sunon MEC0251V2-000U-A99 – Axial fan 120×120×25 mm, 12VDC
ID: 1201110
zł31.55
Tax included
zł25.65 tax excl.
Sunon MEC0251V2-000U-A99 fan with dimensions of 120 × 120 × 25 mm and 12 V DC voltage provides efficient cooling with an airflow of 158.1 m³/h. Equipped with a Vapo bearing and an auto-restart function, designed to operate in environments with temperatures from -10 to 70°C.
Description
Axial fan Sunon MEC0251V2-000U-A99 designed for efficient cooling of electronic systems and industrial components. Operates within a voltage range of 6 to 13.8 V DC, with optimal supply voltage of 12 V DC. Equipped with a brushless DC motor featuring an auto-restart function and a Vapo-type bearing, ensuring quiet and stable operation. The housing and impeller are made of self-extinguishing thermoplastic compliant with UL94V-0 standard. Provides an airflow of 158.1 m³/h at a static pressure of 5.58 mm H₂O and a noise level of 40.5 dBA. Rotational speed is 2700 rpm (±10%).
Properties
- Fan type: DC
- Fan kind: Axial
- Operating voltage: 6…13.8 V DC
- Supply voltage: 12 V DC
- Power consumption: 3.4 W
- Rated current: 0.279 A (±15%)
- Airflow: 158.1 m³/h
- Noise level: 40.5 dBA
- Rotational speed: 2700 rpm (±10%)
- Static pressure: 5.58 mm H₂O
- Bearing type: Vapo
- Motor: Brushless DC
- Impeller material: Thermoplastic
- Housing material: Thermoplastic
- Flammability rating: UL94V-0
- Insulation class: A
- Insulation resistance: ≥10 MΩ
- Operating temperature: -10…70°C
- Leads: 2 wires (24 AWG, 0.33 m)
- Gross weight: 164.3 g
- Additional functions: Auto-restart
1201110
Data sheet
- Voltage
- 6 - 13,8 V
- Power
- 3,4 W
- Length
- 120 mm
- Width
- 120 mm
- Height
- 25 mm
- Weight
- 164,3 g
- Noise level
- 40,5 dBA
- Air flow efficiency
- 158,1 m³/h
- Rated current
- 279 mA
- Fan type
- Axial
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Other products in the same category (16)
The SUNON 80x80x25mm DC axial fan offers high cooling performance, reliability thanks to Vapo bearings and an autorestart function, making it an ideal solution for applications requiring intensive cooling and durability in a compact form. Sunon PF80252V1-1000U-A99
zł29.90
1 weeks
No product available!
The SUNON 50x50x15 mm DC fan is a quiet, energy-saving cooling solution with reliable operation and long life, ideal for applications in compact electronic devices. Sunon HA50151V4-1000U-A99
zł12.90
24h
Available quantity: 8
Available
The Sunon axial fan is a compact, quiet and efficient cooling solution, ideal for a variety of applications, ensuring the optimal operating temperature of components and long life. Sunon MF40202V2-1000U-A99
zł21.89
24h
Available quantity: 30
Available
The SUNON 60x60x25 mm DC fan is a reliable and quiet cooling solution with a wide operating voltage range, ideal for applications in electronics and industrial cooling systems. Sunon EF60252S1-1000U-A99
zł14.90
24h
Available quantity: 16
Available
The axial fan is an efficient and reliable cooling device with high air flow, low noise level, ideal for a variety of applications, guaranteeing the optimal operating temperature of components and a long life.
zł9.90
4 weeks
No product available!
The SUNON 40x40x20 mm DC fan is a robust and reliable cooling solution, offering high performance and safety in compact electronic applications. Sunon MF40201VX-1000U-A99
zł16.61
24h
Available quantity: 8
Available

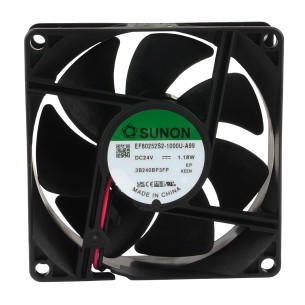

Sunon EF80252S2-1000U-A99 is a compact 24 V DC axial fan with dimensions of 80×80×25 mm, equipped with a sleeve bearing and a brushless motor with auto-restart. It features quiet operation (30 dBA), an airflow capacity of 62.86 m³/h, and a durable construction, making it a reliable solution for cooling industrial and electronic devices.
