ID: 1196980
5902186301061
zł23.57
Tax included

zł19.16 tax excl.

A compact IoT board with a 160 MHz RISC-V processor, offering support for Wi-Fi 6, Bluetooth 5, Zigbee 3.0, Thread 1.3 and Matter. With a built-in lithium battery charger and voltage monitoring function, it is ideal for mobile and energy-saving applications. The board can act as both an end device and a network gateway, making it extremely versatile in modern smart home systems. DFRobot DFR1117

24h
Available
Available quantity: 8
Kamami is the official distributor of DFRobot modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

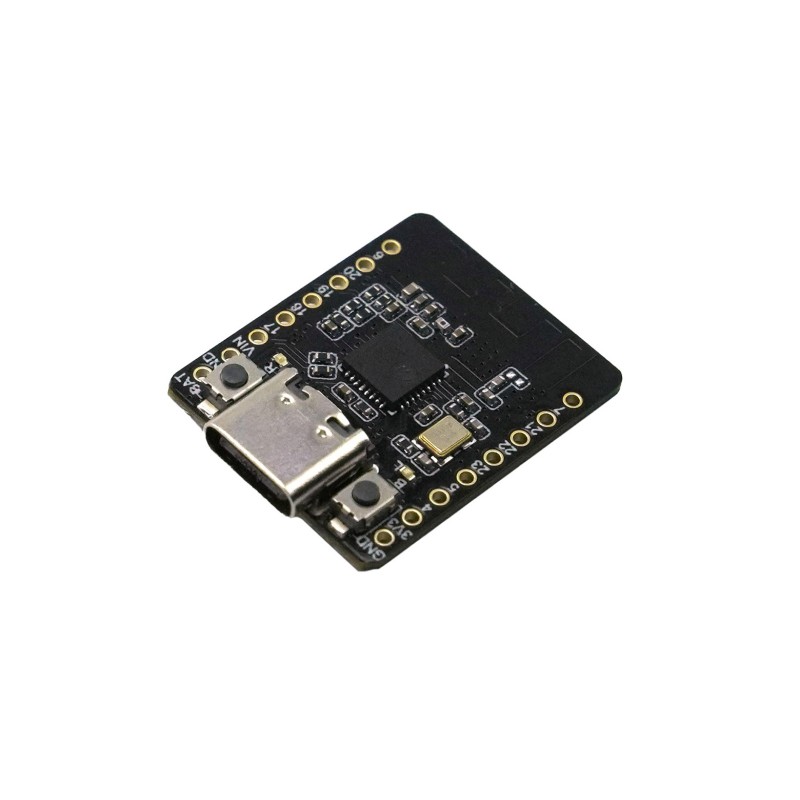

The Beetle ESP32-C6 is a miniature IoT development board based on the ESP32-C6 chip, featuring a compact form factor. It is designed for low power consumption, making it an ideal choice for smart home applications and wearable devices. Equipped with a high-performance 32-bit RISC-V processor running at 160 MHz, it supports multiple communication protocols such as Wi-Fi 6, Bluetooth 5, Zigbee 3.0, Thread 1.3, and Matter, offering great flexibility and compatibility with a wide range of IoT devices.


The board also integrates lithium battery charging management, eliminating the need for external power modules. In addition, the battery voltage monitoring feature allows for real-time power status tracking, ensuring uninterrupted device operation. With Wi-Fi 6 support and TWT technology, the board enables significant energy consumption reduction. The ability to create Matter end devices or use it as a Zigbee or Thread gateway makes the Beetle ESP32-C6 a highly versatile solution in the modern IoT ecosystem. It’s an excellent board for hobbyists, students, and engineers developing small, energy-efficient projects.


Features

  • Processor: 32-bit RISC-V, 160 MHz
  • Memory: 512KB SRAM, 320KB ROM, 4MB Flash, 16KB RTC SRAM
  • Supported protocols: Wi-Fi 6 (802.11ax), BLE 5.0, Zigbee 3.0, Thread 1.3, Matter

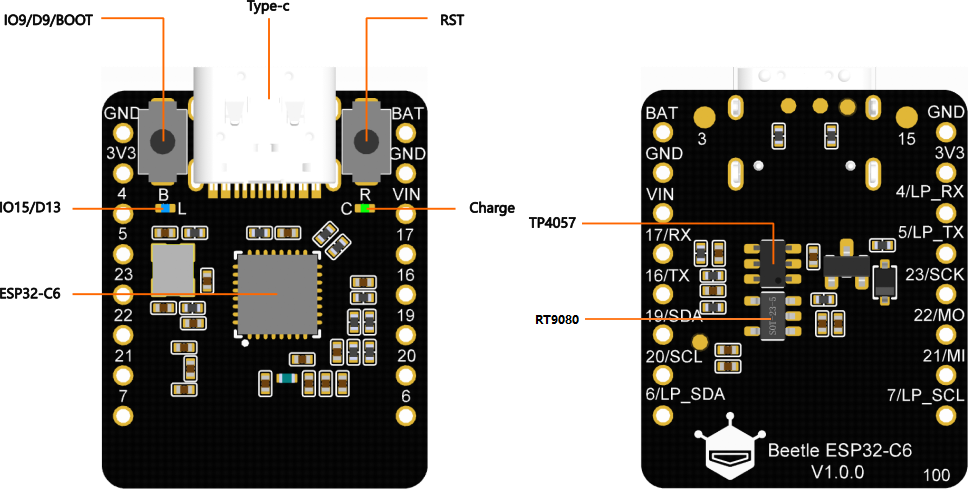

  • Integrated lithium battery charging management
  • Battery voltage measurement
  • Current in Deep Sleep mode: 37µA
  • USB Interface: USB 2.0 CDC

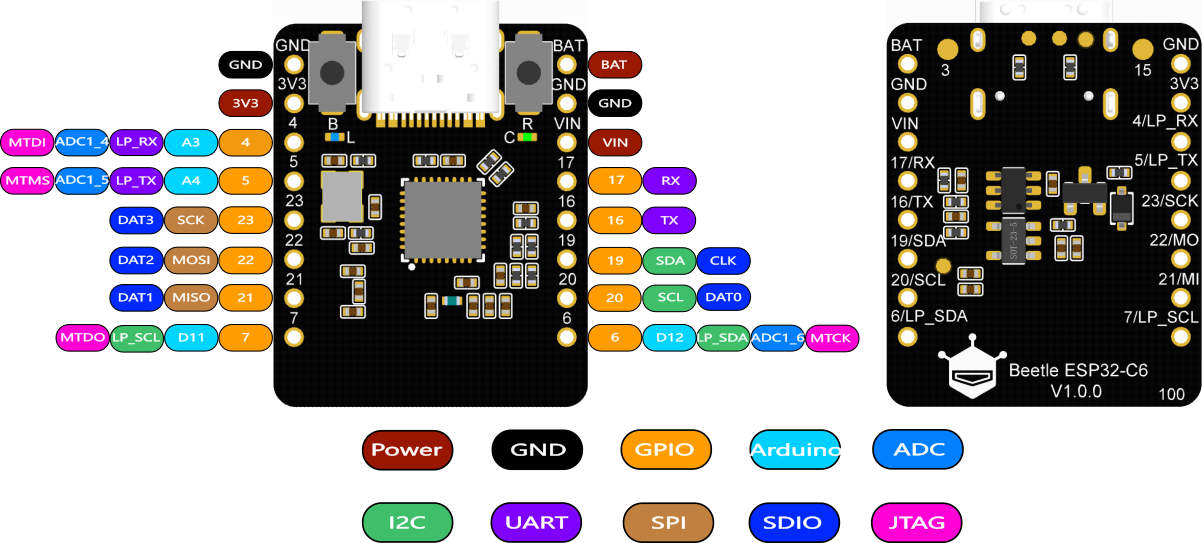

  • Number of I/O pins: 13 digital
  • PWM: 6 channels
  • Communication interfaces: 3x UART, 2x I2C, 1x SPI, 1x I2S
  • IR support: 5 TX channels and 5 RX channels
  • ADC: 1 × 12-bit SAR ADC (7 channels)
  • Power supply: 3.3V / 5V via USB-C / VIN
  • Operating temperature: -10~60°C
  • Dimensions: 25 x 20.5 mm

Kit contains

  • Beetle ESP32 C6 Mini
  • 2 x 10-pin 2.54mm goldpin headers
1196980

Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20

Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
