4-Channel Digital Isolator ISO6542 - Pololu 5744
ID: 1206765
zł10.71
Tax included
zł8.71 tax excl.
4-channel galvanic isolation module based on the Texas Instruments ISO6542, designed for digital communication between electrically isolated circuits. It provides 2 channels in one direction and 2 in the opposite direction, data rates up to 50 Mbps per channel, and 400 VRMS functional isolation. Pololu 5744
Description

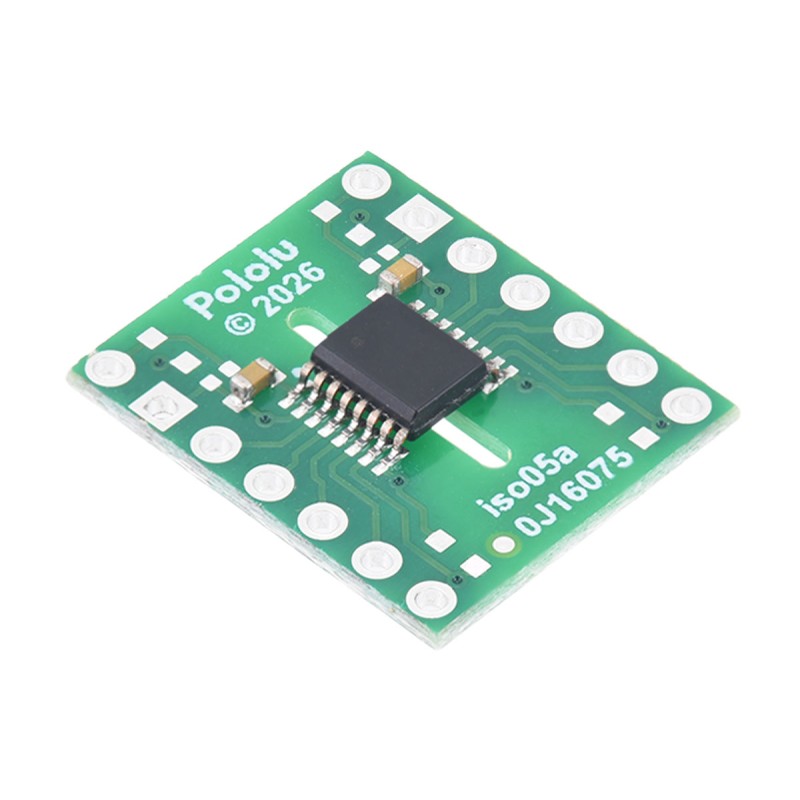

Digital isolator module Pololu 5744 uses the Texas Instruments ISO6542 to provide galvanic isolation between digital signal lines of two electronic circuits. The module features 4 communication channels, with 2 channels operating in one direction and 2 in the opposite direction. Maximum data rate reaches 50 Mbps per channel, making the module suitable for high-speed digital interfaces and control systems.
Both sides of the isolator have independent VCC1/GND1 and VCC2/GND2 power connections, and their grounds are not connected. Each side can operate within 1.71–1.89 V or 2.25–5.5 V supply ranges, while different supply voltages on the two sides allow the module to also function as a logic-level converter. EN1 and EN2 inputs provide control over the outputs on both sides of the isolator.
The device provides 400 VRMS functional isolation, while a routed slot in the carrier board increases the minimum PCB creepage distance to approximately 5.3 mm. In the event of input signal or power loss, the outputs default to a high state (Default High). The 2.54 mm pitch through-holes are compatible with standard male headers and solderless breadboards.
Features
- Manufacturer: Pololu
- Pololu product number: 5744
- IC: Texas Instruments ISO6542
- Device type: 4-channel digital isolator
- Isolation: functional, galvanic
- Channel configuration: 4 channels, 2 forward and 2 reverse
- Maximum data rate: 50 Mbps per channel
- Default output state: high
- Supply voltage ranges: 1.71–1.89 V or 2.25–5.5 V
- Side supplies: independent VCC1/GND1 and VCC2/GND2
- Logic-level conversion support
- Output control: EN1 and EN2
- Working isolation voltage: 400 VRMS
- Minimum PCB creepage distance: 5.3 mm
- Pin pitch: 2.54 mm
- Board dimensions: approximately 15.2 × 17.8 mm
