zł7.67 tax excl.

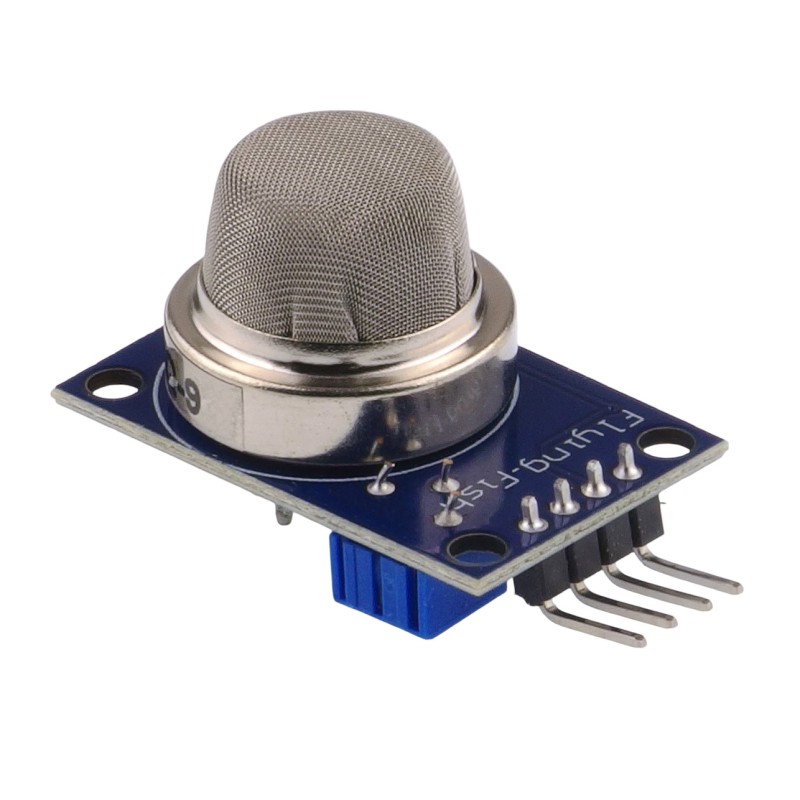

Module with a knock-on sensor for measurement of methane, propane and carbon monoxide (MQ-9) concentrations. The module has an analogue output and an output triggered by exceeding the threshold of sensitivity.
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Module with MQ-9 sensor to detect concentrations of methane, propane and carbon monoxide in the air.
Two outputs - analog and digital with adjustable sensitivity using a potentiometer.
properties
- High sensitivity to gases:
- Methane
- propane
- Carbon monoxide
- Digital output with adjustable sensitivity
- Analog output
- Measuring range: 10 - 10,000ppm
- Working temperature: -10 ~ 50 ° C
- Power supply: 5 V
- Power consumption: 150 mA
- Dimensions: 32 x 20 x 22 mm
Dimensions of the module
