New products
New products
zł7.72 tax excl.

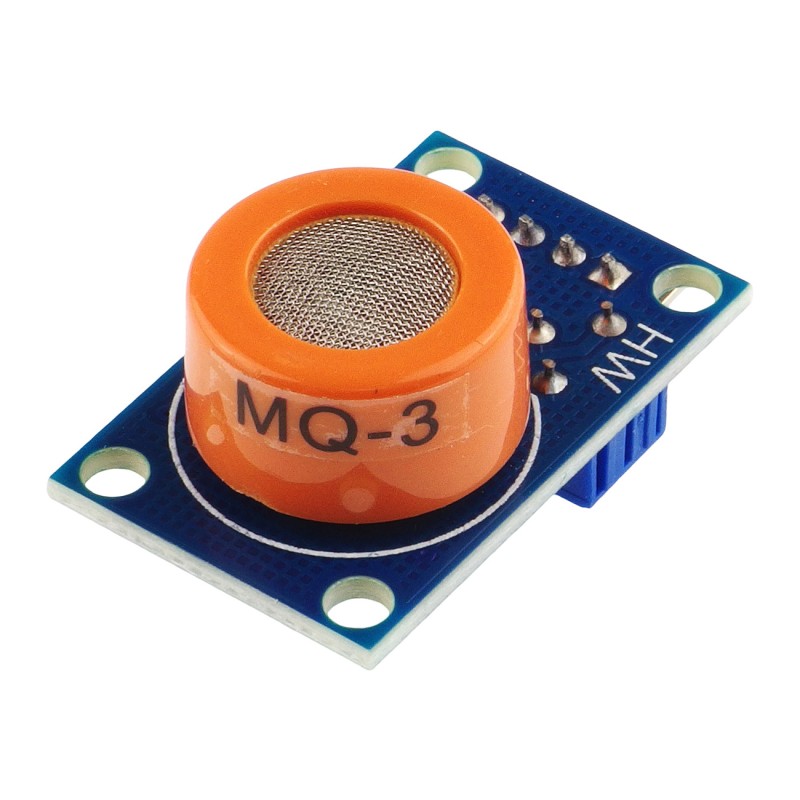

The module with an alcohol sensor (MQ-3), allows you to measure the concentration of ethanol in the air. The module has an analogue output and an output triggered by exceeding the threshold of sensitivity.
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Module with MQ-3 sensor that allows detection of alcohol concentration in the air. Two outputs - analog and digital with adjustable sensitivity using a potentiometer.
properties
- Digital output with adjustable sensitivity
- Analog output
- Measuring range: 0.05 mg / L - 10mg / L
- Power supply: 5 V
- Power consumption: 150 mA
- Working temperature: -10 ~ 50 ° C
- Dimensions: 32 x 20 x 22 mm
Dimensions and arrangement of elements
To download
You might also like
The MQ-3 sensor allows you to measure the concentration of alcohol vapors. The measuring range of the sensor is in the range of 0.05 mg / L to 10mg / L, and an analogue signal is obtained at the output.
