Gravity: ENS160 Air Quality Sensor - module with an air quality sensor
ID: 1178534
5902186310124
zł91.17
Tax included
zł74.12 tax excl.

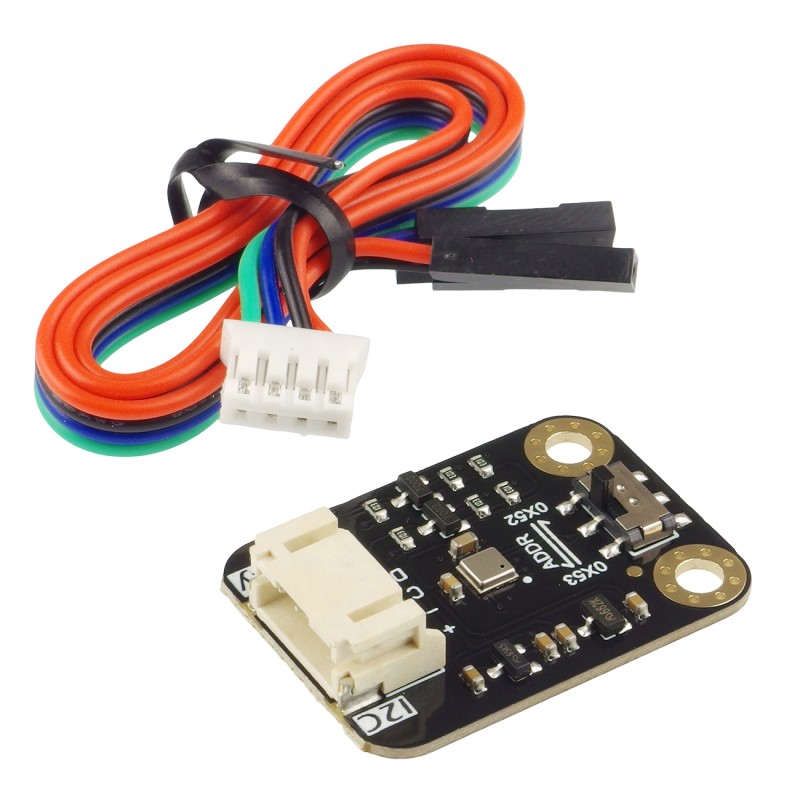

Air quality sensor module based on the ENS160 system. It communicates via the I2C interface (Gravity connector). DFRobot SEN0514
Description
Air quality sensor module based on the ENS160 system. It has been specially designed for indoor air quality monitoring and offers the detection of multiple IAQ parameters (TVOC, eCO2, AQI). The innovative TrueVOC ™ technology provides the sensor with the highest accuracy, fast response and protection against interference. The module is powered with the voltage of 3.3 V to 5,5 V and communicates via the I2C interface (Gravity). Full documentation is available on the product Wiki page.
Features
- I2C interface
- I2C address: 0x52 or 0x53 (default)
- ECO2 measuring range: 400 to 65,000 ppm
- TVOC measurement range: 0 to 65,000 ppb
- Power supply: from 3.3 V to 5,5 V
- Current consumption: 29 mA
- Working temperature: -40 to 85 ℃
- Working humidity: 5 to 95% RH
- Dimensions: 30 x 22 mm
Kit contains
- Gravity: ENS160 Air Quality Sensor
- Gravity 4-pin cable
1178534
Data sheet
- Interface
- I2C
- Type of sensor
- inny
- Power supply voltage
- 3,3 V
- Concentration measurement
- VOC/CO2
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
