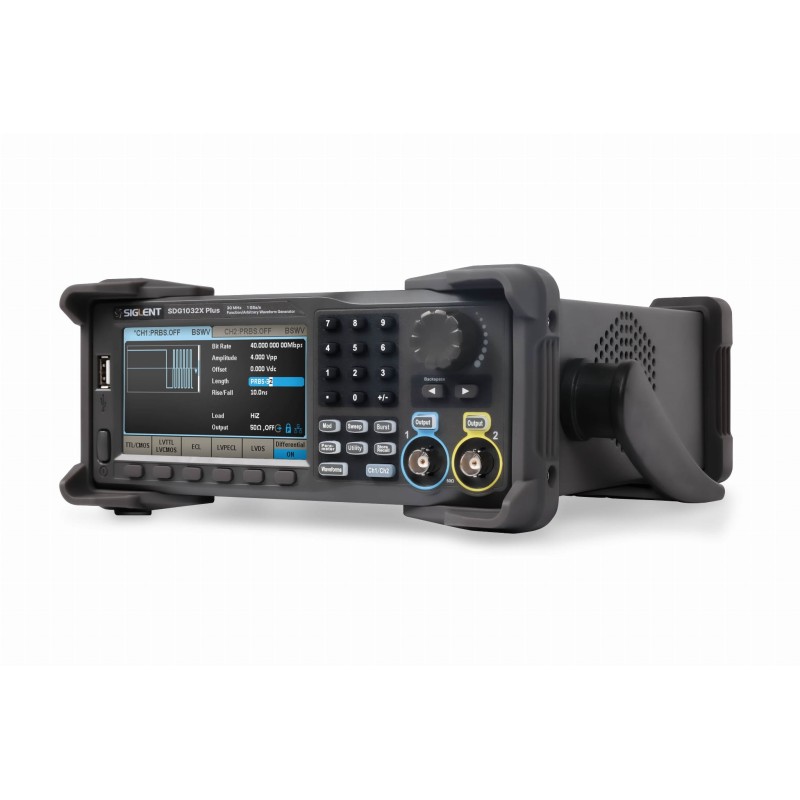

Siglent SDG1032X Plus - 2-channel 30MHz function generator
ID: 1195152
5902186302914
zł1,929.00
Tax included
zł1,568.29 tax excl.
Advanced dual-channel function generator with 30MHz bandwidth and 1GSa/s sampling rate, offering precise arbitrary and square waveforms thanks to TrueArb and EasyPulse technologies. Equipped with 16-bit resolution, amplitude up to 20Vpp and functions such as PRBS, analog/digital modulation and frequency counter, it is suitable for signal testing and measurement automation. The device supports remote control via LAN/USB and web browser, and the 4.3-inch LCD screen provides convenient operation. Siglent SDG1032X Plus
Description
The SIGLENT SDG1032X Plus is a modern dual-channel arbitrary waveform generator designed for demanding laboratory and industrial applications. The device offers a bandwidth of up to 30 MHz and sampling rate of 1 GSa/s, delivering exceptional signal precision and quality. With TrueArb and EasyPulse technologies, it overcomes the limitations of traditional DDS architecture, resulting in low jitter distortion and high fidelity for square and arbitrary waveforms. It supports features such as multi-pulse output, sequential waveform playback, and PRBS patterns up to 40 Mbps, making it ideal for testing dual-pulse powered devices. A high 16-bit vertical resolution allows for extremely accurate waveform generation, while the maximum output amplitude of 20 Vpp ensures flexibility for a wide range of applications. The SDG1000X Plus also provides extensive analog and digital modulation options, harmonics function, waveform combining, and a built-in frequency counter. Remote control via a built-in web server enables operation through any web browser. Interface options, including USB, LAN, and optional GPIB, simplify integration into measurement systems. All of this is complemented by a clear 4.3” LCD display for intuitive operation and complete parameter control.
Features
- Dual-channel arbitrary waveform generator
- Maximum output frequency: 30 MHz
- Maximum output amplitude: 20 Vpp
- Sampling rate: 1 GSa/s
- Vertical resolution: 16-bit
- TrueArb technology: Arb support up to 8 Mpts, 1 μSa/s ~ 250 MSa/s
- Support for sequential waveform and multi-pulse function
- PRBS up to 40 Mbps
- 196 built-in arbitrary waveforms
- Modulations: AM, DSB-AM, FM, PM, FSK, ASK, PSK, PWM
- Functions: Sweep, Burst, harmonics, waveform combining
- Precision frequency counter
- Display: 4.3” LCD
- Interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), GPIB (optional)
- Built-in WebServer – browser-based remote control
- Dimensions: 260 x 107 x 296 mm
Kit contains
- Siglent SDG1032X Plus
- Power cord
- Calibration certificate
- USB cable
