- New

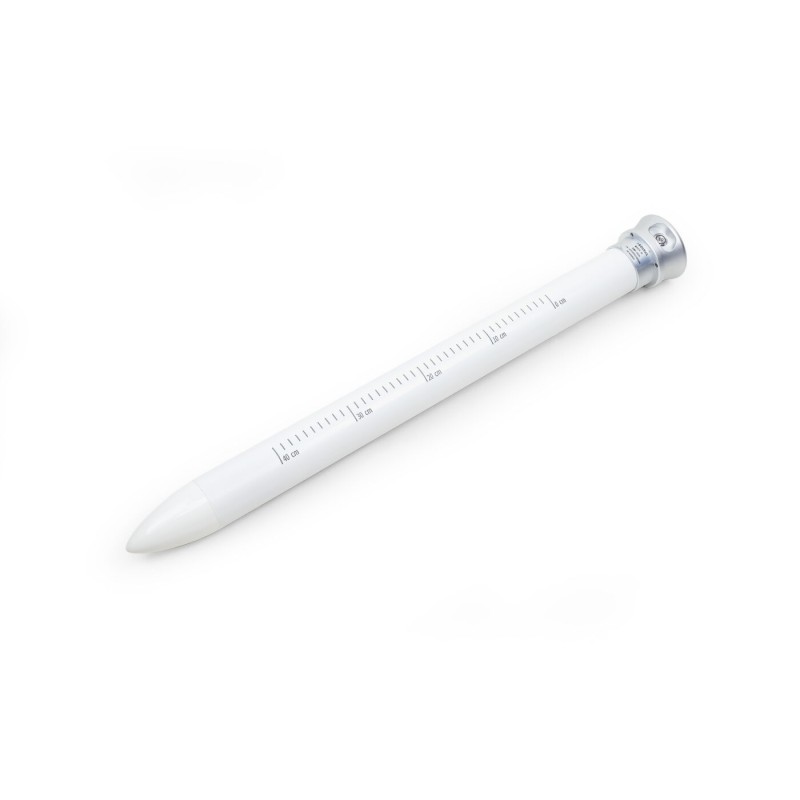

RS485 Multi-Depth Sensor for Soil Moisture, Temperature, and EC Measurement - Seeed Studio 101990982
ID: 1200501
zł1,722.34
Tax included
zł1,400.28 tax excl.
Seeed Studio 101990982 is a professional RS485 soil sensor that enables simultaneous measurement of moisture, temperature, and electrical conductivity at four different depths. With its robust design and IP68 protection, it is suitable for long-term applications in agriculture, greenhouses, and environmental monitoring, providing reliable data for irrigation and crop optimization.
Description
Industrial IP68 soil monitoring sensor measuring moisture, temperature, and electrical conductivity (EC) at four depths: 10 cm, 20 cm, 30 cm, and 40 cm. With high precision and resistance to soil salinity, it is suitable for agriculture, greenhouses, and scientific research. Compliance with the MODBUS-RTU RS485 protocol allows easy integration with data loggers such as the SenseCAP Sensor Hub 4G, enabling remote data reading and analysis. The high-quality plastic housing provides IP68 protection and corrosion resistance.
Properties
- Measurement of soil moisture, temperature, and electrical conductivity (EC) at 4 depths: 10 cm, 20 cm, 30 cm, 40 cm
- Soil temperature range: -30～70℃, accuracy ±0.5℃, resolution 0.1℃
- Moisture range: 0～70%, accuracy ±3%, resolution 0.1%
- Conductivity (EC) range: 0～5000 μs/cm (expandable to 20000 μs/cm), accuracy ±10%, resolution 10 μs/cm
- Interface: RS485, MODBUS-RTU protocol
- Power supply: 12–24 V DC, current consumption 40 mA (12 V) / 20 mA (24 V)
- Response time <100 ms, startup time 10 s
- Protection rating: IP68, corrosion resistant
- Operating temperature: -10℃～55℃
- Cable length: 10 m
- Weight: 1505 g
Set includes
- 1 × RS485 multi-depth sensor (moisture, temperature, EC)
- 1 × 10 m waterproof cable
1200501
Data sheet
- Interface
- RS485
- Type of sensor
- inny
- Power supply voltage
- 12/24V DC
- Sensor type
- Temperature and humidity
