A robust sensor for approximate measurement of nitrogen, phosphorus and potassium (NPK) levels in soil, ideal for precision farming and field applications. With a rugged design (IP68), RS485 MODBUS-RTU communication and a wide power supply range, it allows easy integration with Arduino-type systems and operation in harsh environmental conditions. DFRobot SEN0605

24h
Available
Available quantity: 2
Kamami is the official distributor of DFRobot modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

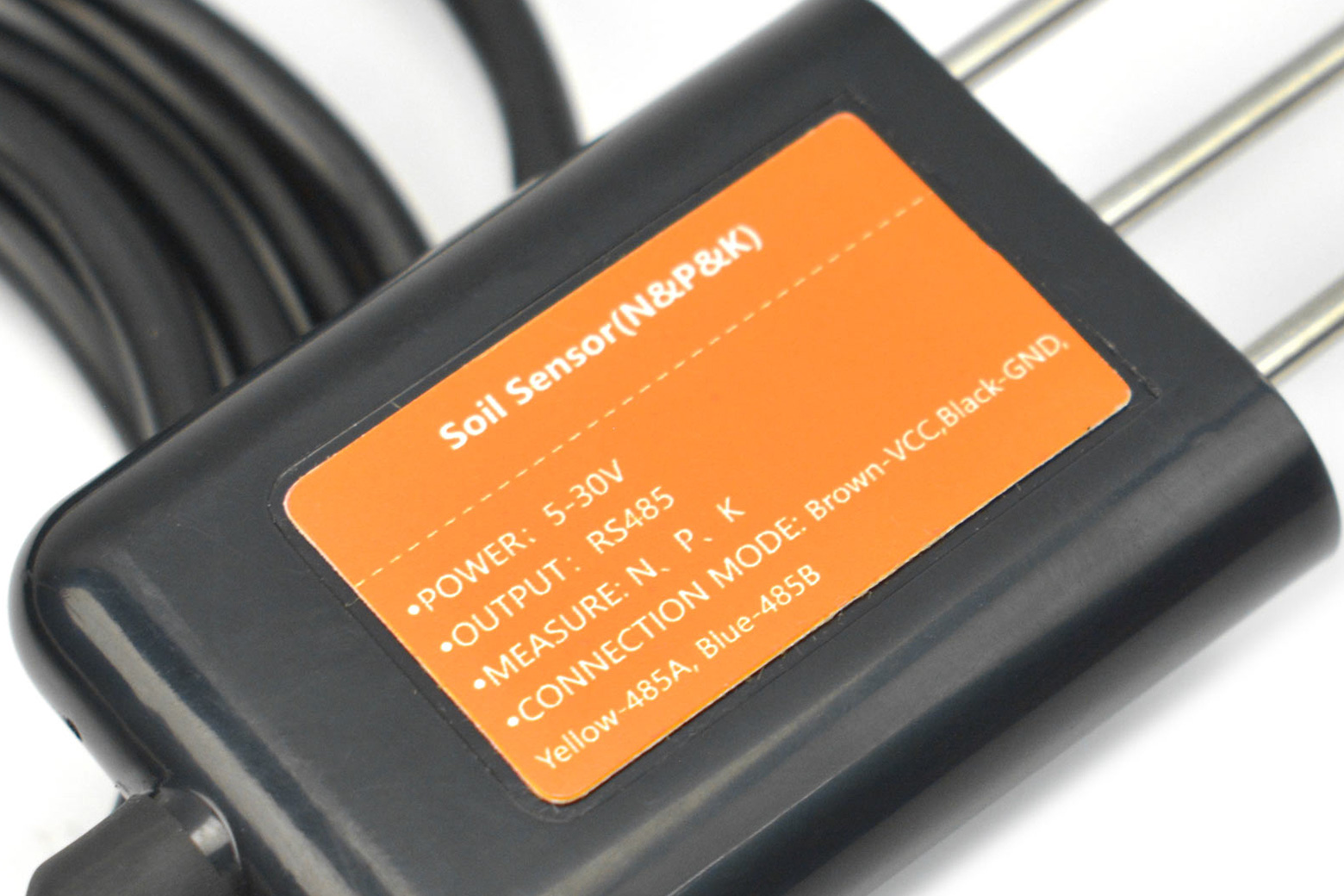

The Soil Sensor is an advanced sensor designed to measure the levels of nitrogen (N), phosphorus (P), and potassium (K) in soil, supporting the optimization of soil fertility and creating ideal conditions for plant growth. With a wide power supply range of 5 to 30 V and data output in the RS485 MODBUS-RTU format, the device is compatible with Arduino UNO and TTL to RS485 converters, making integration easy. The sensor is made from high-quality 316 stainless steel, resistant to corrosion, salt, and long-term electrolysis. Hermetically sealed with epoxy resin, it achieves an IP68 protection rating, allowing for long-term burial in soil or immersion in water.


The sensor is suitable for precision agriculture, greenhouses, vegetable and flower cultivation, pastures, as well as scientific experiments and grain storage. Thanks to its compact dimensions and environmental resistance, it can operate in various soil types without losing accuracy. Measuring NPK enables better fertilization tailored to plant needs, improving yields and crop quality. However, the sensor should be treated as an indicative tool—it does not replace professional laboratory instruments but provides effective support for soil condition monitoring.

Features

  • Output mode: RS485 (MODBUS-RTU)
  • Detection parameters: Nitrogen (N), Phosphorus (P), Potassium (K)
  • NPK measurement range: 0–2999 mg/kg (mg/L)
  • Resolution: 1 mg/kg (mg/L)
  • Accuracy: ≤5%
  • Protection rating: IP68 (waterproof and dustproof)
  • Special anti-corrosion electrode made of 316 stainless steel
  • Sealing material: black, flame-retardant epoxy resin
  • Power supply voltage range: DC 5 to 30V
  • Power consumption: 0.15W at 12V
  • Operating temperature: 0°C to +55°C
  • Cable length: 2 m
  • Dimensions: 123 x 45 x 15 mm
