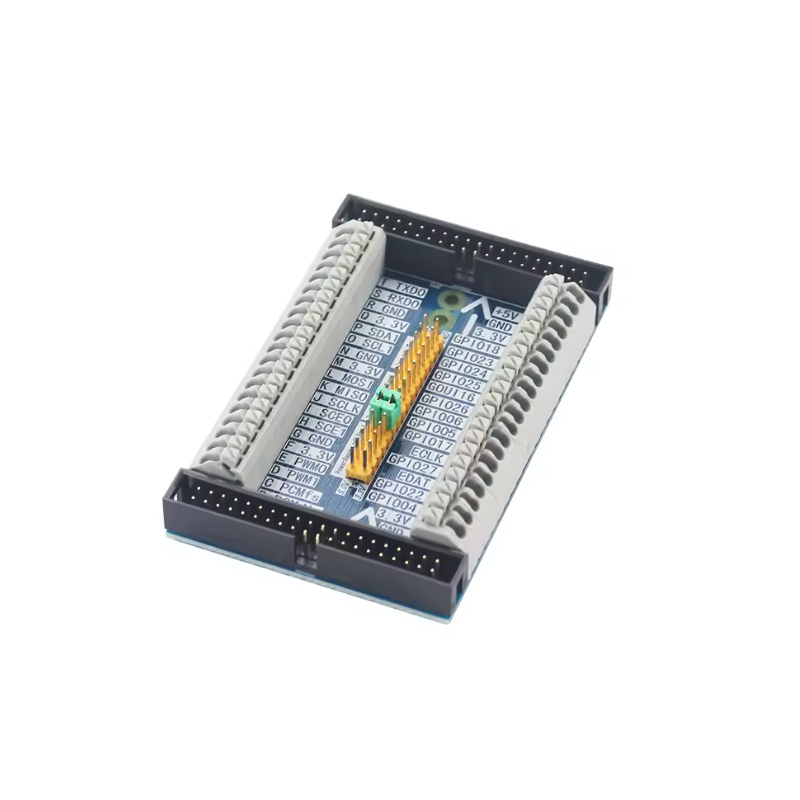

GPIO breakout expander for Raspberry Pi 5/4/3/2/B+ with quick-connect terminals – cascade type
ID: 1200539
zł21.89
Tax included
zł17.80 tax excl.
GPIO Board A is a universal GPIO expansion board with quick-connect terminals for Raspberry Pi, supporting all major interfaces and power lines. Thanks to full pin labeling and support for cascading connections, it is an ideal solution for expanding measurement setups, automation systems, and educational electronic projects.
Description
GPIO Board A is a GPIO breakout expander module designed for the Raspberry Pi, equipped with screw-type quick-connect terminals that allow fast and secure wire connections without soldering. All GPIO pins are clearly labeled on the board to simplify signal identification and ensure correct wiring. The module supports I2C, SPI, UART, PWM communication as well as power and ground lines.
Thanks to its dual 2×20 IDC cascade connectors, additional expansion modules can be connected in series, making Board A an excellent choice for educational, prototyping, and industrial applications.
Properties
- Name: GPIO Board A
- Type: GPIO breakout expander
- Compatibility: Raspberry Pi 5 / 4B / 3B+ / 3B / 2B / B+
- Interface: 2×20-pin IDC connector with cascade support
- Output terminals: screw-type quick-connect terminals for each pin
- Markings: printed pin functions (GPIO, UART, I2C, SPI, PWM, power)
- Power lines: 3.3 V, 5 V
- GND lines: common ground, clearly marked
- Power switch: selects power source (Raspberry Pi / external)
- Dimensions: 90 × 55 × 18 mm (approx.)
- Mounting: screw holes, pass-through connectors
1200539
Data sheet
- Compatible with
- Raspberry Pi 5/4/3/2 B/B+
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
