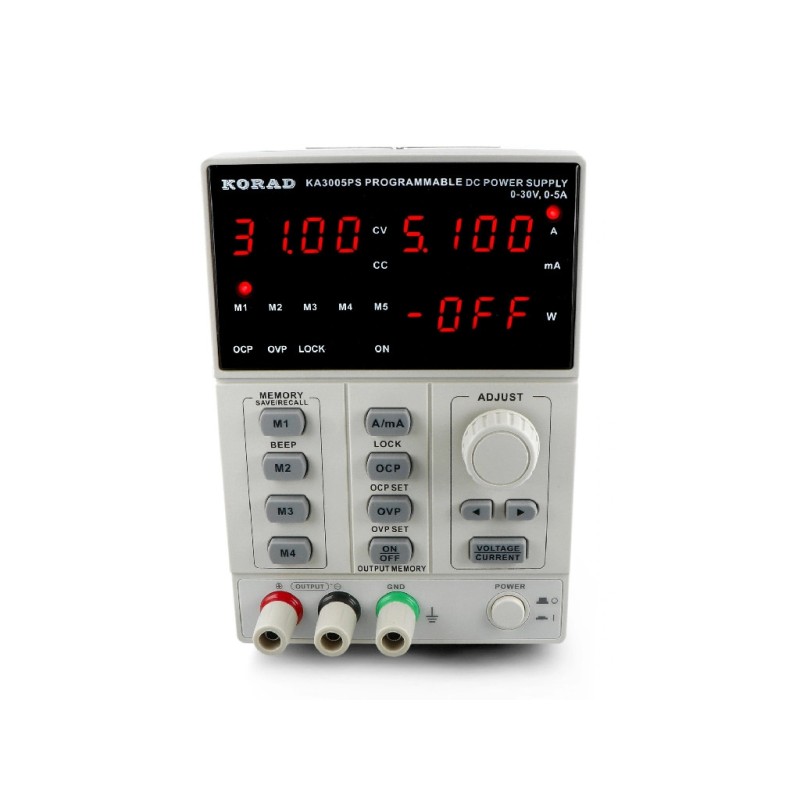

KORAD KA3005PS 30V 5A laboratory power supply with USB communication and power measurement
ID: 1200012
zł557.71
Tax included
zł453.42 tax excl.
This stabilized 30V/5A power supply with a USB interface and 5 power profile memory enables precise powering of electronic devices in CV and CC modes. It is ideal for service, laboratories, and when designing devices requiring precise voltage or current regulation. KORAD KA3005PS
Description
A stabilized laboratory power supply with continuously adjustable voltage from 0 to 30 V and current from 0 to 5 A. The transformer-based design ensures reliability and durability in professional applications. The device can operate in both CV (constant voltage) and CC (constant current) modes and can also function as a current source, distinguishing it from other models in its class. The power supply features a clear LED display that simultaneously displays voltage, current, and power, with current resolution down to three decimal places. Measurements are accurate to 10 mV/1 mA, and at currents below 0.5 A, to 0.1 mA.
An integrated USB port enable remote control from a computer and management of operating parameters. Five programmable memory profiles facilitate quick power configuration changes. The power supply is equipped with overvoltage and overload protection, as well as full short-circuit protection (OCP), which automatically reduces the output voltage to near zero. Applications include research and industrial institutes, the electronics industry, service centers and workshops, as well as technical education and hobby projects.
Features
- Voltage regulation 0–30 V
- Current regulation 0–5 A
- LED display: voltage, current, power
- Voltage measurement resolution 10 mV
- Current measurement resolution 1 mA / 0.1 mA
- Setting accuracy: voltage 10 mV, current 1 mA
- Operating modes: CV and CC
- OVP, OCP, OTP protection
- Current source function
- Memory for 5 power profiles
- USB connection and control software
- Voltage rise/fall time ≤100 ms
- Ripple: voltage ≤2 mVrms, current ≤3 mArms
- Quiet cooling fan
- Dimensions: 275 × 126 × 155 mm
- Weight: 4.3 kg
Included
- KA3005PS power supply
- Power cord
- Cables Connection
- USB cable
1200012
Data sheet
- Output voltage
- 0-30 V
- Output current
- 5A
- Number of channels
- 1
