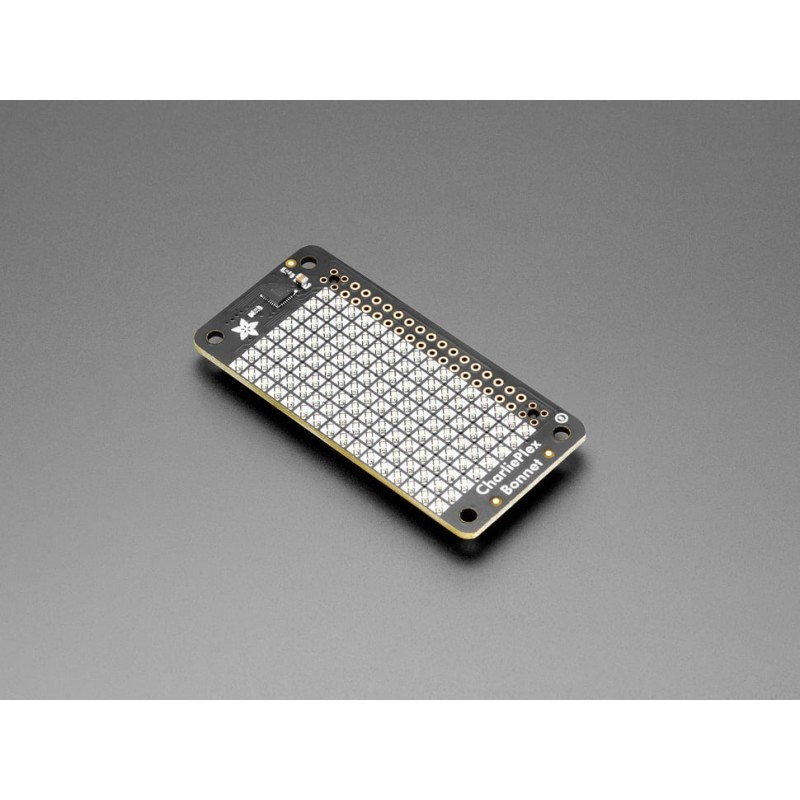

Main view
search
  • Main view
  • Top view
  • Bottom view
ID: 1198437
zł65.33
Tax included

zł53.11 tax excl.

This 40-pin GPIO module for the Raspberry Pi features 128 red LEDs arranged in a 16x8 grid. Using the IS31FL3731 driver communicating over the I2C bus, each LED can be independently controlled with 8-bit brightness control, enabling smooth animations and lighting effects. The module stores up to eight frames of animation in RAM and utilizes Charlieplexing technology, offering efficient control with a minimal number of pins. Adafruit 6115

24h
Available
Available quantity: 3
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

CharliePlex LED Matrix Bonnet is a compact lighting module designed for use with Raspberry Pi computers equipped with a 40-pin GPIO header. The board allows control of 128 red LEDs arranged in a 16×8 matrix, creating a bright and visually appealing display ideal for data visualization, animations, or lighting effects. The built-in IS31FL3731 LED driver communicates via the I2C interface, making setup and operation simple — only the SDA and SCL lines are required, which can be shared with other I2C devices. Each LED can be individually controlled with 8-bit brightness adjustment (256 levels), enabling smooth gradients and animation effects. The onboard RAM can store up to eight animation frames, which can be switched with a single command to create fluid and dynamic visual transitions. Using Charlieplexing technology, the module efficiently drives a large number of LEDs while minimizing GPIO pin usage. Powered by 3.3 V and featuring very low power consumption, it is ideal for portable and energy-efficient projects. The Adafruit CharliePlex LED Matrix Bonnet is a perfect choice for makers who want to add eye-catching lighting, status indicators, or animations to their Raspberry Pi projects in a simple and elegant way.

Features

  • LED layout: 16 × 8 (128 red LEDs)
  • LED driver: IS31FL3731 (I2C communication)
  • Brightness control: 8-bit (256 levels per LED)
  • Supports up to 8 animation frames stored in onboard RAM
  • Charlieplexing technology for efficient LED control
  • Power supply: 3.3 V
  • Compatibility: Raspberry Pi with 40-pin GPIO header
  • Dimensions: 65 × 30.6 × 5.5 mm
