LED stick with 10 individually addressable WS2812B RGB LEDs arranged in a line at 10mm spacing. A single data line controls the LEDs, while DIN and DOUT connections allow multiple WS2812B modules to be daisy-chained. The board operates from 5V and measures 80 × 10mm. Soldered 333056

24h
Available
Available quantity: 5

Description

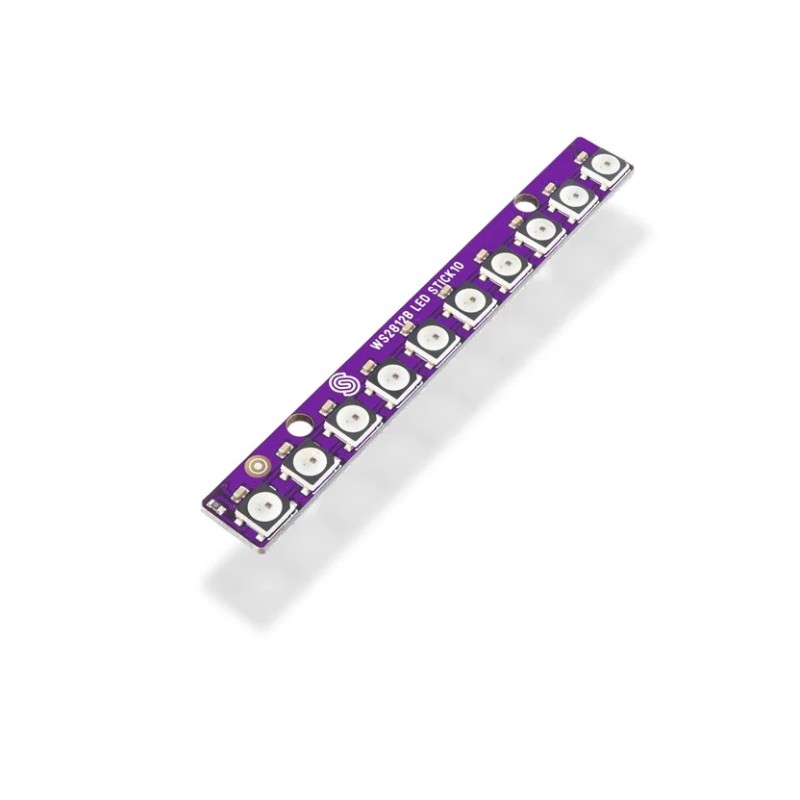

The device Smart LED WS2812B Stick10 by Soldered features 10 individually addressable WS2812B RGB LEDs arranged in a line. Each LED integrates red, green, and blue light sources with its own control circuit, allowing the color and brightness of each point to be controlled independently. The board can be used for multi-segment indicators, status signaling, decorative lighting, and lighting effects in electronic devices and microcontroller-based projects.

The LEDs are controlled through a single data line. The DIN pin receives data from a microcontroller, while DOUT passes the signal to the next module, allowing multiple sticks or other WS2812B modules to be daisy-chained. Each LED provides independent RGB channel control with 24-bit color representation.

The stick requires a 5V DC power supply. According to the manufacturer, each LED can draw up to 60mA at full white brightness. For all 10 LEDs, this corresponds to a theoretical maximum current consumption of approximately 600mA, so the power supply should be selected according to the configured brightness and the number of connected modules.

The LEDs use 5 × 5mm packages and are arranged at a 10mm pitch. Overall board dimensions are 80 × 10mm. The 3.2mm mounting holes are designed for M3 screws.

Features

  • LEDs
    • LED type: WS2812B RGB
    • Number of LEDs: 10
    • Individual addressing of each LED
    • Independent red, green, and blue channel control
    • Color representation: 24-bit RGB
    • Individual LED dimensions: 5 × 5mm
    • LED pitch: 10mm
  • Control and connections
    • Single-wire data control
    • DIN: data input
    • DOUT: data output for the next module
    • Support for daisy-chaining WS2812B modules
    • VCC: +5V power supply
    • GND: ground
  • Power supply
    • Supply voltage: 5V DC
    • Maximum current consumption per LED: 60mA
    • Theoretical maximum current consumption for 10 LEDs: 600mA
  • Mechanical parameters
    • Board dimensions: 80 × 10mm
    • Mounting hole diameter: 3.2mm
    • Mounting holes designed for M3 screws
1208265

Data sheet

Voltage
5 V
Colour
RGB
