Single individually addressable WS2812B RGB LED in a 5050 package, mounted on a circular 10mm diameter board. Color is controlled digitally through a single signal line, while the operating voltage is 5V. The manufacturer specifies a maximum current consumption of 60mA per pixel. Soldered 333054

Delivery date unknown
Out-of-Stock

Description

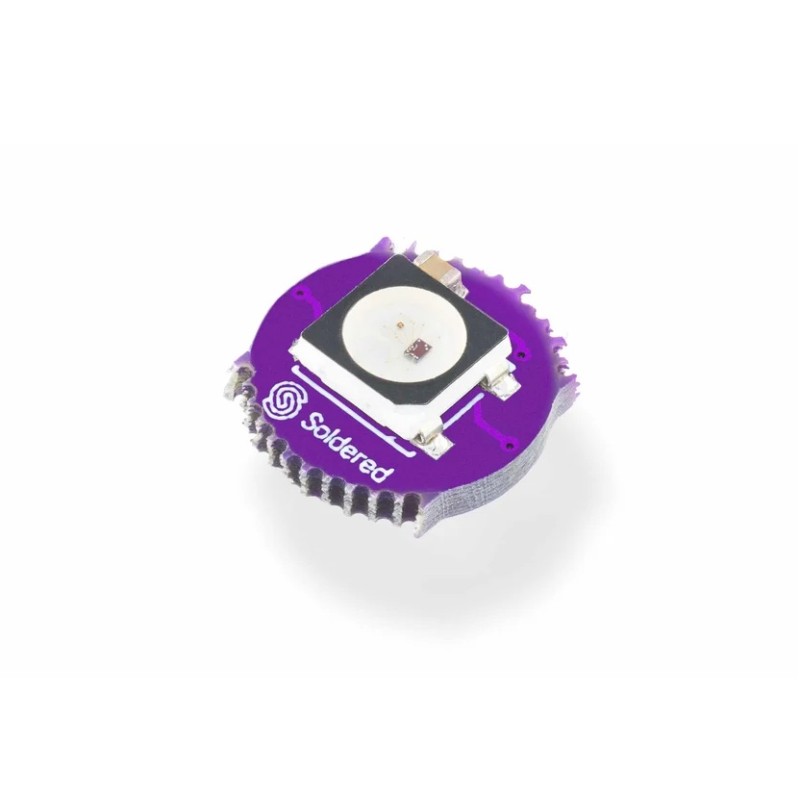

The device Smart LED WS2812B Pixel by Soldered features a single WS2812B RGB LED in a 5050 package with an integrated control circuit. Independent control of the red, green, and blue channels provides a wide range of colors without requiring separate PWM outputs for each channel. The board can be used as a status indicator, signaling element, user interface indicator, or individual light point in microcontroller-based projects.

The LED is controlled digitally through a single signal line. The integrated WS2812B controller receives data defining the intensity of individual RGB channels, eliminating the need for the microcontroller to control three LED channels directly. The module can be used with Arduino, ESP32, Raspberry Pi, and other controllers equipped with a suitably configured digital output.

The operating voltage is 5V DC. According to the manufacturer, maximum current consumption is 60mA for a single pixel at full white brightness. Power requirements depend on the configured brightness and LED operating conditions.

The WS2812B LED uses a 5050 SMD package measuring 5 × 5mm. The circular board measures 10mm in diameter, allowing a single addressable RGB light point to be integrated into compact electronic devices.

Features

  • LED
    • Type: WS2812B RGB
    • Number of LEDs: 1
    • Individually addressable RGB pixel
    • Integrated control circuit
    • LED package: 5050 SMD
    • LED dimensions: 5 × 5mm
  • Control
    • Digital color and brightness control
    • Single-wire signal control
    • Independent RGB channel control
  • Power supply
    • Operating voltage: 5V DC
    • Maximum current consumption: 60mA/pixel
  • Mechanical parameters
    • Board shape: circular
    • Board diameter: 10mm
1208263

Data sheet

Voltage
5 V
Colour
RGB
