ID: 1191984
5055652926579

A compact, long-range wireless communication device offering a range of up to 5 km using LoRa technology with the SX1268 chip operating at 868 MHz. It features low power consumption, a wide operating temperature range, and broad compatibility with PCs, Raspberry Pi, and other platforms, making it ideal for distributed IoT systems and industrial applications. SB Components 26579

Retired
Kamami is the official distributor of SB-Components modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

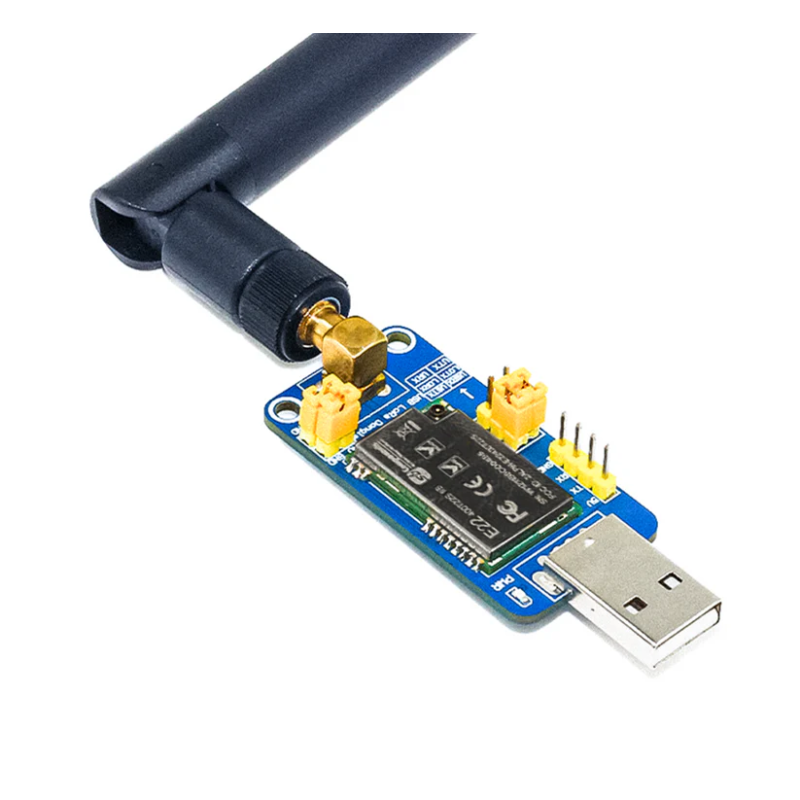

The USB to LoRa Dongle is a powerful and versatile device enabling long-range wireless communication. With an exceptional range of up to 5 km and easy integration, it allows seamless communication with devices across a wide range of applications. The dongle utilizes modern LoRa technology based on the SX1268 chip, providing stable and interference-resistant data transmission. The device operates at a frequency of 868 MHz. Thanks to its low power consumption, it is ideal for battery-powered applications, ensuring long-lasting operation in harsh conditions. The design meets industrial standards and can operate within a wide temperature range from -40 to 85°C. The USB to LoRa Dongle is compatible with PCs, platforms such as Raspberry Pi, Rock, BeagleBone, and microcontrollers, allowing easy extension of existing system functionality. This reliable and easy-to-use solution enables long-range communication without the need for complex infrastructure.


1. USB Type A 5. SMA Connector
2. Power LED 6. UART Selection
3. LoRa Module 7. LoRa UART Pins
4. LoRa Configuration 8. CH340 IC

Features

  • Communication range up to 5 km
  • Maximum transmission power 160 mW, software adjustable
  • ISM band support: 868 MHz
  • Air data rate: 0.3 kbps to 62.5 kbps
  • LoRa technology based on SX1268 chip
  • Hardware power consumption reduced by 40%, software by 35%
  • Power supply range: 2.1 V – 5.5 V (optimal operation above 3.3 V / 5 V)
  • Industrial design for operation in temperatures from -40 to 85°C
  • Mounting options: IPEX connector or soldering holes
  • Dimensions: 69.1 x 25.2 mm
1191984

Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20

Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
