PCB Near-Field Probes set – Zeenko
ID: 1201369
5902186331273
zł45.21
Tax included
zł36.76 tax excl.
The Zeenko near-field probe set based on a 4-layer PCB enables precise detection of EMI sources in electronic circuits. When used with spectrum analyzers such as tinySA ULTRA, it provides effective electromagnetic diagnostics without the need for external amplifiers. An ideal solution for analyzing and eliminating interference in electronic systems.
Description

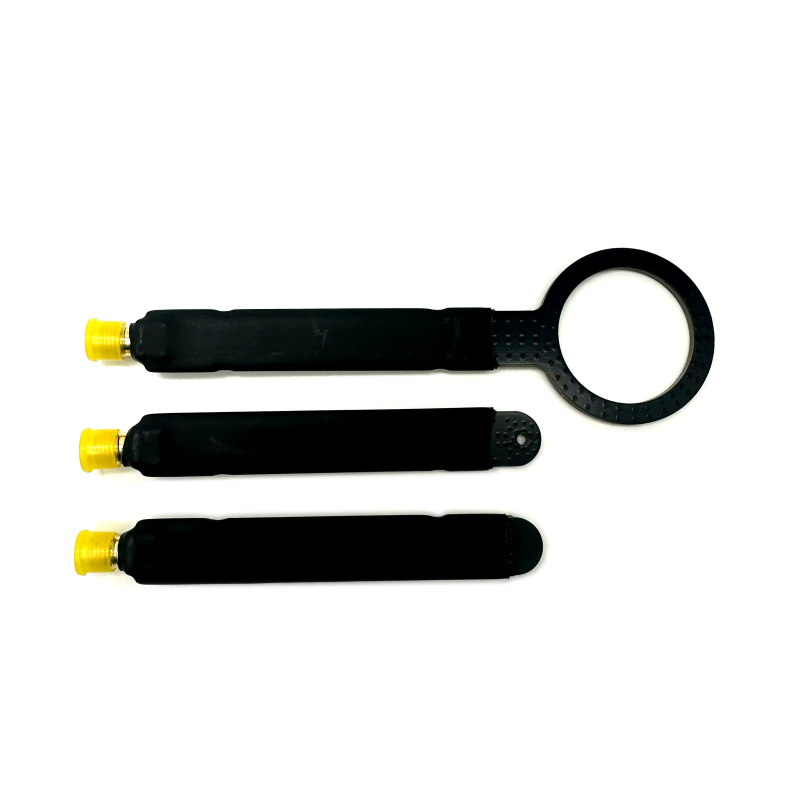

The Zeenko near-field probe set is designed for detecting electromagnetic interference (EMI). The set includes two magnetic field (H-Field) probes with diameters of 28 mm and 4.5 mm, as well as one electric field (E-Field) probe. The probes are made using 4-layer PCB (FR-4) technology with stripline routing in the inner layer and shielding via copper outer layers, which significantly improves suppression of unwanted coupling compared to 2-layer designs.
In practice, the large H-Field probe is used for coarse localization of the interference source, while the smaller one allows precise narrowing of the area and identifying the exact point of magnetic emission. When used with spectrum analyzers such as the tinySA ULTRA, the probes enable effective and efficient EMI source localization and diagnostics.
Properties
- PCB technology: 4-layer FR-4 laminate
- H-Field probe – diameter: 28 mm
- H-Field probe – diameter: 4.5 mm
- E-Field probe – for electric field detection
- Stripline placement: inner layer
- Shielding layers: copper on outer layers
- Reduced coupling and crosstalk thanks to shielding
- Compatibility: tinySA ULTRA and other spectrum analyzers
- Can operate without an external LNA (when using the internal LNA in tinySA ULTRA)
- Recommendation: when using an external LNA, the internal LNA in the analyzer should be disabled
Included
- H-Field probe (28 mm)
- H-Field probe (4.5 mm)
- E-Field probe
1201369
Data sheet
- Interface
- nie dotyczy
- Type of sensor
- inny
- Power supply voltage
- nie dotyczy
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
