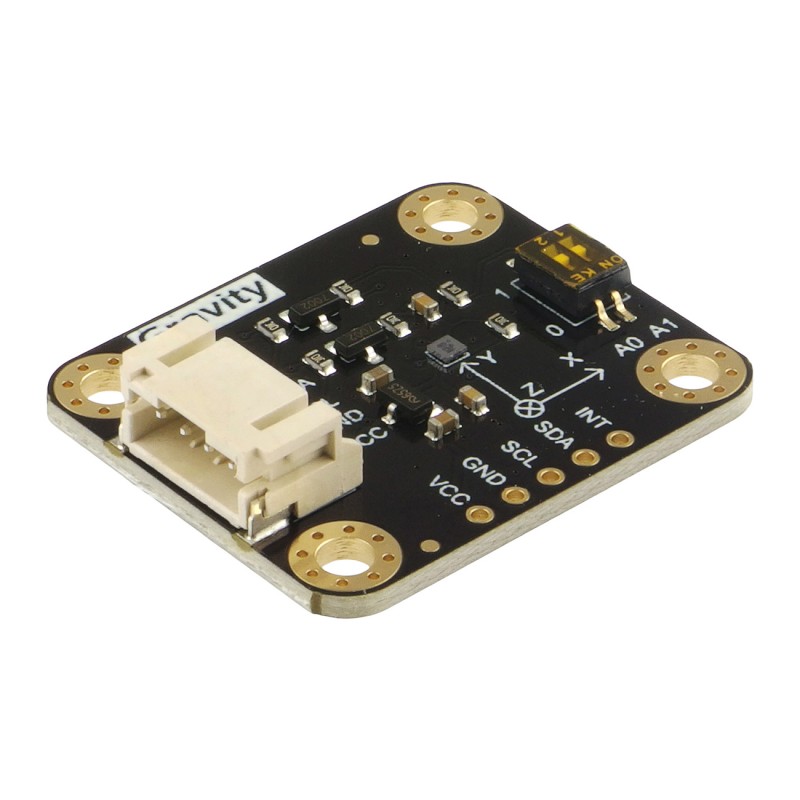

Gravity: BMM150 Triple Axis Magnetometer - module with 3-axis magnetometer
ID: 1182939
5902186310780
zł40.47
Tax included
zł32.90 tax excl.
A module with a 3-axis magnetometer based on the BMM150 chip. It communicates via an I2C interface. DFRobot SEN0529
Description
The BMM150 3-axis magnetometer module, which allows magnetic field measurements in the range of ±1300 μT (x- and y-axis) and ±2500 μT (z-axis) with a resolution of 0.3 μT. Based on Bosch's proprietary FlipCore technology, it provides absolute orientation information with high measurement accuracy. Thanks to its small size, it is particularly suitable for course determination in drones. The module communicates via the I2C interface (Gravity connector) and is powered by 3.3 V to 5 V. The user can configure the I2C address using two jumpers, so up to 4 modules can be connected on a single bus. Full documentation of the module with examples of use is available on the product page.
Features
- Measurement range: ± 1300 μT (x, y axis), ± 2500 μT (z axis)
- Resolution: 0.3 μT
- Accuracy: 30 μT
- I2C interface (Gravity connector)
- Programmable interrupt
- Zero-B offset: ±40μT/±2μT
- Nonlinearity: ＜1%FS
- Low noise: 0.3-1.4μT
- I2C address: 0x13
- Start time: 3ms
- Supply voltage: 3.3 V to 5 V
- Current consumption: up to 1.7 mA
- Operating temperature: from -40 to 85°C
- Dimensions: 32 x 27 mm
Kit contains
- Gravity: BMM150 Triple Axis Magnetometer
- Gravity-4P I2C/UART cable
- 5-pin male goldpin connector
1182939
Data sheet
- Interface
- I2C
- Type of sensor
- BMM150
- Power supply voltage
- 3,3 - 5 V
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
