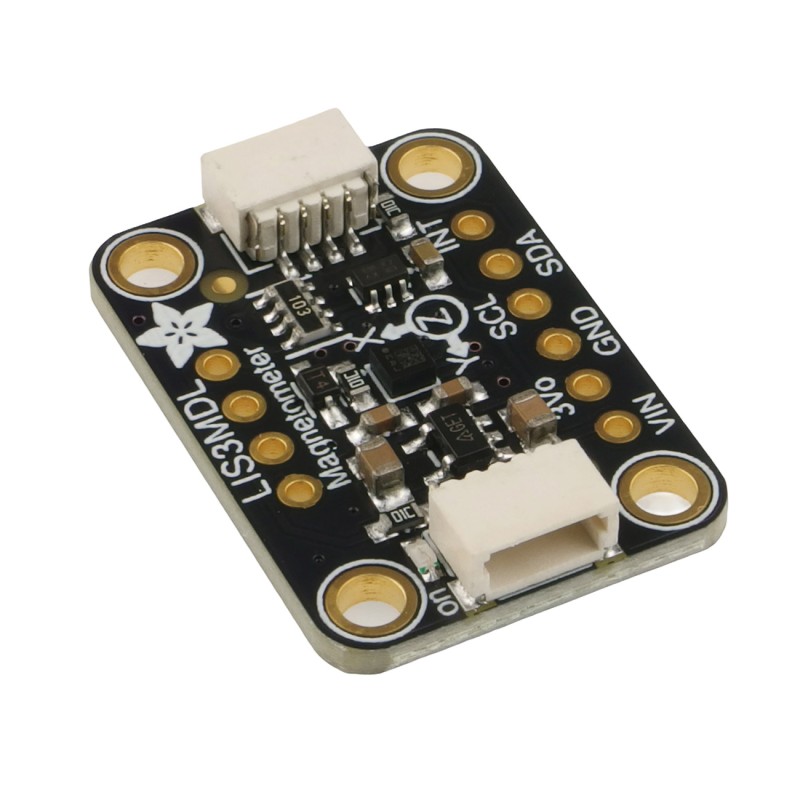

STEMMA QT Triple-axis Magnetometer LIS3MDL - module with a 3-axis magnetometer
ID: 587254
5906623430291
€12.60
Tax included
€10.25 tax excl.
Module with a 3-axis magnetic field sensor LIS3MDL. Equipped with a STEMMA QT connector, it communicates via the I2C interface. Adafruit 4479
Description
Module with a 3-axis magnetic field sensor LIS3MDL. It is dedicated to the detection of magnetic declination, but also works well for detecting the presence of small magnets. In combination with other sensors (accelerometer, gyroscope), it will be used to determine 3D orientation. The module has a configurable measuring scale of ±4/±8/±12/±16 and is powered with the voltage from 3.3 V to 5 V, and communication is via the I2C interface (STEMMA QT connector). Full documentation is available on the product page.
Features
- Measuring range: ±4/±8/±12/±16 gauss
- Update rate 0.625 to 1000 Hz
- Continuous and single conversion modes
- 16 bit data output
- Interrupt generator
- Self-test mode
- Supply voltage: 3 V to 5 V
- I2C interface
- I2C address: 0x1C or 0x1E
- Dimensions: 25.7 x 17.8 x 4.6 mm
Kit contains
- STEMMA QT Triple-axis Magnetometer LIS3MDL
- 16-pin goldpin male connector
587254
Data sheet
- Interface
- I2C
- Type of sensor
- LIS3MDL
- Power supply voltage
- 3 - 5 V
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
