- New

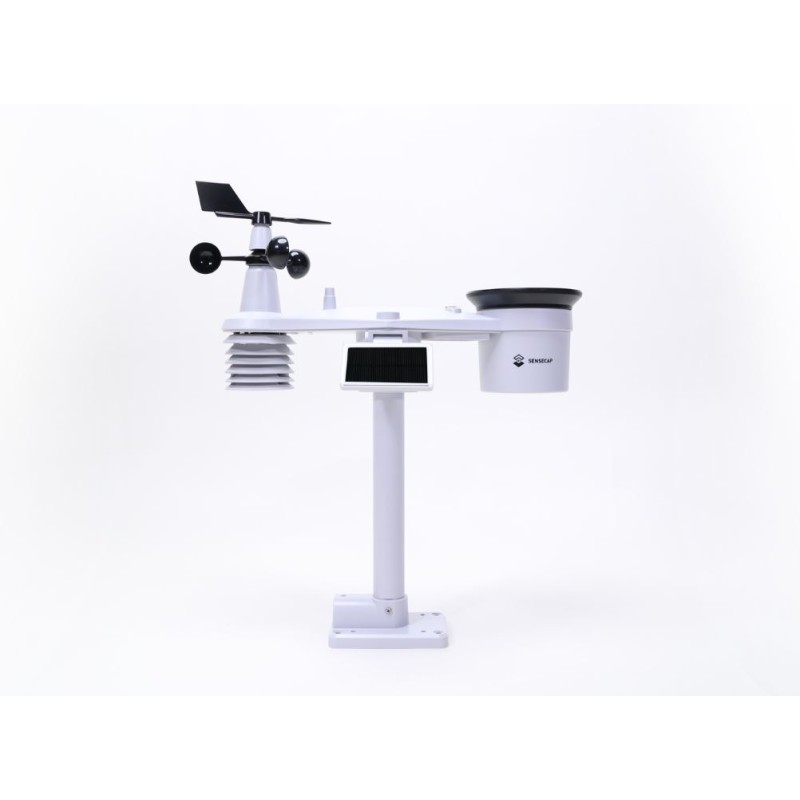

SenseCAP S2120 8-in-1 LoRaWAN weather sensor - Seeed Studio 101990961
ID: 1182556
zł1,179.00
Tax included
zł958.54 tax excl.
Outdoor 8-in-1 LoRaWAN weather sensor designed to measure air temperature, humidity, barometric pressure, wind speed and direction, rainfall intensity, light intensity, and UV index, intended for long-term environmental monitoring. SenseCAP S2120
Description

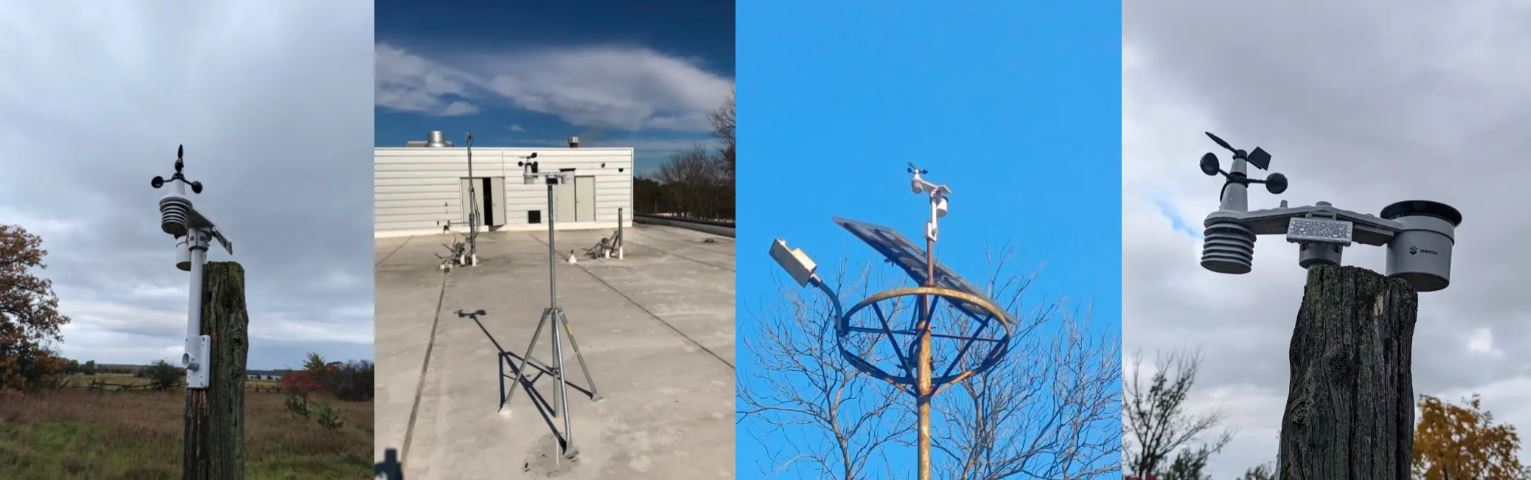

SenseCAP S2120 is designed for precise, local monitoring of weather conditions in applications such as gardens, agriculture, meteorology, urban environmental monitoring, and industrial installations.

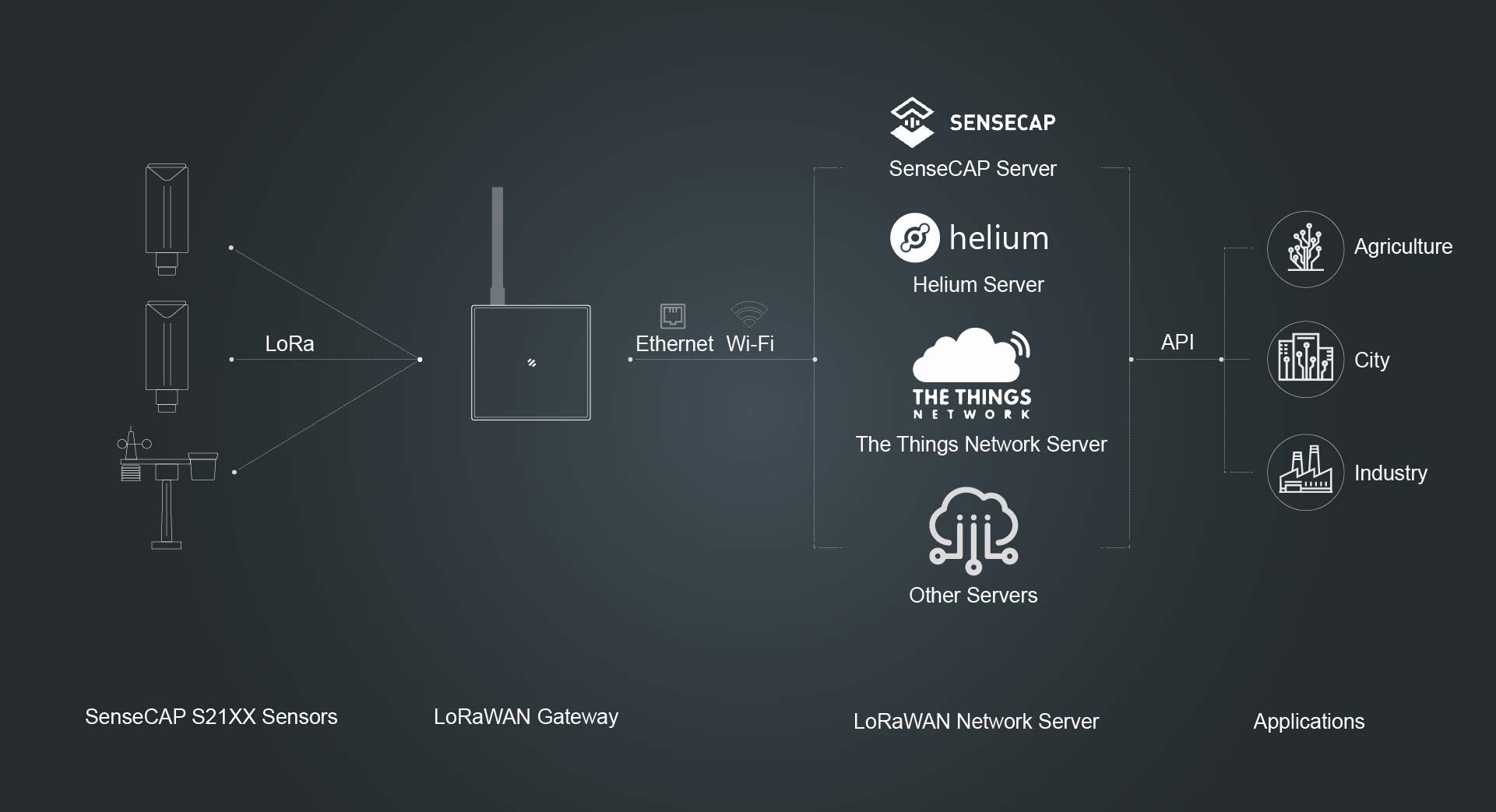

The device collects data from eight environmental sensors and transmits it wirelessly over LoRaWAN networks, enabling integration with widely used network servers and data platforms.
The sensor supports measurements of air temperature and humidity, barometric pressure, wind speed and direction, rainfall intensity, light intensity, and UV index. The construction is adapted for operation in harsh outdoor environments, including strong sunlight, rainfall, and dusty conditions. Power is supplied by a solar panel supported by AA batteries, allowing multi-year operation with minimal maintenance.
A built-in Bluetooth module enables fast configuration of operating parameters and the LoRaWAN frequency plan using a mobile application. Configuration is performed locally without the need for programming, simplifying field deployment. SenseCAP S2120 operates with global LoRaWAN networks, including private installations and operator-managed networks, allowing flexible adaptation to existing infrastructure.
Features
- Product type: 8-in-1 LoRaWAN weather sensor
- Measured parameters: air temperature, air humidity, barometric pressure, wind speed, wind direction, rainfall intensity, light intensity, UV index
- Communication protocol: LoRaWAN v1.0.3 Class A
- Supported frequency bands: EU868, US915, AU915, AS923, IN865, KR920, RU864
- Communication range: 2–10 km depending on infrastructure and environment
- Configuration: Bluetooth via mobile application
- Microcontroller: WM-LR1110
- Transmit power: up to 21 dBm
- LoRa sensitivity: -141 dBm at SF12 BW125 kHz
- Power supply: 0.5 W solar panel and AA batteries
- Number of batteries: 3 x AA in internal battery box or 6 x AA in external battery box
- Estimated battery life: up to 2 years at 1 h uplink interval
- Operating temperature range: -20°C to 60°C with alkaline batteries, -40°C to 60°C with lithium batteries
- Operating humidity range: 0–99%RH
- Protection rating: IPX6
- Device weight: 1.5 kg
- Certifications: CE, FCC, RoHS
Kit includes
- SenseCAP S2120 weather sensor

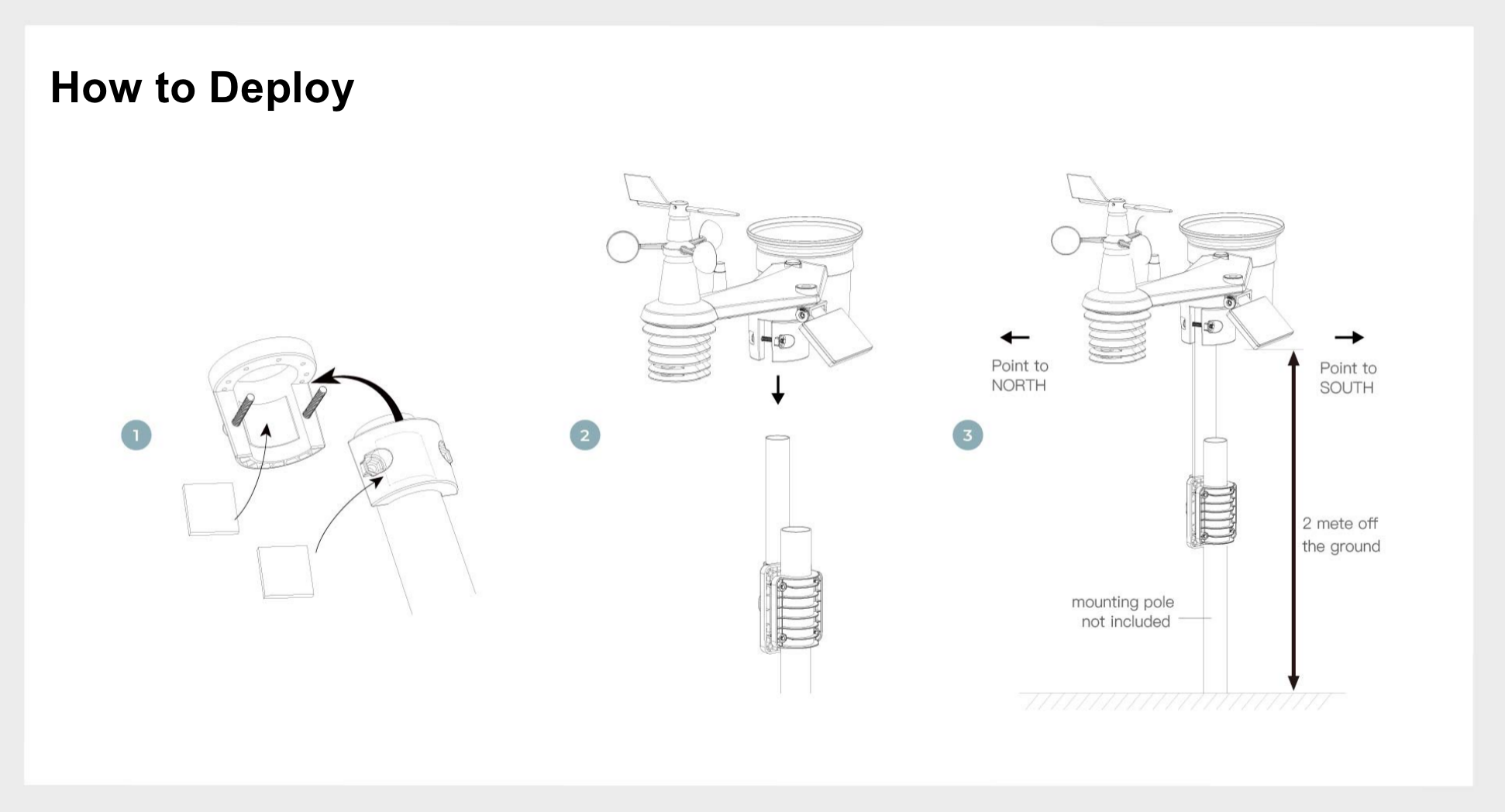

- Pole mounting bracket
- Mounting clamp
- Plastic pole
- Set of screws, nuts, and washers
- External battery box with 2 m cable (batteries not included)
1182556
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
