ID: 1203081
5902186333741
zł202.85
Tax included

zł164.92 tax excl.

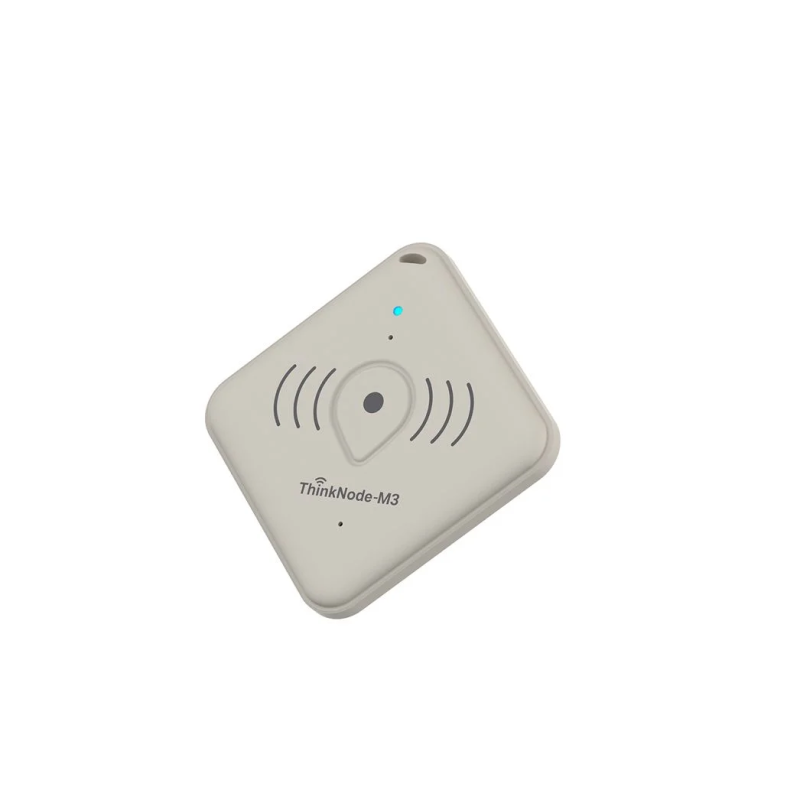

ThinkNode M3 tracker based on the Meshtastic protocol, equipped with GPS, WiFi, BLE and LoRa 868MHz, designed for indoor and outdoor positioning with Meshtastic app support. Elecrow ThinkNode M3

24h
Available
Available quantity: 10

Description

ThinkNode M3 is a compact tracker designed for operation in Meshtastic networks, enabling communication and positioning without the need for cellular networks or internet infrastructure. The device integrates the nRF52840 microcontroller, LR1110 LoRa transceiver and a high-sensitivity GNSS module, providing accurate positioning and low-power long-range data transmission.

The tracker supports GPS, GLONASS, GALILEO and BDS positioning systems and additionally uses BLE and WiFi interfaces for improved indoor location accuracy. The IP66-rated enclosure and magnetic charging system allow operation in harsh environmental conditions. ThinkNode M3 is suitable for outdoor activities, emergency and rescue operations, vehicle tracking, logistics and IoT projects requiring independent positioning and communication.


Features

  • Control system and communication
    • Microcontroller: nRF52840
    • LoRa chip: LR1110
    • LoRa frequency: 868 MHz
    • Communication range: 5-6 km
    • Maximum transmission power: +20 dBm
    • Receiver sensitivity: -140 dBm
    • Data rate: 1.76-62.5 Kbps
    • Bluetooth: Bluetooth 5.0
    • Meshtastic support
  • Positioning and location
    • GNSS systems: GPS, GLONASS, GALILEO, BDS
    • Positioning accuracy: <1.5 m CEP50
    • GNSS sensitivity: -148 dBm cold start, -156 dBm hot start
  • Sensors
    • Temperature sensor
    • Humidity sensor
    • Accelerometer
  • Operating functions
    • Operating modes: Standby, normal, trigger
    • Reporting interval: Configurable
    • Battery level reporting
    • SOS function
    • Offline data buffering
    • Configurable sensor alarm thresholds
  • Electrical characteristics
    • Battery capacity: 770 mAh
    • Power supply: 5 V DC
    • Charging method: Magnetic charging
    • Operating time: Up to 18 h with 1 min transmission interval
  • Mechanical characteristics
    • Protection rating: IP66
    • Antenna: Internal GNSS, LoRa, WiFi, BLE
    • Enclosure material: PC+ABS
    • Dimensions: 64 x 64 x 10 mm
    • Base dimensions: 68 x 68 x 10.2 mm
    • Weight: 40 g
    • Operating temperature: -20°C ~ 60°C
  • Certificates
    • CE
    • FCC

Kit includes

  • 1x ThinkNode M3 tracker
  • 1x Charging cable
  • 1x Mounting base with adhesive pad
  • 1x Mounting hardware set
  • 1x Lanyard
  • 1x User manual
