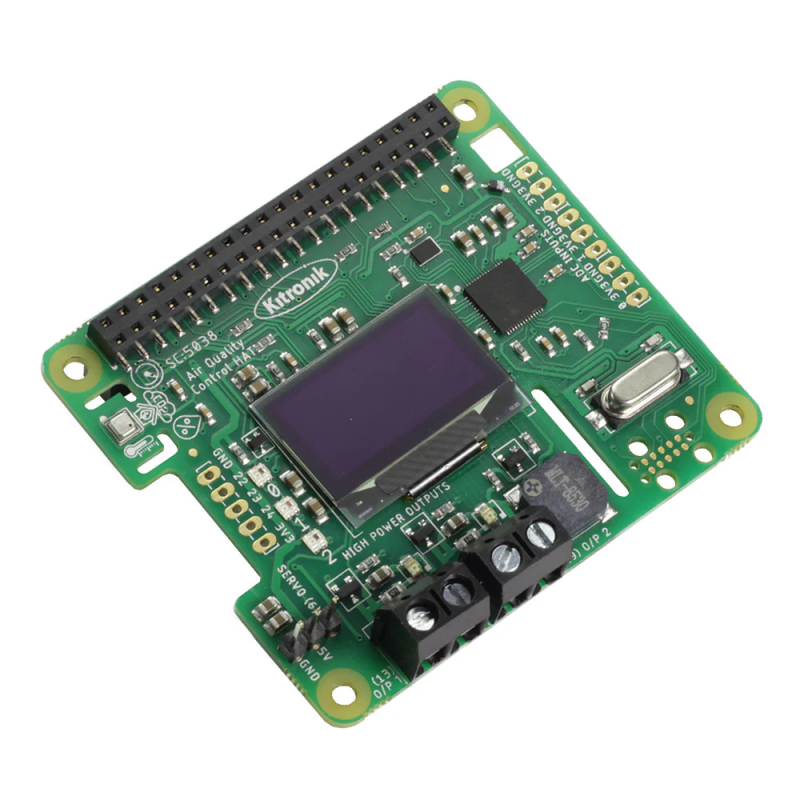

Kitronik Air Quality and Environmental Control HAT - air quality sensor module for Raspberry Pi
ID: 1198618
zł167.55
Tax included
zł136.22 tax excl.
An advanced shield for the Raspberry Pi that allows you to monitor temperature, pressure, humidity, air quality, and eCO2 levels using the BME688 sensor. Data can be viewed on the built-in 128x64 OLED screen, and is signaled by three ZIP LEDs and a buzzer. The board also offers high-current outputs up to 1A, a servo output, and analog inputs, allowing you to connect additional components and sensors. Kitronik 5038
Description
Kitronik Air Quality and Environmental Control HAT is an advanced expansion board for Raspberry Pi, enabling monitoring, logging, and responding to environmental data. With this HAT, Raspberry Pi becomes a complete measurement hub for real-time data analysis and visualization. The board is equipped with a BME688 sensor, which measures temperature, pressure, humidity, air quality index, and eCO2 levels. Data can be displayed on the built-in 128x64 OLED screen and indicated via 3 ZIP LEDs and a piezo buzzer. The device is fully Raspberry Pi HAT compatible and works with all models featuring a 40-pin GPIO header (Pi 2, 3, 4, 5, Zero, Zero 2).
Power is supplied directly from the GPIO header (5V or 3.3V depending on the section requirements). Additionally, the board provides high-power outputs (up to 1A), a servo output, and three RP2040 ADC analog inputs, making it highly versatile for various applications. Extra sensors, servos, motors, or heating elements can be connected to expand system functionality. Thanks to the RP2040 RTC and Pi memory, the HAT is perfect for environmental data logging. Combined with the PyPi library and sample projects available on GitHub, getting started is quick and easy. Installation is done with a single command:
pip install KitronikAirQualityControlHAT
This solution is ideal for educational, hobby, or research projects where precise monitoring of environmental parameters is essential.
Features
- Monitoring of temperature, pressure, humidity, air quality, and eCO2 (BME688 sensor)
- Built-in 128x64 OLED display for data presentation
- 3 ZIP LEDs and piezo buzzer for signaling
- 2 high-current outputs (GPIO13 and GPIO19, up to 1A)
- Servo output (GPIO6) and buzzer control (GPIO26)
- 3 RP2040 ADC analog inputs (ADC0, ADC1, ADC2)
- Additional GPIO pins: GPIO22, GPIO23, GPIO24 + 3.3V and GND
- Powered via Raspberry Pi GPIO header (5V or 3.3V)
- Compatible with Raspberry Pi 2, 3, 4, 5, Zero, Zero 2
- Available libraries on PyPi and examples on GitHub
- Dimensions: 65 x 56.5 x 10.2 mm
1198618
Data sheet
- Compatible with
- Raspberry Pi 5/4/3/2/1 A/B, Zero/Zero 2 H/WH
