ID: 1188422
5902186300293
zł200.71
Tax included

zł163.18 tax excl.

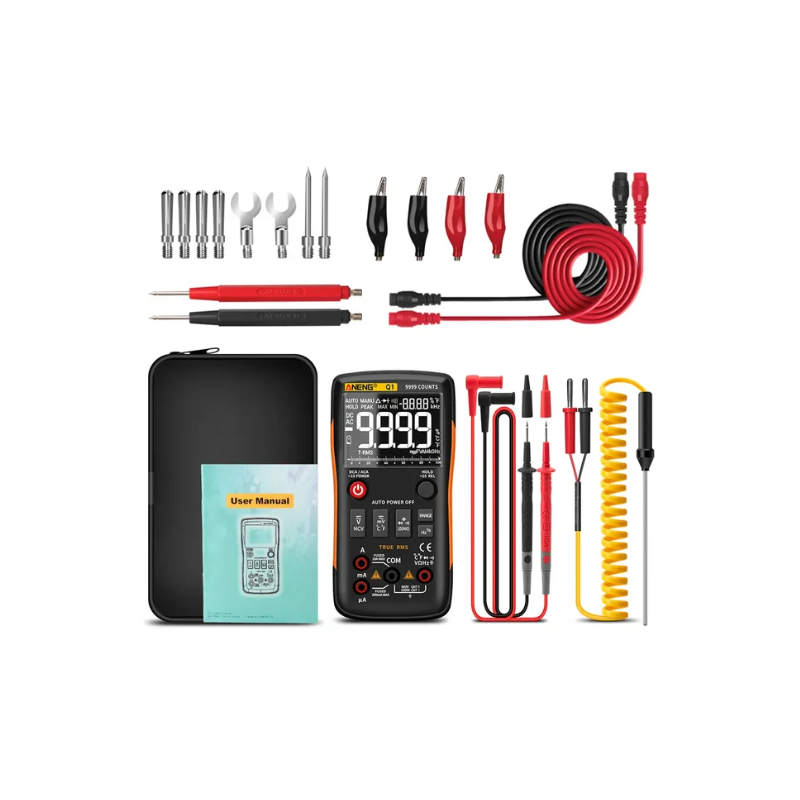

The Aneng Q1 is a digital multimeter that enables measurements of AC and DC current, AC and DC voltage, temperature and resistance. The kit includes the multimeter, measuring leads, a temperature sensor, a storage bag and a 16-piece measurment set.

24h
Available
Available quantity: 3

Description

The Aneng Q1 is a multimeter with a 4-digit display, allowing measurement of both AC and DC current, AC and DC voltage. It also facilitates measurements of temperature, resistance and diode checking. Equipped with true RMS, NCV measurement and automatic range switching. The data recording function adds to the ease of working with the device. Screen and controls are backlit.

Features

  • Large backlit 4-digit display with a range of 9999
  • Smaller backlit 4-digit display with a range of 9999
  • Measurement of current and voltage (DC and AC)
  • Measurement of temperature, resistance, diodes
  • NCV measurement mode
  • Data recording capability (measurment hold)
  • Automatic measurement range switching
  • Auto power-off function for energy efficiency
  • Overload protection
  • Dimension 146x74x34mm

Includes

  • 1xMultimeter
  • 1xSet of measurement leads
  • 1xTemperature sensor
  • 1xUser manual
  • 1xMultimeter carrying bag
  • 16xMeasurment set components
1188422

Data sheet

Zakres pomiarowy napięcia DC
200mV/2000mV/20V/200V/1000 V
Zakres pomiarowy napięcia AC
600mV/6V/60V/600V/1000V
Zakres pomiarowy natężenia DC
200μA/2mA/20mA/200mA/10A
Zakres pomiarowy natężenia AC
600μA/6000μA/60mA/600mA/10A
Zakres pomiarowy rezystancji
100 MΩ
Zakres pomiarowy pojemności
9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF
Zakres pomiarowy częstotliwości
40 Hz - 1 KHz
Pomiar temperatury
Tak
Regulacja zakresu pomiarowego
Automatyczna
True RMS
Tak
Funkcja Hold
Tak
Tester ciągłości obwodu
Brak
Tester diod
Tak
Pomiar hFE tranzystorów
Nie
Buzzer
Nie
Wskaźnik rozładowanej baterii
Nie
Automatyczny wyłącznik
Tak
Podświetlenie wyświetlacza
Tak
Battery type
inny
Length
146 mm
Width
74 mm
Thickness
34 mm
Weight
Other
