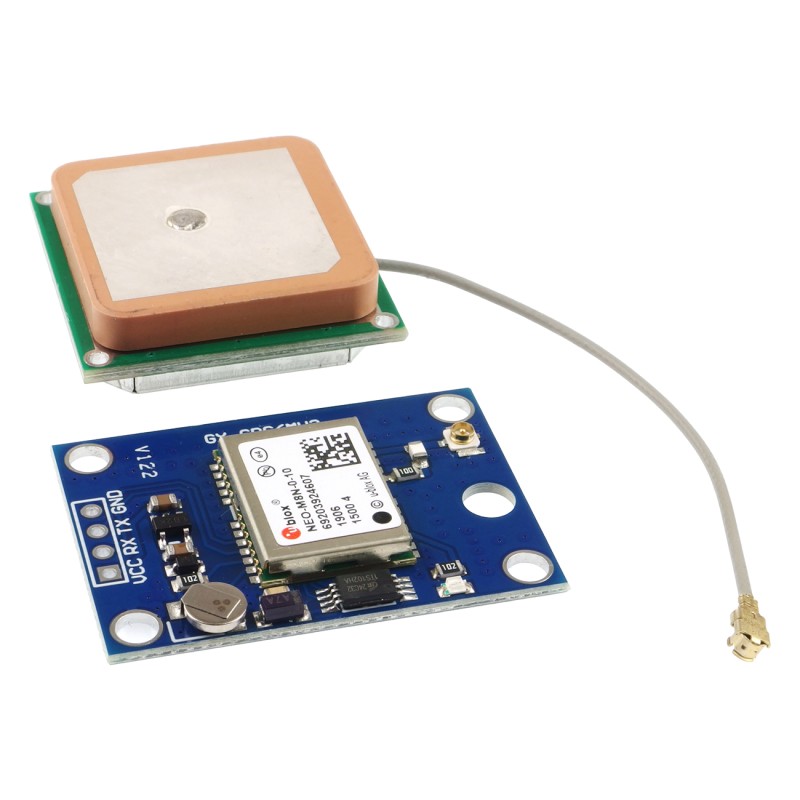

Ublox GYGPSV1 NEO-8M – GPS module
ID: 1199860
5902186329645
zł47.97
Tax included
zł39.00 tax excl.
Ublox GYGPSV1 NEO-8M is a GPS module with a ceramic antenna, EEPROM memory, and a backup battery, providing stable signal reception and the ability to save configuration. It is suitable for robotic projects, drones, and navigation systems, offering easy integration with microcontrollers and testing software.
Description
GPS module based on the Ublox NEO-8M receiver, designed for precise position determination in navigation systems, robotics, drones, and IoT applications. Equipped with a 25×25 mm ceramic antenna, it provides high sensitivity and stable signal reception. The built-in EEPROM memory allows saving settings, and the backup battery retains configuration data after power is disconnected. LEDs indicate operating status and signal reception. The module is compatible with popular flight controllers and PC GPS testing software.
Properties
- Model: GYGPSV1 NEO-8M
- GPS chip: Ublox NEO-8M
- Supply voltage: 3.0–5.0 V DC
- Antenna: ceramic, 25×25 mm
- Memory: EEPROM for saving settings
- Backup battery: yes (backup data)
- Status indicator: signal status LED
- Mounting hole diameter: 3 mm
- Default UART baud rate: 9600 bps
- Communication interface: UART (TX, RX)
- Compatibility: flight controllers, Arduino, Raspberry Pi, and other microcontrollers
- Functions: reception of location data (NMEA), compatibility with GPS testing software
1199860
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
